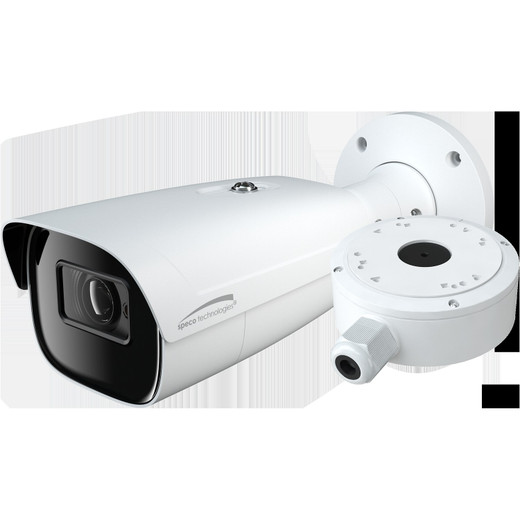

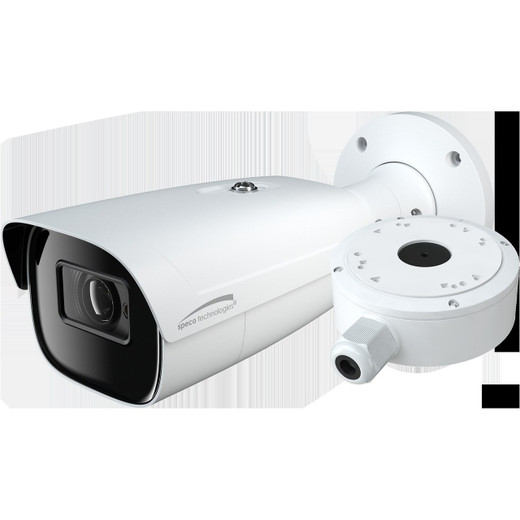

Speco Technologies O6B1M 6MP IP Bullet Camera
Overview
The Speco Technologies O6B1M is a 6MP wired IP bullet camera engineered for outdoor surveillance deployments requiring high resolution, extended infrared range, and onboard analytics. This camera delivers 3296×1856 native resolution at 30fps with true day/night imaging and a motorized 2.8-12mm lens, making it suitable for mid-range to long-range monitoring applications. The O6B1M operates on PoE (802.3af) or 12V DC power and includes a weather-sealed junction box for field installations.
When this is the correct choice
The O6B1M is the right selection for outdoor perimeter surveillance, parking areas, and facility access points where vandal resistance and infrared night vision are critical. The IP67 environmental rating and IK10 vandal-resistant housing withstand harsh weather and physical impact. The motorized zoom lens allows integrators to adjust field of view during commissioning without returning to the site. Line crossing and face detection analytics enable basic event filtering at the edge, reducing false alerts and bandwidth consumption. Select the O6B1M when you need a durable, PoE-powered outdoor bullet with solid 6MP resolution and built-in motion intelligence.
When to choose a different model
If your deployment requires fixed-angle installation and cost is the primary driver, a fixed-lens 6MP bullet may offer better value. If the site demands ultra-long-range IR (beyond 230 feet) or advanced deep-learning analytics, consider higher-tier models with larger sensor platforms or dedicated edge processing. For indoor-only applications without physical impact concerns, a compact fixed-dome camera may be more discreet and cost-effective.
Optics and field of view
The O6B1M ships with a motorized varifocal 2.8-12mm lens, providing a horizontal field of view from approximately 90 degrees (at 2.8mm) to 25 degrees (at 12mm). The motorized lens allows remote or manual focus adjustment in the field, supporting quick re-aiming during setup. This flexibility is valuable when exact mounting position is difficult to predict during design phase.
Imaging performance and low light
The 1/2.5-inch CMOS sensor captures 6MP (3296×1856) images at 30 frames per second. True day/night operation with infrared LEDs delivers 230 feet of night vision range, enabling detection and identification of subjects in complete darkness. True WDR (Wide Dynamic Range) processing balances highlight and shadow detail in mixed-lighting scenes, such as entry points with direct sunlight and shadowed areas. Operating temperature range of -22°F to 140°F ensures reliable operation in cold climates and direct sunlight exposure.
Analytics and edge capabilities
The O6B1M integrates line crossing and face detection analytics on the camera itself. These edge-based algorithms reduce the load on central VMS servers and enable smarter event-driven recording, triggering alerts only when configured activity occurs. Line crossing is useful for perimeter monitoring and restricted-area detection; face detection supports access control and forensic search workflows.
Video encoding and streaming
Video compression options include H.265, H.264, and MJPEG, giving integrators flexibility in bandwidth optimization and VMS compatibility. H.265 encoding reduces file size by approximately 50% compared to H.264 at equivalent quality, extending storage life on DVRs and NVRs. All streams support 30fps capture at 6MP resolution.
Network and security
The O6B1M supports ONVIF Profile I, ensuring broad compatibility with third-party VMS platforms and network cameras from other manufacturers. Wired PoE connectivity eliminates the need for separate power runs, simplifying cabling and reducing installation time. The camera integrates cleanly into standard IP surveillance networks.
Environmental and durability ratings
IP67 rating provides complete dust protection and submersion tolerance up to 1 meter for 30 minutes, suitable for roof-mounted and semi-exposed installations. IK10 vandal rating resists impacts up to 20 joules, protecting against deliberate tampering and accidental strikes. These ratings are particularly valuable in public-facing environments, transit facilities, and outdoor retail locations.
Power and installation notes
The O6B1M operates via PoE (802.3af) or 12V DC power. PoE simplifies deployment by combining power and data over a single network cable; 12V DC option accommodates legacy power infrastructure or installations where PoE is unavailable. A weather-sealed junction box is included to protect cable connections and power terminals in outdoor environments. The 1.52-pound weight is manageable for most standard outdoor camera mounts.
What is included
- Speco Technologies O6B1M 6MP IP bullet camera body
- Motorized 2.8-12mm varifocal lens

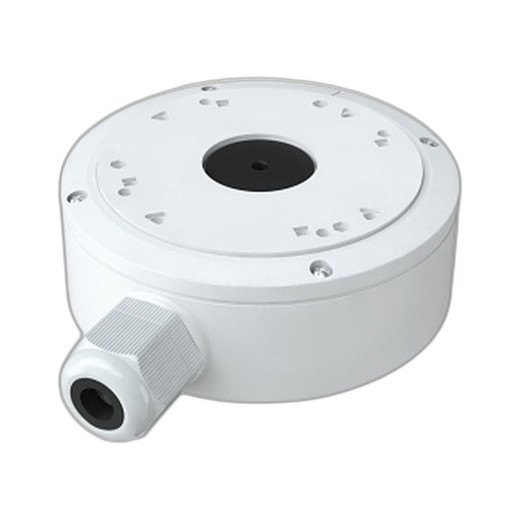

- Weather-sealed junction box
- Mounting hardware (standard camera bracket)
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have specified the Speco O6B1M in several outdoor perimeter and parking lot installations, and it delivers solid performance at a competitive price point. The motorized lens is genuinely useful during commissioning—you can adjust focus and zoom remotely rather than climbing a ladder twice. The 230-foot IR range is sufficient for most facility-scale outdoor coverage, and the IP67/IK10 ratings hold up well in seasonal weather and moderate vandalism scenarios.
Technical Highlights:
- 6MP 1/2.5" sensor at 30fps: Captures license plates and facial detail at typical surveillance distances (15–40 meters).
- Motorized 2.8-12mm lens: Eliminates field-of-view guesswork; adjust zoom and focus during site commissioning.
- H.265 compression: Reduces bandwidth and storage footprint by 50% relative to H.264 without quality loss.
- Line crossing and face detection: Basic edge analytics reduce false alerts and unnecessary recording.
- IP67 and IK10 ratings: Proven durability in weather and outdoor vandalism-prone environments.
Deployment Considerations:
- PoE power simplifies outdoor installations; verify your switch PoE budget (O6B1M draws up to spec limits for motorized lens operation).
- Junction box must be properly sealed and mounted to prevent water ingress at connector terminals, especially in regions with heavy rain or snow melt.
- Test H.265 stream compatibility with your VMS before full deployment; some older platforms may require firmware updates.
- Line crossing sensitivity should be tuned post-deployment to match lighting and camera angle; avoid over-tuning, which triggers false alerts on shadows and wind-blown objects.
The O6B1M is a reliable choice for integrators building mid-market outdoor surveillance systems. It strikes a practical balance between cost, durability, and feature set. Pair it with a competent NVR and you have a dependable perimeter monitoring foundation.
