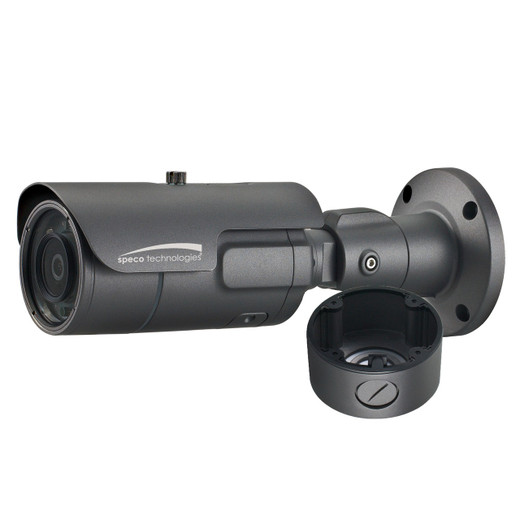

Speco Technologies O6FB7M 6MP Motorized Bullet IP Camera
Overview
The Speco O6FB7M is a fixed bullet-form IP camera engineered for outdoor surveillance deployments requiring high-resolution capture and adaptive zoom capability. This 6MP camera delivers 3072x2048 resolution and combines H.265 compression with a motorized 2.7-12mm lens, allowing remote focal length adjustment without site revisits. IP67-rated construction and wide operating temperature range (-40°F to 140°F) enable year-round operation in harsh environments. Two-way audio support and day/night imaging with true Wide Dynamic Range (WDR) make this camera suitable for applications where detail recovery and real-time communication are required.
Key Features
- 6MP Resolution at 3072x2048: Delivers frame-level detail across wide outdoor scenes, supporting 20 fps video capture for continuous monitoring.
- H.265 and H.264 Compression: Reduces storage and bandwidth demands compared to earlier codecs. H.265 is selectable for integrations requiring codec flexibility (H.265, H.264, and MJPEG all supported).
- Motorized 2.7-12mm Lens: Provides 4.4x optical zoom without camera repositioning, allowing field-adjustable framing post-installation.
- True Wide Dynamic Range (WDR): Recovers detail in high-contrast scenes with direct sunlight and shadow zones, critical for entryway and perimeter monitoring.
- Day/Night Imaging: Automatic IR cutoff filter switching and enhanced low-light sensitivity support round-the-clock surveillance without blind periods.
- PoE Power (802.3af) and DC 12V Support: Single-cable PoE installation drawing 7.6W maximum simplifies field deployment. DC 12V alternative accommodates legacy power infrastructure.
- IP67 Weatherproof Enclosure: Sealed against dust and water ingress (water jet resistant to 6.3 mm orifice at 100 kPa). Integral junction box simplifies conduit-to-camera connections.
- Two-Way Audio: Built-in microphone and speaker enable on-site audio communication or remote alarm announcements without external equipment.
- Motion Detection Analytics: Hardware-accelerated detection triggers recording, alerts, or integration-level automation without third-party software.
- ONVIF Profile S Compliance: Ensures broad VMS platform compatibility (Milestone, AXIS Camera Station, Hanwha, and standards-compliant NVRs).
- 1/3" CMOS Sensor: Optimal sensitivity and dynamic range for fixed outdoor bullet deployments.
- Dark Grey Housing: Low-visibility finish reduces visual presence on building facades and perimeter structures.
Integration and Compatibility
The O6FB7M integrates seamlessly into ONVIF Profile S–compliant VMS platforms, supporting both direct camera connection and NVR/recorder discovery workflows. Network administrators benefit from standard RTSP streaming, allowing flexible third-party analytics integration if motion detection alone is insufficient. The camera's low power consumption (7.6W) ensures reliable PoE operation from standard 802.3af injectors or PoE switches without power budget conflicts on high-channel deployments.
Physical Specifications
The camera weighs 2.6 lbs and is housed in dark grey powder-coated aluminum suitable for corrosive environments. Junction box integration reduces external conduit and connector requirements, lowering installation labor. Wide operating temperature range (-40°F to 140°F) qualifies this camera for cold-climate and high-heat applications without seasonal replacement cycles.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco O6FB7M in mixed-lighting outdoor scenarios, and the combination of 6MP resolution, true WDR, and motorized zoom provides practical flexibility for integrators deploying across variable site conditions. The O6FB7M avoids fixed-focal-length regret by allowing lens adjustment remotely during commissioning—a significant labor saver on multi-camera commercial projects.
Technical Highlights:
- WDR Performance: True WDR (not simulated) effectively handles direct backlit scenes and shadow transitions, reducing false-alert motion triggers in perimeter applications.
- Codec Flexibility: Support for H.265, H.264, and MJPEG allows adaptive bitrate strategy per client infrastructure without requiring separate camera SKUs.
- Low Power Draw: 7.6W maximum consumption ensures reliable operation on extended PoE runs and shared injector channels.
Deployment Considerations:
- IP67 rating and junction box design simplify outdoor hardwiring; verify local electrical code compliance for direct conduit runs.
- Motorized lens introduces a mechanical focus point; confirm client understands that zoom adjustment occurs at the VMS or via ONVIF, not on the camera body.
- Two-way audio functionality requires compatible speaker and microphone (verify OEM recommendations for external devices).
The O6FB7M suits commercial perimeter, entryway, and parking area deployments where resolution detail and zoom adaptability justify the motorized lens cost. ONVIF compliance and low PoE consumption make it a reliable anchor camera for mid-tier outdoor systems.
