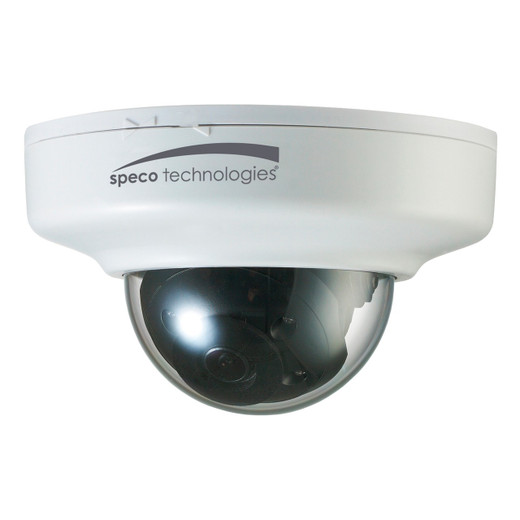

Speco Technologies O3FDP9 3MP Indoor Mini Dome IP Camera
Overview
The Speco Technologies O3FDP9 is a compact, wired indoor mini dome IP camera designed for professional surveillance deployments requiring small form factor and straightforward integration. With a 3MP sensor delivering 2048x1536 maximum resolution, the O3FDP9 combines reliable image quality with low power consumption (5W) and flexible PoE or DC 12V power options. The 2.8mm fixed lens provides a wide field of view suitable for hallways, lobbies, and small retail spaces where space constraints limit larger form factors.
When this is the correct choice
Choose the O3FDP9 when integrating cameras into existing PoE infrastructures with 802.3af power availability, or when deploying in environments where minimal visual profile is required. The compact dome design and white housing blend into indoor architectural environments. The 30fps H.264 compression suits standard frame rate monitoring workflows without unnecessary bandwidth overhead. Day/night capability with automatic switching provides coverage across lighting transitions. Motion detection analytics enable event-triggered recording and alert configurations for cost-effective operational monitoring.
When to choose a different model
Outdoor deployments or vandal-prone environments require different housing and IK rating protection not supported by this indoor mini dome design. High-resolution requirements beyond 3MP or varifocal zoom capabilities should be evaluated in alternative product lines. Applications requiring two-way audio, advanced edge analytics, or thermal imaging are better served by purpose-built alternatives.
Optics and field of view
The fixed 2.8mm lens is optimized for close-to-medium range monitoring typical of interior spaces. The 1/2.8" CMOS sensor paired with this focal length delivers adequate field of view for standard hallway, corridor, and entry point coverage without requiring lens adjustment during installation. Fixed lens design eliminates focus drift and provides consistent, maintenance-free operation.
Imaging performance and low light
The O3FDP9 incorporates day/night functionality with automatic IR filtering, enabling the camera to switch between color daytime imaging and infrared-assisted nighttime capture. True WDR (Wide Dynamic Range) improves image detail in mixed lighting conditions, such as spaces with windows or variable artificial lighting. These capabilities ensure usable video across a 24-hour operating cycle without external lighting modifications.
Analytics and edge capabilities
Motion detection is embedded at the camera level, allowing integrators to configure activity-based triggers for recording, alerts, or VMS integration without requiring server-side processing. This reduces bandwidth usage and supports responsive event workflows. Analytics functionality is accessible via standard ONVIF Profile S integration, ensuring compatibility with major VMS and recording platforms.
Video encoding and streaming
Dual codec support—H.264 and MJPEG—provides flexibility for bandwidth-constrained networks or applications requiring archive compatibility. H.264 is recommended for standard deployments, delivering efficient compression at 30fps. MJPEG is available where legacy systems or specific client software requires motion JPEG streaming. Maximum resolution output is 2048x1536 at 30fps.
Network and security
The O3FDP9 operates as a standards-compliant ONVIF Profile S device, ensuring vendor-neutral compatibility with Milestone, Genetec, Hikvision, Axis Camera Station, and other major VMS platforms. ONVIF Profile S compliance guarantees interoperability for video retrieval, event management, and basic device control without proprietary software dependencies.
Environmental and durability ratings
Operating temperature range is -4°F to 122°F (-20°C to 50°C), supporting indoor climates including non-heated spaces or facilities with seasonal temperature variation. The white plastic dome housing and compact form factor are designed for interior ceiling or wall mounting. Weight of 10 oz ensures lightweight installation with standard fasteners and minimal structural reinforcement requirements.
Power and installation notes
The O3FDP9 accepts either PoE (802.3af standard) or DC 12V auxiliary power, providing integration flexibility for both modern PoE-enabled networks and legacy DC-powered surveillance systems. Power consumption of 5W is well within 802.3af budget (15.4W available), allowing daisy-chaining or priority allocation to higher-power cameras on the same switch port. Installation is straightforward: secure the dome to ceiling or wall, connect the network cable (PoE), and configure IP address via DHCP or static assignment.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Speco O3FDP9 in multiple indoor surveillance deployments, and it serves as a reliable, cost-effective option for integrators building PoE-based camera networks. The compact form factor and straightforward ONVIF compliance minimize integration time, and the 5W power envelope simplifies power budgeting on standard 802.3af switches.
Technical Highlights:
- Efficient PoE operation: 5W power consumption allows multiple cameras per switch port and simplifies power distribution planning in retrofit installations.
- 3MP sensor with fixed optics: 2048x1536 resolution and 2.8mm lens deliver adequate detail for identifiable facial recognition in hallway and lobby environments at typical mounting distances.
- True WDR and day/night: Mixed-lighting environments and 24-hour operation are supported without additional hardware or manual configuration.
- ONVIF Profile S certification: Vendor-neutral platform compatibility eliminates lock-in and enables migration between VMS systems without camera replacement.
Deployment Considerations:
- Confirm 802.3af PoE availability on your switch ports before deployment; if only PoE+ or PoE++ is available, the camera will operate normally with significant power headroom.
- Plan lens selection during site survey; the fixed 2.8mm focal length cannot be adjusted post-installation, so verify field of view against coverage requirements before mounting.
- Motion detection is enabled by default in most firmware versions; review sensitivity settings during commissioning to minimize false-positive alerts in high-traffic areas.
- ONVIF Profile S integration is standard; confirm that your VMS or recording platform lists ONVIF support before purchasing if you require guaranteed compatibility.
The O3FDP9 is a practical, no-frills camera that prioritizes reliability and integration simplicity over advanced analytics or specialized optics. If your project demands straightforward PoE-powered coverage in controlled indoor environments, this model delivers measurable ROI without overspecification. For larger deployments or sites requiring multiple coverage points, the low per-unit cost and minimal power draw make it an efficient choice for scaling your network.
