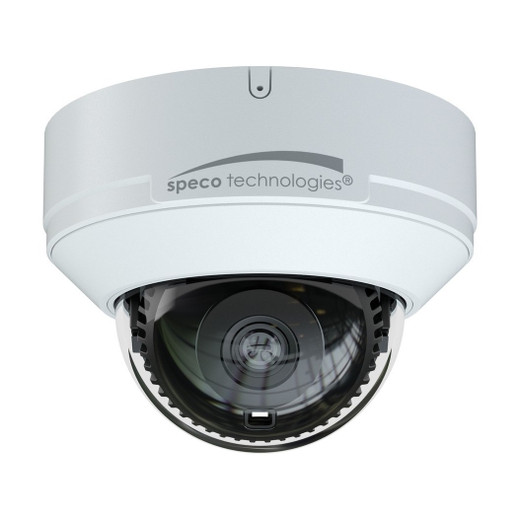

Speco Technologies O4VD2 4MP IP Dome Camera
Overview
The Speco O4VD2 is a fixed-lens, wired IP dome camera built for outdoor and light-industrial surveillance where environmental durability and real-time analytics matter. This camera delivers 2560×1440 (4MP) resolution at 30 fps, combines WDR processing with integrated infrared illumination for 24/7 imaging, and runs edge-based motion, line-crossing, and vehicle detection analytics locally—eliminating unnecessary bandwidth drain to your VMS. The O4VD2 is NDAA-compliant, making it suitable for federal integrators and prime contractors. The fixed 2.8mm lens simplifies field commissioning and reduces installation variables when you need predictable, moderate wide-angle coverage.
Key Features
- 4MP (2560×1440) resolution at 30 fps: Delivers enough pixel density for vehicle plate reads at moderate distances and reliable face detection during daylight. 30 fps ensures smooth motion trails for forensic review without wasting bandwidth on unnecessary frame rates.
- Fixed 2.8mm lens: Provides a wide horizontal field of view suited to general area surveillance—parking lots, warehouse loading zones, perimeter gates. No field-of-view tuning in the field means faster commissioning and fewer post-install calls.
- True WDR (wide dynamic range): Expands usable detail in mixed-light scenes—streetlit parking lots with dark shadows, warehouse bays lit by both skylights and sodium vapor—so you capture detail in both bright and dark zones simultaneously rather than losing one or the other.
- Integrated infrared illumination with day/night switching: When ambient light drops, the camera switches to monochrome IR mode and activates on-board IR LEDs. This means no external lighting or thermal camera needed for reliable 24/7 motion detection and forensic capture.
- H.265 and H.264 codec support: H.265 cuts storage and bandwidth footprint roughly 40–50% versus H.264 at the same visual quality—a real factor when recording 24/7 across a dozen or more cameras. Falls back to H.264 for broader VMS compatibility if needed.
- Edge analytics (motion detection, line crossing, vehicle detection): Analytics run on the camera itself, not on your server. Line crossing alerts unauthorized entry or directional violations at gates and perimeters in real time. Vehicle detection filters out false alarms from rain, leaves, or pedestrians, reducing alert fatigue and storage waste.
- IP67 environmental rating: Sealed against rain, dust, and light wash-down—suitable for outdoor mounting on poles, eaves, or wall surfaces. Survives direct spray but not full submersion; if you need underwater deployment, specify a different form factor.
- PoE (802.3af) powered: Draws under 13W, so a standard PoE switch supplies power and data via a single cable. No separate 12VDC supply or wall outlet needed—simplifies routing and reduces clutter in outdoor junction boxes.
- ONVIF Profile P compliant: Works with Milestone XProtect, Genetec Security Center, Hanwha Wisenet, and dozens of third-party VMS platforms—no vendor lock-in to Speco's own software.
- Built-in microphone and speaker: Enables two-way audio from the monitoring station. Useful for access control scenarios—challenge an unauthorized person at a gate or communicate instructions from a remote security desk.
Integration & Compatibility
The O4VD2 integrates with any ONVIF-compatible VMS and edge recording solution. PoE power simplifies network design—no separate power runs needed. If your VMS supports H.265 decoding, deploy the camera in H.265 mode to maximize storage efficiency. Firmware updates are available directly from Speco; the camera supports signed firmware verification, reducing tampering risk.
When to Choose This Camera
Select the O4VD2 when you need a durable, analytics-capable dome for outdoor perimeter or parking-lot coverage and a fixed field of view matches your layout. The NDAA compliance and 4MP resolution suit federal and commercial integrators building compliant systems. The fixed 2.8mm lens eliminates field-tuning delays and commissioning complexity. Edge analytics reduce VMS server load and enable real-time line-crossing or vehicle alerts without additional edge hardware.
When to Consider Alternatives
If your site demands optical zoom or variable field of view, specify a varifocal dome camera instead. For extreme low-light or thermal imaging, evaluate dedicated low-light or thermal variants in the Speco Technologies catalog. If you need PTZ capability or megapixel counts above 4MP, move to a higher-tier platform. For compact indoor ceiling mounting where dome footprint is critical, consider ultra-compact form factors from Speco's full surveillance line.
Frequently Asked Questions
Q: Is the O4VD2 NDAA Section 889 compliant?
A: Yes, the O4VD2 carries NDAA compliance, making it suitable for federal and prime-contractor procurement.
Q: What is the infrared range on the O4VD2?
A: The camera includes integrated IR illumination for true day/night operation. Specific IR throw distance varies with lens focal length and scene reflectivity; consult the detailed datasheet for IR range specifications.
Q: Does the O4VD2 work with Milestone XProtect or Genetec?
A: Yes. ONVIF Profile P compliance ensures broad third-party VMS compatibility, including Milestone, Genetec, Hanwha Wisenet, and other standards-based platforms.
Q: How much bandwidth does the O4VD2 consume?
A: At 4MP 30 fps, bandwidth depends on scene complexity and H.265 vs. H.264 codec. H.265 typically reduces bitrate 40–50% compared to H.264. Consult the datasheet for typical bitrate ranges at different quality settings.
Q: Can the O4VD2 be wall-mounted, or is it ceiling-only?
A: The O4VD2 dome form factor supports both wall and ceiling mounting via standard bracket. Orientation and field-of-view suitability depend on your installation angle.
Q: What is the operating temperature range for the O4VD2?
A: Consult the detailed technical datasheet for operating temperature specifications and environmental limits.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O4VD2 lands in a practical sweet spot for outdoor perimeter and parking-lot deployments where you want NDAA-compliant hardware without the complexity or cost of PTZ or varifocal tuning. The fixed 2.8mm lens and 4MP resolution make sense for general area surveillance—vehicle identification and pedestrian tracking at moderate distance—without overshooting into megapixel bloat that wastes storage and bandwidth. The edge analytics on this camera deserve real attention: local line-crossing and vehicle detection run on the camera itself, not on your VMS server, which cuts latency for real-time alerts and reduces the CPU load on your recording appliance.
Technical Highlights:
- H.265 codec with H.264 fallback: Cuts storage roughly 40–50% versus H.264 at equivalent quality. On a 24-camera 30-day retention system, that translates to real money—either fewer disks or longer archive depth on the same hardware.
- WDR + integrated IR illumination: The combination handles the most common outdoor challenge—mixed ambient light. WDR pulls detail from both bright and dark zones in a single frame; IR kicks in at night without requiring external lighting infrastructure. No thermal camera price tag, no complex lighting design.
- PoE (802.3af) under 13W: A single PoE switch powers the entire camera. Most 48-port PoE switches budget 375–400W total power; this camera consumes less than 1% of that. Deploy it anywhere your switch reaches—no separate 12VDC runs, no wall-mounted power injectors cluttering cable trays.
- ONVIF Profile P + onboard analytics: Works with Milestone, Genetec, Axis Camera Station, and dozens of third-party platforms. Line-crossing and vehicle detection run locally, so you're not dependent on server-side plugins or licensing overhead.
Deployment Considerations:
- The fixed 2.8mm lens is wide, not telephoto. If your site demands long-distance plate reads or face identification from 80+ feet away, step up to a varifocal. The O4VD2 shines at 30–50 foot coverage zones.
- IP67 handles rain and dust, but this is not a submerged or high-pressure wash-down camera. If your loading dock gets hosed weekly, confirm the mounting location keeps direct spray off the lens.
- Edge analytics are useful, but you're still dependent on your VMS for historical playback, metadata correlation, and alert routing. Don't treat on-camera detection as a substitute for proper NVR software—it's a complement.
The O4VD2 is the right call for federal and commercial integrators building mid-range outdoor systems where NDAA compliance is mandatory, bandwidth and storage efficiency matter, and you want analytics without edge appliance overhead. Pair it with a standard PoE switch, a reputable NVR (Milestone, Genetec, Axis, or equivalent), and you have a dependable perimeter or parking system that won't surprise you at audit or commissioning.
