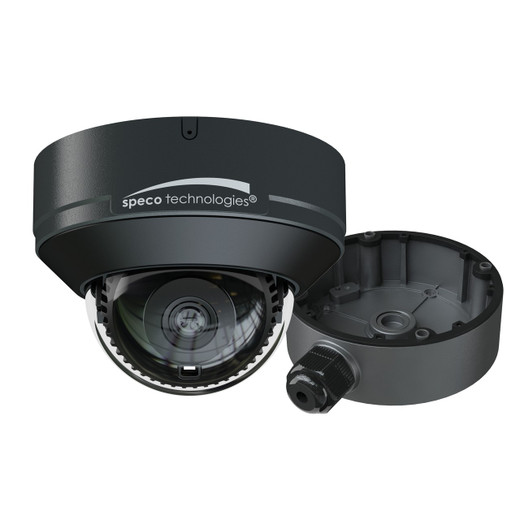

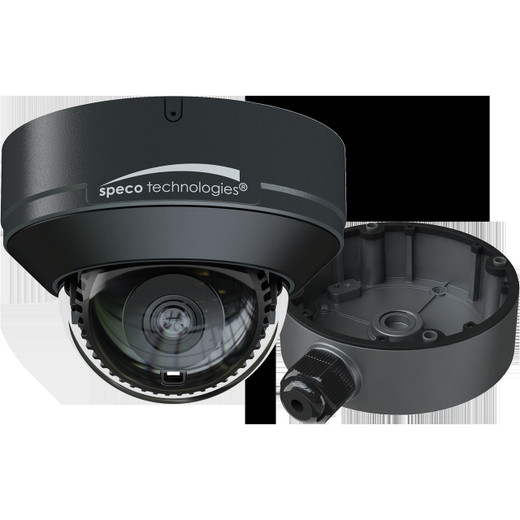

Speco Technologies O4VD2G 4MP IP Dome Camera
Overview
The Speco O4VD2G is a 4MP fixed-dome camera engineered for installations requiring consistent image quality across variable lighting and low-light environments. Built to NDAA compliance standards, it combines a fixed 2.8mm lens with integrated IR illumination and Wide Dynamic Range (WDR) processing, making it well-suited for both indoor and outdoor deployments where straightforward fixed-angle coverage is the deployment requirement. This is not a varifocal or PTZ camera—it fills the role of a reliable, low-complexity dome for lobbies, corridors, perimeter fence lines, and entrance portals where the sight line is known and static.
Key Features
- 4MP Resolution (2560 x 1440): Captures fine detail necessary to identify faces and license plates at typical indoor and medium outdoor distances. At 4MP, the O4VD2G strikes a middle ground—more detail than 2MP, less storage overhead than 5MP or 8MP systems.
- Fixed 2.8mm Lens: Delivers a wide field of view suitable for medium-range coverage in lobbies, stairwells, and perimeter zones. Fixed optics eliminate focus drift and motor-related service calls, lowering lifetime labor costs. No refocusing after mounting.
- Wide Dynamic Range (WDR): Expands the camera's ability to capture detail simultaneously in bright zones (windows, reflective surfaces) and shadow zones (doorways, underlit corners). Critical for entrance portals and perimeter transitions where sunlight and deep shadow coexist in a single frame.
- Integrated IR Illumination: Enables the O4VD2G to operate in darkness and near-zero ambient light without requiring external lighting infrastructure. Extends 24/7 monitoring capability at zero additional infrastructure cost—a significant factor when retrofitting outdoor areas.
- H.264 and H.265 Compression: H.265 reduces file size by approximately 50% compared to H.264 at equivalent quality, directly lowering NAS and SAN storage costs in multi-camera installations recording continuously. For a 30-camera deployment running 24/7, the storage savings are material.
- PoE Power (IEEE 802.3af): Draws low current via standard Power over Ethernet, eliminating the need for separate power supplies and reducing installation complexity. A single Ethernet run delivers both video and power to the dome.
- ONVIF Compliance: Integrates with any ONVIF Profile S-compliant video management system (VMS), ensuring you are not locked into a single vendor's ecosystem. Supports third-party analytics platforms for event detection and alerting.
- NDAA Section 889 Compliance: Meets Federal acquisition requirements, enabling deployment in government facilities, institutional environments, and defense-adjacent contracts where supply-chain restrictions are mandated. Simplifies procurement for integrators working with government clients.
- Dome Form Factor: Provides environmental protection for outdoor installation and deters casual tampering with the lens. Suitable for both ceiling and wall mounting depending on the sight line and installation angle.
When This Is the Right Choice
Deploy the O4VD2G in fixed-angle indoor and outdoor mixed-lighting environments where you need a straightforward, low-maintenance dome without remote lens control. Ideal for integrators working with government, institutional, or defense-adjacent clients requiring NDAA-listed equipment. The 2.8mm lens and WDR processing make it a strong fit for entrance vestibules, lobby monitoring, parking structure approaches, and perimeter fence lines where consistent detail across bright and shadow zones is essential. The fixed lens eliminates commissioning labor—mount, focus once, move on.
When to Consider Alternatives
If your deployment requires remote pan-tilt-zoom control, select a PTZ camera from the PTZ camera category. If you need flexible focal-length adjustment to match a specific sight line without refocusing, specify a varifocal camera instead. For ultra-wide coverage spanning 180° or more, explore panoramic or multi-sensor arrays. If NDAA compliance is not a procurement requirement, review non-restricted equipment lines to compare pricing and feature sets.
Integration and Compatibility
The O4VD2G is ONVIF Profile S compliant, ensuring interoperability with standard VMS platforms including Milestone XProtect, Genetec Security Center, and other ONVIF-native systems. Video can be recorded on network video recorders or NAS appliances supporting ONVIF stream retrieval. The camera streams H.264 and H.265 simultaneously, allowing you to record high-quality H.265 to storage while streaming H.264 to a mobile client for bandwidth efficiency. Integrates into standard IP networks via Ethernet; no proprietary protocols or vendor lock-in.
Environmental and Durability
The dome housing provides environmental sealing for indoor and outdoor deployment. Confirm the specific IP rating and operating temperature range in the technical documentation for your region's climate. The fixed lens and dome form factor offer passive protection against dust, moisture, and weather exposure typical of exterior installations.
Power and Installation
The O4VD2G operates on PoE (802.3af), drawing modest current that fits within standard switch allocations. Requires only a single Ethernet cable run from the PoE-enabled switch (or injector) to the camera. No additional power supplies, no separate runs. Installation labor is minimal—focus the lens during commissioning and lock it in place.
Frequently Asked Questions
Q: Is the O4VD2G NDAA Section 889 compliant?
A: Yes. The O4VD2G is NDAA-listed, meeting Federal supply-chain compliance requirements for government and institutional procurement. Confirm current listing status with your distributor if the deployment is subject to government purchasing restrictions.
Q: What is the infrared range on the O4VD2G?
A: The camera includes integrated IR illumination for low-light and darkness operation. Specific IR range varies with scene reflectivity and lens characteristics. Consult the technical specification sheet for exact distance and lux performance.
Q: Does the O4VD2G work with Milestone XProtect and other ONVIF VMS platforms?
A: Yes. ONVIF Profile S compliance ensures compatibility with Milestone XProtect, Genetec Security Center, and other standard VMS systems. Video integrates directly without proprietary connectors or third-party adapters.
Q: Can I adjust the lens focus after installation?
A: The O4VD2G has a fixed 2.8mm lens. Focus is set during mounting and does not require adjustment afterward. If you need to change focal length after installation, a varifocal camera is a better fit.
Q: How much power does the O4VD2G draw?
A: The camera operates on standard PoE (IEEE 802.3af), drawing modest current well within typical switch power budgets. This eliminates the need for separate power supplies and simplifies installation to a single Ethernet run.
Q: Does the O4VD2G support H.265 compression?
A: Yes. The O4VD2G supports both H.264 and H.265 encoding. H.265 reduces storage consumption by approximately 50% compared to H.264 at equivalent quality, a significant factor in multi-camera, continuous-recording deployments.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The O4VD2G occupies a solid niche: a fixed-dome workhorse for integrators who need NDAA compliance and straightforward deployment without varifocal or PTZ complexity. If your client needs a dome at an entrance or perimeter and government procurement rules apply, this camera moves the project forward without inventory delays or certification workarounds. The 2.8mm fixed lens is the critical constraint here—know your sight line before you order, because you cannot adjust it post-installation.
Technical Highlights:
- 4MP @ 2560 x 1440: Delivers face and license-plate detail at typical lobby and perimeter distances without the storage overhead of 5MP or 8MP systems. Balances resolution against bandwidth and NAS capacity in multi-camera deployments.
- WDR Processing: The ability to preserve detail in both bright and shadow zones is essential at entrance portals and perimeter transitions where direct sunlight and deep shadow coexist. Without it, you lose either the face in the shadow or blow out the window behind the subject.
- H.265 Codec Support: A 30-camera installation running 24/7 with H.265 will consume roughly half the storage of H.264. At 4MP continuous recording, that's material cost recovery within the first year of operation.
- PoE (802.3af) Power Draw: Low enough to avoid power-budget constraints on standard managed switches. A single Ethernet run eliminates installation complexity and reduces the chance of misconfiguration during commissioning.
Deployment Considerations:
- Fixed Lens Lock-In: The 2.8mm focal length is permanent. Measure your target distance, calculate field of view, and confirm the sight line before you commit. A varifocal alternative exists if you need post-installation adjustment flexibility.
- IR Range Variability: IR performance degrades with reflective surfaces and outdoor distance. In a bright facility with light-colored walls, IR may illuminate farther; in a dark warehouse with absorptive surfaces, expect reduced range. Test in your environment before specifying.
- IP Rating Dependency: Confirm the exact IP rating in your regional technical documentation. Do not assume it matches competitor specs—verify it against your outdoor exposure (rain, dust, humidity) before installation.
Position the O4VD2G for fixed-angle perimeter and entrance monitoring in government, institutional, or defense-adjacent contracts where NDAA compliance is non-negotiable and the sight line is known and stable. If your prospect needs lens flexibility or NDAA is not a requirement, explore alternatives—but for the NDAA+fixed-dome combination, the O4VD2G eliminates procurement friction and ships today.
