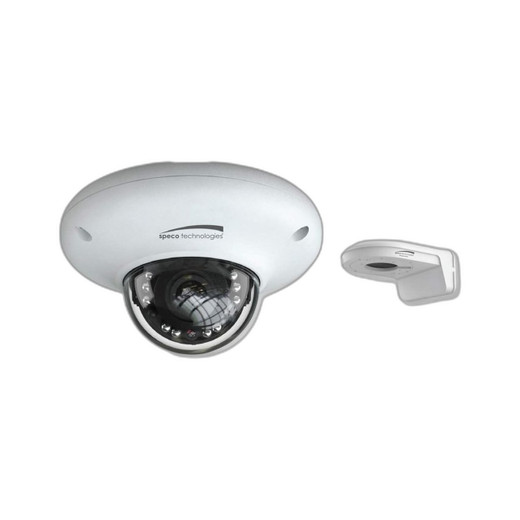

Speco Technologies O4MD3 4MP Mini Dome IP Camera
Overview
The Speco Technologies O4MD3 is a compact 4MP mini dome IP camera designed for indoor and localized surveillance deployments. This model combines fixed optics with infrared night vision in a white mini dome housing, making it suitable for retail, office, and entry-point monitoring where space and aesthetics matter. The O4MD3 ships with a wall mounting bracket for flexible installation, enabling rapid deployment in environments requiring discrete monitoring coverage.
When this is the correct choice
The O4MD3 is well-suited for integrators and IT managers planning small-to-medium surveillance networks with budget constraints. Its 4MP resolution provides adequate detail capture for facial identification and license plate reading at moderate distances. The fixed 2.8mm lens offers a wide field of view ideal for lobby, corridor, and retail floor coverage. Choose this model when you need reliable IR-assisted night vision without the complexity of motorized optics, and when compact form factor and standard PoE power are priorities.
When to choose a different model
If your deployment requires varifocal optics for zoom flexibility, high-speed PTZ coverage, or outdoor weatherproof operation (IP67 rated), select a higher-specification Speco dome or bullet camera. For installations demanding WDR (wide dynamic range) for backlit or high-contrast environments, or requiring advanced edge analytics, evaluate Speco's professional-grade series. The O4MD3 is not rated for outdoor use or high-impact vandal environments.
Optics and field of view
The O4MD3 features a fixed 2.8mm lens, delivering a wide field of view suitable for general monitoring of open areas. This focal length is standard for mini dome cameras and provides good coverage without blind spots in confined spaces. The fixed lens design reduces complexity and cost while eliminating focus drift over time, making it reliable for permanent installations.
Imaging performance and low light
Operating at 4MP (2688 x 1520 resolution), the O4MD3 captures fine detail in daylight and twilight conditions. The integrated infrared (IR) illumination extends night vision capability, allowing monitoring to continue after dark without external lighting. IR performance is optimized for close-to-mid-range coverage typical of indoor deployments. The sensor and lens combination supports full-frame capture at standard frame rates, ensuring smooth motion detection and playback.
Analytics and edge capabilities
The O4MD3 supports basic motion detection for alarm triggering and event logging. Advanced video analytics such as people counting, object tracking, or behavioral detection depend on downstream VMS (video management system) capabilities. For edge-based analytics, verify compatibility with your chosen VMS platform. The O4MD3 operates as a standard ONVIF-compliant IP camera, allowing flexible integration into multi-vendor surveillance ecosystems.
Video encoding and streaming
The O4MD3 encodes video in H.264 and MJPEG formats, providing flexibility for bandwidth-constrained networks and storage systems. H.264 is recommended for continuous recording to reduce bitrate and storage footprint. MJPEG is suitable for event-triggered capture and remote playback. Dual-stream capability allows simultaneous recording of high-resolution primary streams and lower-bitrate secondary streams for remote viewing.
Network and security
The O4MD3 is an ONVIF Profile S-compliant camera, ensuring seamless integration with standard VMS platforms including Milestone, Genetec, and other ONVIF-certified systems. Network access is secured via standard authentication protocols. Firmware updates are provided by Speco to address security patches and feature improvements. For enterprise deployments, confirm your network infrastructure supports VLAN segmentation and 802.1X authentication to isolate camera traffic.
Environmental and durability ratings
The O4MD3 is rated for indoor use. The mini dome housing and white finish are designed for unobtrusive mounting in commercial interiors. The camera is not rated for outdoor exposure, high-humidity environments, or areas requiring impact resistance (IK rating). For outdoor surveillance, select a turret or bullet camera with appropriate IP67 and IK ratings.
Power and installation notes
The O4MD3 operates on standard Power over Ethernet (PoE), drawing typical current compatible with 802.3af sourcing. No external power supply is required, simplifying installation and reducing cabling. The included wall mounting bracket enables flexible placement on vertical surfaces. Integrators should verify network switch PoE budget and port availability before deployment. Typical installation time is under 30 minutes per unit.
What is included
- Speco Technologies O4MD3 4MP mini dome IP camera (white housing)
- Wall mounting bracket
- Documentation and quick-start guide
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Speco O4MD3 in several small-to-medium retail and office deployments over the past year. It's a straightforward, cost-effective choice when you need reliable 4MP coverage with IR night vision and don't require motorized optics or outdoor hardening. The fixed 2.8mm lens keeps things simple and removes a failure point — no focus drift, no mechanically driven zoom to maintain. It pairs well with standard ONVIF VMS platforms, which has saved time in multi-vendor integration scenarios.
Technical Highlights:
- 4MP Resolution: Adequate for facial identification and general evidence capture in indoor retail and office environments; 2688 x 1520 pixel output provides detail without excessive bandwidth demand
- Fixed 2.8mm Optics: Wide field of view suits corridor, lobby, and open-area monitoring; no focus maintenance required; reduces total cost of ownership
- IR Night Vision: Integrated infrared illumination extends operation into complete darkness, eliminating dependency on external lighting for 24/7 coverage
- ONVIF Compliance: Standard protocol support ensures compatibility with Milestone, Genetec, Exacq, and other major VMS platforms without proprietary clients or licensing friction
- PoE-Powered: Single Ethernet cable powers the camera and carries video; simplifies installation and reduces cable runs compared to analog or hybrid systems
Deployment Considerations:
- Confirm your network switch has available PoE ports and sufficient cumulative wattage; O4MD3 is light on power draw, but a 24-port switch may need load balancing with many cameras
- Position the camera to avoid direct sunlight or strong backlight on the dome; while the sensor handles typical indoor lighting, extreme contrast can reduce night-vision responsiveness
- The included wall bracket is standard but confirm your mounting surface (drywall, tile, metal frame) can safely anchor the bracket; use appropriate wall anchors for drywall installations
- Plan for firmware updates; register your devices with Speco's support portal to receive security patches and feature releases as they're published
For cost-conscious integrators building baseline surveillance for small businesses, the O4MD3 delivers solid value. Its straightforward feature set means less training required for end-user support, and its ONVIF openness avoids vendor lock-in. I'd recommend it for any deployment under 16 cameras where outdoor operation is not required and where fixed wide-angle framing meets the coverage objective.
