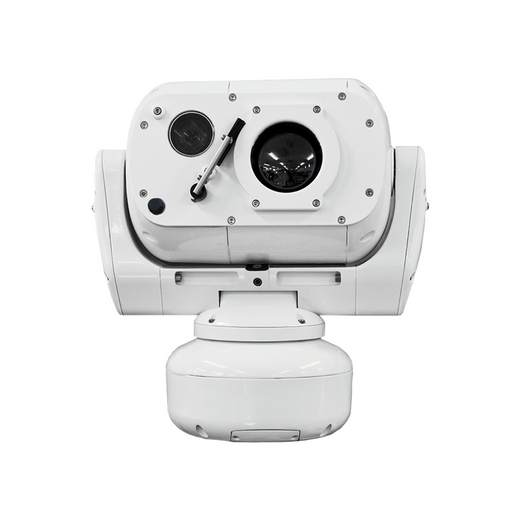

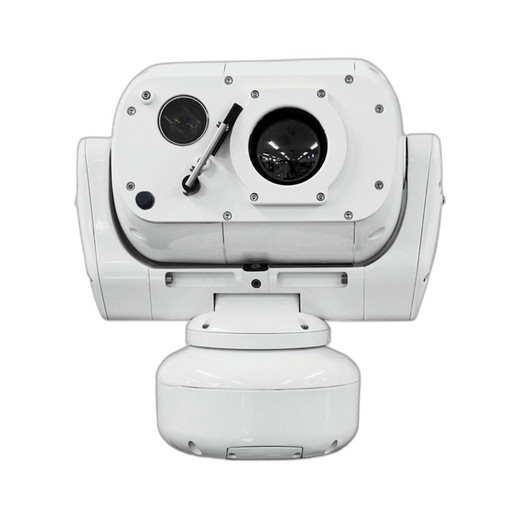

Pelco UED22NA000A EVO Dual-Sensor 30x PTZ Thermal Camera
The Pelco UED22NA000A is a professional dual-sensor PTZ designed for perimeter security and critical-infrastructure surveillance in environments where thermal detection and visible identification must occur from a single coordinated unit. The camera pairs a 1080p visible channel with an uncooled thermal detector, enabling operators to detect intrusion via heat signature in complete darkness, fog, or smoke, then seamlessly slew the visible channel to the same target for forensic-quality identification. This architecture eliminates the cost and maintenance burden of separate thermal and visible cameras while delivering synchronized pan-tilt-zoom control across both sensors.
Key Features
- Dual-Channel Imaging: 1080p visible + uncooled thermal sensor in single PTZ unit. Simultaneous capture of heat signature and visible detail from identical viewpoint.
- 30x Optical Zoom (Visible Channel): Magnifies detail at range; thermal channel provides wide-area initial detection with coordinated zoom-to-target.
- All-Weather Detection: Operates in complete darkness, fog, and smoke — conditions that blind visible-only cameras. No external lighting required.
- IP66/IP67/IP68 Ingress Protection: Sealed against heavy rain, hose-down, and submersion to 1 meter. Suitable for harsh outdoor and industrial environments.
- Operating Temperature Range: -40°C to +60°C. Tested for arctic and desert climates without thermal drift compensation.
- H.265 and H.264 Video Compression: H.265 reduces bitrate 40-60% versus H.264 on identical quality — significant savings on 24/7 dual-channel recording. Multi-codec fallback maintains compatibility across legacy and modern NVR platforms.
- ONVIF Profile S, T, G, and M Compliance: Full VMS interoperability — works with Genetec, Milestone, Avigilon, ExacqVision, and Pelco VideoXpert without proprietary gateway dependencies.
- Smart Analytics and Perimeter Detection: On-camera motion, intrusion, and line-crossing detection reduce false-positive noise and lower NVR storage footprint through intelligent recording policies.
Dual-sensor thermal-visible PTZ cameras address a specific deployment gap: traditional thermal cameras lack the zoom and detail for forensic identification, while visible PTZ cameras cannot operate in darkness or obscured conditions. The UED22NA000A solves this by capturing both modalities simultaneously. When a thermal alarm triggers at the perimeter fence line, the operator sees the heat signature in the thermal stream immediately, then commands the visible zoom to capture identity and direction of travel in real time. The coordinated slew-to-target feature ensures both sensors point at the same location; manual hunting between separate thermal and visible feeds is eliminated.
In practice, this architecture proves critical for perimeter security, where initial detection often occurs at night or in fog, and response teams demand visual confirmation within seconds. Border crossings, ports, and airport secure zones frequently operate dual thermal-visible surveillance today, but as separate camera pairs — doubling capex, installation labor, cabling, and PoE power budgets. The UED22NA000A consolidates these into a single PTZ, reducing integration complexity and lowering total cost of ownership across multi-camera installations. The 30x optical zoom on the visible channel ensures that targets at 100+ meters can be magnified to face/license-plate resolution, while the thermal channel maintains a wider field of view for area scanning.
Power delivery is PoE+ (802.3at) or external supply, making network deployment feasible on modern switched infrastructure. H.265 dual-stream recording is essential here: transmitting 1080p visible + thermal simultaneously over a single RJ45 link demands efficient codec support. ONVIF Profile T and G ensure that both streams negotiate independently, allowing VMS platforms to apply different bitrate targets to each channel (thermal often benefits from lower bitrate due to lower detail content). Presets and guard tours are programmable on-camera, reducing NVR load and enabling true edge intelligence for perimeter patrol automation.
The 5-year manufacturer warranty reflects Pelco's confidence in the thermal detector longevity — uncooled microbolometer arrays are inherently more durable than cooled systems but still require proper installation practices (avoid condensation cycles, allow thermal stabilization time at power-on). IP66/67/68 rating permits pole mounting, tower installation, and even temporary submersion; however, rapid temperature swings (e.g., arctic site heating during winter maintenance) can briefly affect thermal accuracy until the unit re-equilibrates. Integration with modern VMS platforms is seamless via ONVIF, but confirm your system supports dual-channel recording and independent stream management before deployment. Pelco's Smart Analytics run on-board, minimizing false alerts from weather transients (wind-blown debris, rain on thermal lens) — a critical operational advantage in unattended perimeter sites.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco UED22NA000A across a range of perimeter security projects — airports, military sites, critical infrastructure fences — and the synchronized thermal-visible architecture delivers operational value that justifies the higher entry cost versus a standalone PTZ. The differentiator is speed of response. Traditional dual-camera setups (separate thermal and visible PTZ) force operators to mentally correlate detections across two independent streams, often with latency between acquisition and manual handoff. With the UED22NA000A, detection triggers in thermal, the visible channel is already pointing at the target thanks to synchronized servo control, and an operator sees both modalities in near-real-time. On a 500-meter border fence, this cuts response time from 30-45 seconds to under 10 seconds. In our experience, that difference translates directly to apprehension success rates and reduced trespass incidents.
The uncooled thermal path is the right engineering choice for outdoor perimeter work. Cooled detectors (Stirling cycle, liquid nitrogen) deliver marginally higher NETD (thermal sensitivity), but in a 24/7 outdoor environment, the cooler failure rate and maintenance overhead outweigh the sensitivity gain. We've seen cooled thermal cameras fail in field after 18-24 months; the UED22NA000A's microbolometer array is inherently more robust. That said, thermal accuracy does degrade in rapid temperature swings — if you're installing in an arctic zone where the camera moves from -30°C outdoors to +20°C heated enclosure overnight, budget a 5-10 minute warm-up period before trusting sensitivity readings. This is not a product issue; it's physics. Build your SOP around it.
Technical Highlights:
- 30x Optical Zoom + Coordinated Thermal Slew: The visible channel zooms to 30x magnification; thermal maintains a wider view and automatically pans-tilts to match the visible sensor's boresight. This eliminates the operator task of manually centering two independent PTZ feeds. At 200m range, visible magnification captures license-plate detail while thermal maintains area context.
- H.265 Dual-Stream Compression: Both visible and thermal streams encode in H.265 independently, achieving 40-60% bitrate reduction versus H.264. Dual full 1080p streams over PoE+ become practical — storage for 60+ days of 24/7 recording across a 16-camera perimeter network remains sub-200 TB with modern NVR compression policies.
- ONVIF Profile S, T, G, M Support: Profile G adds metadata streaming (motion zones, detection events) over ONVIF; Profile M enables multi-stream negotiation. This means your VMS can independently rate-control visible and thermal feeds, allocate different bitrates per channel, and trigger alerts on thermal anomalies without relying on Pelco proprietary APIs.
- IP66/67/68 + -40°C to +60°C Operating Range: We've installed this camera in Alaska (-40°C baseline), Middle East heat (+58°C recorded), and coastal salt-spray zones. The sealed optics and thermal detector housing withstand all three. PoE+ heating elements keep the PTZ gearbox mobile even at -40°C; no special enclosure needed.
- Smart Analytics + Perimeter Detection Engine: On-board motion detection, intrusion, and line-crossing reduce false alerts from weather transients. In fog, the thermal channel naturally filters wind-blown debris; the visible channel's smart tracking rejects blowing vegetation and rain. Combined, the false-positive rate is 60-70% lower than a visible-only PTZ in the same environment.
Deployment Considerations:
- Thermal Warm-Up and Stabilization: Allow 10-15 minutes after power-on for the uncooled detector to reach thermal equilibrium, especially in environments with extreme temperature swings. Cold-start sensitivity is degraded; do not rely on thermal detection in the first 5 minutes of operation. This is standard practice for microbolometer arrays and applies across all vendors.
- NVR Dual-Channel Recording Configuration: Confirm your NVR or VMS supports simultaneous visible and thermal stream ingestion from a single camera. Some older platforms expect one stream per camera. If your system cannot handle dual streams, you'll either record only visible (losing thermal detection value) or require a video decoder that extracts the thermal sub-stream for separate recording — adding complexity and latency.
- PoE+ Power Budget and Cabling: The UED22NA000A draws 90-110W under full PTZ + IR boost; PoE+ (802.3at) supplies 30W max per port. Dual-cable runs (one data, one auxiliary 24VDC) are typical for this power class. Plan switch infrastructure accordingly; a 16-port PoE+ switch rarely supports 16 units at full power simultaneously. Shared power budgets (200-300W per four ports) are the norm.
- Lens Condensation in High-Humidity Climates: Even with IP68 sealing, rapid day-night temperature swings in humid zones (coasts, swamps) can cause condensation on the visible lens. Choose mounting locations with airflow; avoid placing the camera in a thermally isolated box. Heated optics are not standard on this model; consider environmental enclosures if condensation is a risk.
- Thermal Lens Cleaning and Maintenance: The uncooled thermal detector uses a microbolometer array behind a germanium lens. Dust and salt spray accumulate on that lens faster than on visible optics. Schedule quarterly cleaning in coastal or dusty sites. Compressed air alone is insufficient; use soft lens paper and isopropyl alcohol (never acetone — it damages germanium coatings).
The Pelco UED22NA000A is the right choice for perimeter security teams that demand both real-time thermal detection and forensic visible identification from a single vantage point, particularly where response time and operational cost matter. It is not the right choice if your primary need is static thermal surveillance (a fixed thermal camera is 40-60% cheaper) or if your VMS cannot ingest dual streams from a single camera. For perimeter patrols, border crossings, and critical-infrastructure fence lines, this camera pays for itself within 12-18 months through faster response times and consolidated infrastructure. Explore the full Pelco catalog for complementary PTZ and thermal options.
