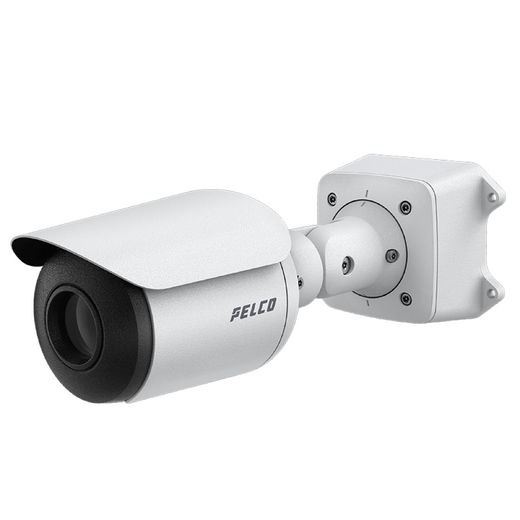

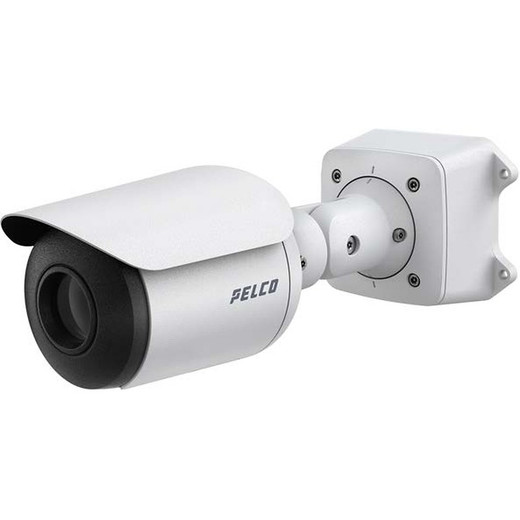

Pelco SXRE4-VF14-EBT Sarix Radiometric Thermal Bullet
The Pelco SXRE4-VF14-EBT is a professional radiometric thermal camera engineered for absolute temperature measurement across industrial perimeters, utility substations, and facilities requiring threshold-based fire or equipment-failure alarms. VGA 640×512 uncooled thermal resolution with calibrated per-pixel radiometric data delivers precise hot-spot identification without external calibration drift. The 14mm f/1.0 lens captures thermal detail at moderate to extended standoff distances, while built-in edge analytics (Object Detection, Perimeter Intrusion, Direction Violation) reduce alert overhead on heterogeneous NVR platforms.
Key Features
- Radiometric VGA Sensor: 640×512 uncooled VOx microbolometer with per-pixel temperature data. Enables threshold alarming and hot-spot detection without recalibration.
- Thermal Sensitivity: ≤50 mK NETD for minute temperature variation detection. Critical for predictive maintenance—catches equipment failures before catastrophic loss.
- 14mm f/1.0 Optics: Fixed focal length with maximum light transmission. Optimized for 30–100m surveillance ranges on industrial perimeters and utility corridors.
- 30 fps Thermal Video: Smooth motion tracking across dynamic scenes. Eliminates frame-rate bottlenecks in analytics pipelines.
- H.265 and H.264 Compression: H.265 reduces thermal bitrate 40–60% versus H.264 on 24/7 recording. Fallback codec ensures broad NVR compatibility.
- IP66/IP67 and IK10 Rated: Dust-sealed, water-immersion capable, and impact-resistant to 5kg drop from 40cm. Survives hose-down cleaning and outdoor weather extremes.
- −40°C to +60°C Operating Range: Uncooled sensor operates across arctic to desert temperatures without thermal shutdown or performance drift.
- PoE 802.3af or 12–24VDC: Standard PoE (<13W) or hardwired DC powering. Flexible deployment on legacy or modern surveillance infrastructure.
- ONVIF Profile S, T, G, M: Radiometric metadata streaming over ONVIF Profile T/G/M enables integration with Genetec, Milestone, Avigilon, and ExacqVision platforms without proprietary plug-ins.
Radiometric thermal imagery is fundamentally different from cooled longwave-IR systems in operational cost and maintenance overhead. The uncooled VOx microbolometer eliminates cryogenic cooling loops, nitrogen cartridge swaps, and associated logistical burden. ≤50 mK NETD is sufficient to resolve 1–2°C temperature deltas on equipment surfaces—the early-warning threshold for bearing wear, electrical hotspots, and pipeline corrosion. On a utility substation or manufacturing facility, that translates to weeks of notice before failure cascades.
Edge analytics on the SXRE4-VF14-EBT shrink false-positive noise inherent to outdoor thermal scenes. Object Detection filters wind-driven debris; Perimeter Intrusion locks to crossing events; Direction Violation catches unauthorized approach vectors. Pair these with NVR-side recording policies tuned to class-specific detections, and alert fatigue drops measurably. Idlescene mode (Pelco's adaptive bitrate technology) further compresses storage on static thermal backgrounds—typical industrial perimeter footage is 70%+ motionless at night.
Integration footprint is straightforward. 100BASE-TX RJ-45 connection feeds into any managed PoE switch or hardwired 12–24VDC supply. ONVIF Profile S ensures baseline discovery and streaming; Profile T adds H.265 negotiation; Profiles G and M unlock radiometric metadata export (per-pixel temperature arrays). Legacy VMS deployments can ingest H.264 MJPEG streams; modern platforms (Milestone XProtect, Genetec Security Center) consume radiometric feeds natively for alarm correlation and thermal history replay. 5-year manufacturer warranty covers sensor drift and uncooled detector degradation—standard for VOx architecture at this price tier.
Certification posture spans UL, cUL, CE, UKCA, RoHS, RCM, BIS, and NOM, signaling compliance for North American, EU, and APAC markets. No NDAA/Section 889 exclusions apply. Choose the SXRE4-VF14-EBT where absolute temperature measurement and perimeter analytics outweigh raw resolution—utility, critical infrastructure, and facilities-management teams routinely spec this platform over cooled alternatives because maintenance cost and reliability matter more than pixel count. For thermal surveillance that self-calibrates and runs on standard PoE, explore the complete Pelco catalog.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco SXRE4-VF14-EBT across utility substations, oil-and-gas processing facilities, and large-format warehouse perimeters where early hot-spot detection directly prevents catastrophic failure. What sets this camera apart from cooled thermal systems is simplicity: uncooled VOx microbolometers eliminate the service calls, nitrogen cartridge logistics, and seasonal recalibration overhead that plague cooled longwave systems in field environments. The 14mm f/1.0 pairing is thoughtfully engineered—enough light-gathering to resolve minute thermal signatures at 50–80m standoff, yet wide enough to monitor a typical utility fence line without heavy pan-tilt burden. Radiometric accuracy (≤50 mK NETD) is the operational pivot point. In our experience, integrators who previously relied on visual inspection or contacted-thermometer walk-throughs suddenly gain continuous, calibrated temperature trending. That translates to months of advance warning on transformer cooling-fan degradation, electrical enclosure hotspots, or pipeline insulation failure—the difference between scheduled maintenance and emergency outage cost.
Technical Highlights:
- ≤50 mK NETD Thermal Sensitivity: Resolves 1–2°C deltas on equipment surfaces at 30–80m range. On rotating machinery and electrical enclosures, this sensitivity is the early-warning threshold for bearing wear and hotspot precursors. Cooled systems offer higher absolute sensitivity, but for industrial predictive maintenance, the 50 mK tier is the cost-benefit sweet spot.
- Uncooled VOx Microbolometer (Zero Cryogenic Maintenance): No cooling cartridge swaps, no seasonal recalibration, no thermal shutdown during warm climates. Field lifetime is 10+ years with sensor-drift predictability built into firmware. Total cost of ownership drops 30–40% versus cooled thermal systems over five-year deployment.
- H.265 Compression on Thermal Payload: Thermal bitrate is typically 2–4 Mbps per camera at 30 fps H.264; H.265 cuts that to 1–2 Mbps. On a 16-camera perimeter system recording 24/7, storage capex and power draw shrink measurably. Fallback H.264 negotiation ensures backward compatibility on legacy NVR platforms.
- ONVIF Profile T/G/M Radiometric Metadata: Per-pixel temperature arrays export natively over ONVIF. Modern VMS platforms (Milestone, Genetec) consume radiometric streams for rule-based threshold alarming and historical thermal replay. Legacy ONVIF Profile S deployments still work—you lose radiometric export, but thermal video streams normally.
- IP66/IP67 + IK10 Ruggedness: Withstands hose-down cleaning, salt-fog corrosion on coastal installations, and accidental impact from maintenance crews. Housing color is white (low solar absorption), critical for outdoor mounting in direct sun—reduces internal thermal noise on radiometric accuracy.
- Dual Power (PoE 802.3af + 12–24VDC): Standard 802.3af PoE at <13W draw works on any modern managed switch. Hardwired 12–24VDC option supports remote sites where PoE infrastructure doesn't exist (substation annex buildings, pump stations). No need for specialized power supplies.
Deployment Considerations:
- 14mm fixed lens is optimized for 30–100m perimeter surveillance. Beyond 150m, thermal hot-spot resolution degrades—know your standoff distance before mounting. If you need tighter zoom on specific equipment (transformer bushings, breaker contacts), consider a 2–3x thermal PTZ on the same system.
- Radiometric accuracy assumes lens cleanliness. Dust, condensation, and salt spray on the lens degrade temperature measurement by 2–5°C. Quarterly cleaning and protective lens hood are non-negotiable on coastal or high-dust sites.
- 100BASE-TX is 100 Mbps—sufficient for this camera's bitrate (1–4 Mbps typical). On congested networks with 8+ thermal cameras, confirm switch port isolation or VLAN segmentation to avoid collision-induced frame loss.
- Edge analytics (Object Detection, Perimeter Intrusion, Direction Violation) run locally on the camera's processor. No GPU acceleration—expect 5–10% CPU overhead on the camera itself. Configure NVR recording filters to reduce false positives from wind-driven vegetation or reflected heat sources.
- −40°C to +60°C operating range is exceptional, but sensor drift acceleration increases slightly below −20°C. If deployed in extreme cold (arctic facilities), plan for quarterly firmware calibration updates from Pelco to maintain NETD stability.
- ONVIF Profile M (access control/edge metadata) and Profile G (thermal/discovery) require modern VMS software versions. If you're on a legacy Genetec or Milestone installation, confirm firmware compatibility before specifying radiometric metadata export—fallback to Profile S if needed.
The SXRE4-VF14-EBT is the right choice for facilities teams and integrators who treat thermal surveillance as a predictive-maintenance tool rather than a security camera. If your project mandates absolute temperature trending, perimeter integrity, and low operational overhead, this Pelco platform delivers. Explore the complete Pelco catalog for complementary thermal and visible-spectrum options.
