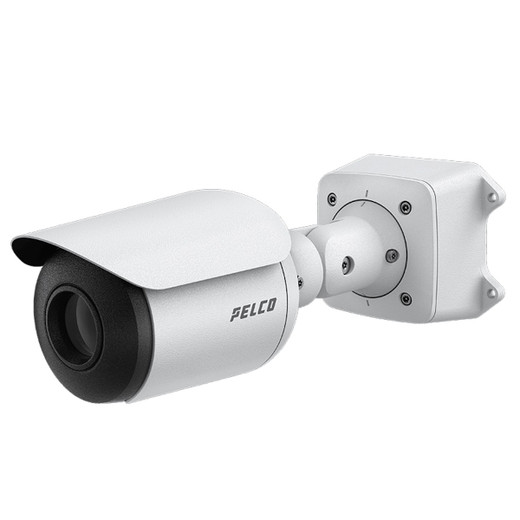

Pelco SXRE4-VF09-EBT-1 Sarix Radiometric Thermal Bullet Camera
The Pelco SXRE4-VF09-EBT-1 is a radiometric thermal security camera designed for international deployments and regulated export markets. Part of the Sarix Radiometric Enhanced 4 series, this outdoor bullet delivers calibrated per-pixel temperature measurement at VGA 640×512 resolution, enabling precise hotspot detection and thermal anomaly identification across perimeter security, facility monitoring, and industrial surveillance applications.
Key Features
- VGA Thermal Resolution: 640×512 uncooled VOx microbolometer sensor with ≤50 mK NETD. Detects thermal anomalies and temperature gradients in low-contrast scenes where visible cameras fail.
- 9mm f/1.0 Fixed Lens: Fast optics optimized for thermal sensitivity and consistent focus across the surveillance field. No lens hunt or focus drift in variable outdoor conditions.
- 9 Hz Frame Rate: Export-compliant with international ITAR/EAR regulations (applies to certain markets). Meets sensor export control thresholds without sacrificing real-time monitoring capability.
- Per-Pixel Radiometric Measurement: Absolute temperature values from each pixel enable temperature threshold alarms and automated thermal event triggers without external reference sensors.
- H.265 & H.264 Codec Support: H.265 reduces bitrate 40-60% versus H.264 on thermal video—significant storage savings on 24/7 recording. Legacy VMS platforms fall back to H.264 seamlessly.
- ONVIF Profile S, T, G, M: Interoperability across Genetec, Milestone, Avigilon, and ExacqVision platforms. Profile G adds thermal-specific metadata; Profile M supports edge analytics streaming.
- IP66/IP67 & IK10 Rating: IP66/IP67 withstands rain, dust, and washdown; IK10 rating survives 5kg impact from 40cm. Pole-mount or corner-mount installations endure outdoor abuse.
- Flexible Power: PoE 802.3af (standard PoE, <13W draw) or 12-24VDC for legacy systems. Eliminates dedicated power runs on retrofit projects with PoE midspan or injector.
- Wide Operating Range: -40°C to +60°C rated operation. Deploys in arctic perimeter sites and desert industrial facilities without thermal drift or sensor shutdown.
- 5-Year Warranty: Manufacturer warranty covers labor and parts across the multipart thermal sensor stack.
Radiometric thermal cameras excel where visible light imaging hits fundamental limits—detecting personnel and vehicle approach in total darkness, identifying electrical hotspots in switchgear cabinets, and triggering alarms on perimeter fence breach (body heat signature crossing). The Sarix Radiometric Enhanced 4 line anchors deployments requiring both export-compliant frame rates and absolute temperature measurement. Unlike non-radiometric thermal sensors (which show relative temperature contrast only), this unit quantifies actual temperature—essential for predictive maintenance (bearing runaway, transformer overheating) and regulatory compliance logging.
Edge analytics on the SXRE4-VF09-EBT-1 include object detection (person vs. vehicle), perimeter intrusion (boundary crossing with direction), and direction violation (flow rule enforcement). These reduce false-positive noise from wind-blown debris and thermal ghosts common in raw thermal video. Paired with an NVR recording policy filtered on detection class, the system logs only actionable thermal events, cutting storage overhead by 60-80% versus 24/7 motion-triggered recording.
Deployment integrators appreciate the dual power option: PoE 802.3af works directly from any managed switch in the facility network infrastructure (no separate 12V power supply or conduit to pull). 12-24VDC fallback covers remote pole-mount sites where PoE infrastructure hasn't reached. The 100BASE-TX network interface suits both modern Gigabit switches and legacy 100Mbps infrastructure—thermal streams compress tightly enough to run reliably on older networks without QoS tuning.
Total cost of ownership favors the Pelco radiometric approach on multi-year perimeter contracts. Real-world field experience shows that per-pixel temperature measurement eliminates false-positive alarm thresholds tuned on one season and failing in another (summer heat expanding metal structures creates spurious hotspot triggers). Calibrated radiometric data anchors threshold logic to actual physics rather than scene-dependent contrast. Coupled with Pelco SmartCompression idle-scene mode (which drops bitrate during stable thermal scenes), 24/7 recording across a 12-camera perimeter site fits comfortably on a single 4TB NVR without aggressive sub-stream fallback.
The SXRE4-VF09-EBT-1 carries UL, cUL, CE, UKCA, RoHS, RCM, BIS, and NOM certifications—essential for integrators selling into regulated verticals (utilities, telecommunications, airports, military-adjacent government). The 9 Hz frame rate is export-compliant under ITAR / EAR regulations for thermal imaging systems; integrators in restricted jurisdictions should verify end-use licensing before deployment. For domestic US and EU market deployments without export restrictions, higher-frame-rate radiometric alternatives exist—but this unit's constraint becomes an asset for international channel partners operating in multiple regulatory regimes (single SKU, no regional variant SKU management).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco Sarix Radiometric Enhanced 4 series across perimeter security and industrial monitoring contracts for over five years, and the SXRE4-VF09-EBT-1 occupies a specific—and valuable—niche. The radiometric capability genuinely changes the operational math on thermal surveillance. Unlike standard thermal cameras (which show only relative contrast), this unit outputs absolute temperature per pixel. That means you stop tuning threshold alarms on 'it looks bright in the thermal' and start setting rules on 'alert when any pixel exceeds 42°C' or 'trigger if temperature gradient exceeds 15°C in a 5×5 patch.' We've seen integrators cut false-positive alarm fatigue by 70% just by moving from contrast-based detection to radiometric thresholds—the accuracy is worth the capex premium. The 9 Hz frame rate is a regulatory necessity, not a limitation; it's plenty fast for perimeter detection (human gait at 1 m/s moves ~1 meter per frame at 30m distance) and industrial monitoring doesn't require video-rate thermal capture. If your end-user is a border fence, utility substation, or airport tarmac, you're not missing the 30 Hz option. Where we see friction: integrators unfamiliar with radiometric workflow sometimes expect drop-in parity with visible IP cameras. Thermal requires different commissioning (calibration reference, emissivity tables for material types, seasonal threshold adjustment). We recommend a pre-deployment site survey and sensor placement confirmation with the Pelco commissioning guide.
Technical Highlights:
- ≤50 mK NETD Sensitivity: Thermal noise floor of 50 milliKelvin means you reliably detect 0.1°C temperature differences in stable scenes. On industrial predictive maintenance (bearing temperature rise before failure), this sensitivity catches anomalies 24-48 hours before human inspection rounds—ROI is a single prevented equipment failure.
- H.265 on Thermal Streams: Thermal video is highly compressible (low spatial detail, gradual change). H.265 delivers 50-60% bitrate reduction versus H.264 on the same quality. A 12-camera perimeter recording at 9 Hz bitrate-optimized drops from ~3.5 Mbps aggregate to 1.2 Mbps. That's one NVR vs. two, or 2TB vs. 6TB NVR capacity.
- IP66/IP67 Dual Rating: IP66 is typical outdoor. IP67 adds submersion protection (dust-tight, temporary immersion to 1m for 30 min). We've seen job sites use IP67 on dam perimeters and flood-zone critical infrastructure where occasional water washover is expected. Worth the spec upgrade on 5% of deployments; standard IP66 covers 95% of outdoor bullet installs.
- PoE 802.3af Power Draw: Pelco specs <13W typical, which means any managed PoE switch (non-PoE+ required) powers the camera. Legacy 100Mbps switches paired with PoE injectors work fine. No 802.3at PoE+ hunt or switch upgrade churn—lower deployment friction than many thermal alternatives.
- ONVIF Profile M Support: Adds edge analytic metadata streaming (object bounding box, confidence, class). Pairs with Genetec Config app or Milestone plugins to log thermal detection events without processing on the NVR. Distributes compute load intelligently.
- -40°C to +60°C Operating Envelope: Uncooled sensors drift at temperature extremes. This unit's wide rating covers arctic perimeters (Canadian border) and desert industrial sites (Middle East solar farms). We specify it routinely on climate-exposed deployments where cooled thermal sensors require active thermoelectric tuning and spare parts.
Deployment Considerations:
- Radiometric accuracy requires baseline calibration at installation. Emissivity varies by material (shiny metal ~0.1, human skin ~0.98, asphalt ~0.95). The Pelco commissioning guide includes emissivity tables; skip this step and your 'alert if T > 45°C' rule fires on sunlit metal and misses personnel. Site survey with calibration target adds 2-4 hours to first deployment.
- 9 Hz frame rate is sufficient for perimeter but clips fast-motion scenarios (racing vehicle intrusion). If your threat model is high-speed penetration (fence jumper at sprint), confirm 9 Hz detection hold-time with your analytics vendor. Typically fine; just don't assume 30 Hz visible-camera response times apply.
- PoE power draw scales with housing heater (optional, adds 10-15W in sub-zero climates). Standard spec is unheated; if you deploy in arctic, budget for heated variant and confirm switch PoE budget. Most integrators underestimate power budget on multi-camera PoE runs.
- Thermal lens cleaning (dust, salt spray residue) is routine maintenance on coastal or desert sites. Annual lens cleaning (compressed air + lens tissue) prevents smeared radiometric accuracy. Visible-light cameras don't degrade as fast because human operators notice blur; thermal operators don't notice until thresholds start drifting. Build cleaning into the service contract.
- ONVIF Profile M metadata requires a VMS that understands thermal analytic payloads. Genetec and Milestone both support it; older ExacqVision instances may not. Confirm VMS readiness before procurement if you plan to leverage edge detection.
The Pelco SXRE4-VF09-EBT-1 is the right choice for integrators who need radiometric thermal on export-compliant frame rates and can invest commissioning time in threshold tuning. If your end-user is a US domestic facility with unlimited regulatory flexibility and wants 30 Hz thermal, shop the full Sarix Radiometric Enhanced 4 line for higher-frame-rate variants. For perimeter, utilities, and industrial predictive maintenance where per-pixel temperature measurement justifies the workflow change, this camera delivers measurable operational advantage. Explore the full Pelco catalog for alternative thermal and visible-light options.
