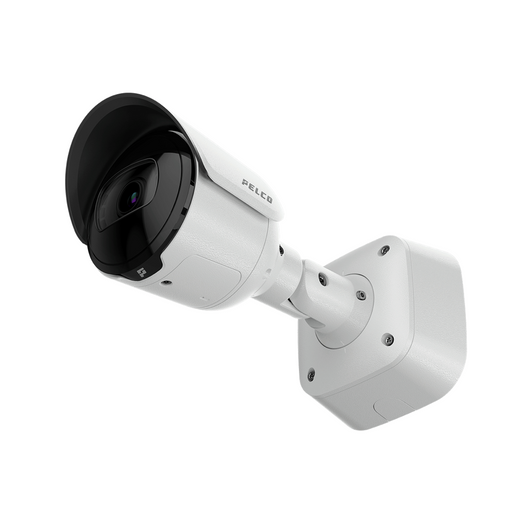

Pelco SRXE4P-8V9-EBT-IR1 8MP FIPS Bullet Camera

Pelco SRXE4P-8V9-EBT-IR1 8MP FIPS Bullet Camera

The Pelco SRXE4P-8V9-EBT-IR1 is a professional-grade outdoor bullet camera engineered for federal, defense, and critical infrastructure deployments requiring FIPS 140-3 Level 3 validated cryptographic security. Built on the Sarix Enhanced 4 Series platform, this camera combines high-resolution imaging, advanced analytics, and government-mandated cybersecurity controls in a rugged, weatherproof package.

Key Features

• 8MP resolution at 2560 x 1440 (4 MP native sensor with enhanced processing)
• 1/1.8 inch progressive scan CMOS sensor with 130 dB SureVision WDR
• 4.4–9.3 mm motorized varifocal lens with 32–109° horizontal FOV
• FIPS 140-3 Level 3 compliance with TPM, Secure Boot, and HTTPS encryption
• Integrated IR illumination (850 nm, ~70 m range)
• Smart Analytics: Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, Audio Analytics, Tamper Alert
• Extreme durability: IP66/IP67/IP68 (2 m/2 hr)/IPX9K/NEMA 4X ingress protection, IK11 impact rating
• Extended operating range: -50°C to +65°C with PoE+ or external power

Technical Highlights

The camera delivers exceptional low-light performance with minimum illumination of 0.003 lux in color mode, 0.001 lux monochrome, and 0 lux with IR active. H.265, H.264, and Motion JPEG video compression options optimize bandwidth and storage efficiency. ONVIF Profile S, T, G, and M compliance ensures seamless integration with enterprise VMS platforms and third-party devices.

The motorized varifocal lens provides flexible field-of-view adjustment for corridor monitoring, building perimeters, and facility access points at moderate standoff distances. The 130 dB dynamic range preserves detail in both bright and shadowed areas simultaneously, critical for forensic clarity in mixed-lighting environments.

Cybersecurity & Compliance

The "P" designation confirms FIPS 140-3 Level 3 cryptographic validation, mandatory for U.S. federal agencies, Department of Defense contractors, and NDAA-compliant procurement. Additional security features include 802.1X network authentication, TPM module, and Secure Boot. The camera is NDAA Section 889 and TAA compliant, meeting Buy American requirements for federal projects.

Applications

Ideal for federal facilities, military installations, border security, critical infrastructure, government offices, and defense contractor sites. The rugged construction and extreme environmental ratings support outdoor perimeter surveillance, vehicle monitoring, and facility access control in demanding climates.

Power: PoE+ (30 W class 3) or 12/24 Vdc external. Warranty: 5 years. For non-FIPS applications, consider the SRXE4-8V9-EBT-IR1 variant.
