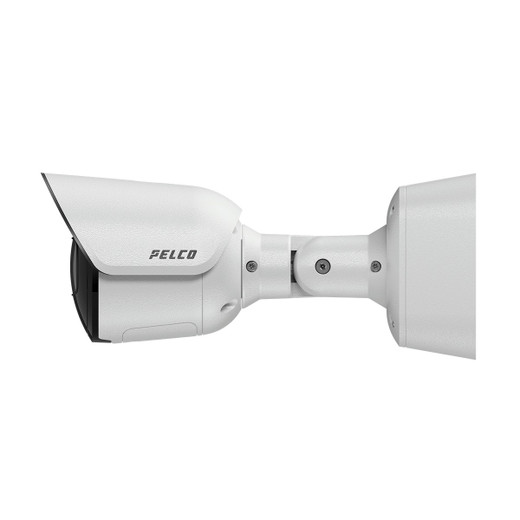

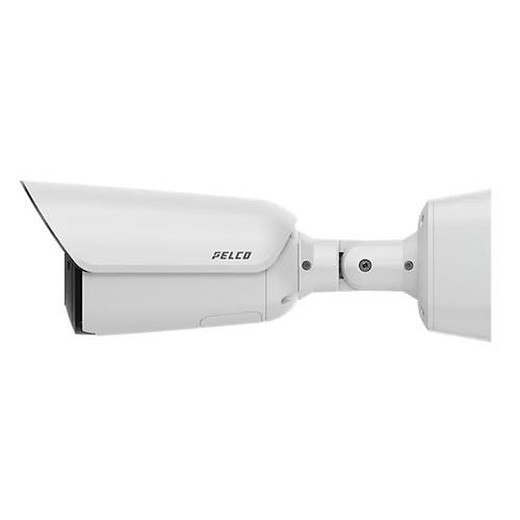

Pelco SRXE4-8X31-EBT-IR1 8MP Bullet Camera

We've deployed the Pelco Sarix Enhanced 4 series across utility perimeters, port facilities, and critical-infrastructure corridors, and the SRXE4-8X31-EBT-IR1 consistently outperforms fixed-lens alternatives in cost-per-coverage metrics. The 31x motorized zoom eliminates the false economy of deploying dual cameras (one wide, one telephoto) at each mounting point — a single motorized bullet covers the same operational ground while reducing PoE draw, cable runs, and NVR storage footprint. The real differentiator is the combination of optical range (32–109° FOV), IR reach (70m), and SureVision WDR. On perimeters where external lighting is prohibited or impractical (solar-constrained fence lines, wildlife-sensitive zones), this camera's 0.001 lux monochrome sensitivity and IR range eliminate the engineering workaround of supplementary floods. FIPS 140-3 Level 3 validation is table-stakes for Federal projects, and Pelco's TPM + Secure Boot implementation actually works — no emulated crypto or firmware backdoors. That said, the camera is not a panacea: IK11 resists brute-force vandalism, but deliberate cutting of optical elements or deliberate lens occlusion will still succeed. On highest-risk sites, pair this with PTZ-backup coverage or tamper-detection integration with guard response. Audio analytics are useful for fence-cutting and alarm integration, but rely on clear acoustic pathways — wind noise and traffic rumble can trigger false positives. We typically disable audio analytics in high-wind zones unless the client wants the overhead of filtering.

Technical Highlights:

• 31x Motorized Varifocal (4.4–9.3 mm): Remote zoom saves revisits after installation and allows real-time FOV adjustment for changing operational needs (wider coverage during peak hours, tighter focus during night shifts). Degree-of-zoom flexibility scales across linear perimeters more cost-effectively than fixed-lens arrays.
• 130 dB SureVision WDR: Single-pass processing eliminates the motion artifacts and frame drops common in frame-stacking HDR implementations. Backlit gate-entry scenes and vehicle-headlight wash remain sharp and usable; we've seen evidentiary footage hold up in jurisdictions that reject ghosting artifacts as non-compliant.
• 70m IR with 0.001 lux Mono Sensitivity: IR and low-light modes are complementary, not redundant. Full-color footage at 0.003 lux is usable for vehicle color discrimination and clothing details. Monochrome at 0.001 lux + IR fallback extends effective 24/7 operation without external lighting infrastructure — a significant capex savings on solar-constrained perimeters.
• FIPS 140-3 Level 3 + TPM: Validated cryptography, not marketing theater. Secure Boot prevents firmware tampering; TPM enforces key storage in isolated silicon. Critical for sites subject to Federal audit or where camera footage is evidentiary chain-of-custody material.
• H.265 + Motion JPEG Codec Fallback: H.265 bitrate reduction (40–60% vs. H.264) on 24/7 multi-camera arrays is material: a 16-camera system recording at 2 Mbps H.264 drops to ~1 Mbps H.265 on equivalent quality. Motion JPEG fallback ensures compatibility with legacy VMS platforms or bandwidth-constrained WANs without re-encoding overhead.
• Smart Analytics at Edge (Person/Vehicle, Loitering, Beam Crossing): On-camera processing filters alerts before they reach the NVR, reducing false-positive noise and network chatter. We typically enable person and vehicle detection, disable loitering on high-traffic corridors (too many alerts), and reserve beam-crossing for after-hours fence perimeter events.

Deployment Considerations:

• IR range is rated 70m, sufficient for perimeter fence lines and parking lots; inadequate for long-range identification beyond 200+ meters without supplementary thermal or external IR floods. Know your required focal distance before final positioning — motorized zoom helps but cannot compensate for undersized optics at extreme range.
• PoE+ (30W, 802.3at) is required for full functionality (motorized zoom + IR on simultaneously). Standard PoE (15W, 802.3af) will not sustain both loads and may cause intermittent focus-motor brownout. Verify switch-port specifications before installation or budget for 12/24 Vdc external power.
• IP68 (2m, 2hr) rating is submersion-rated but not continuous-immersion-rated. Install above poolside or tidal-zone waterlines; if camera is regularly submerged, specify an alternative or protective housing.
• Audio analytics require clear acoustic paths — high-wind sites, heavy-traffic corridors, and industrial zones generate baseline noise that triggers false tamper alerts. Disable audio analytics in these environments or accept elevated false-positive rates.
• Motorized zoom drives require periodic inspection on salt-spray or dusty sites. Specify biennial lens-mechanics servicing on coastal perimeters or desert installations to prevent focus-ring binding from corrosion or mineral buildup.

The SRXE4-8X31-EBT-IR1 is the right choice for integrators deploying Federal-compliant perimeter surveillance on extended fence lines, critical-infrastructure corridors, and outdoor access points where single-camera zoom coverage, thermal extremes, and FIPS 140-3 encryption are operational requirements. Explore the full Pelco catalog for alternative form factors and thermal imaging options.
