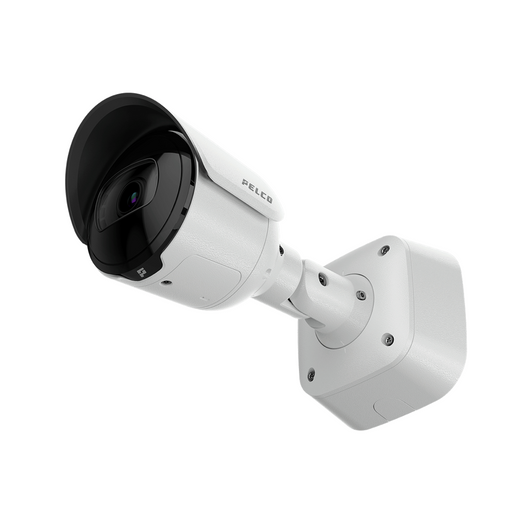

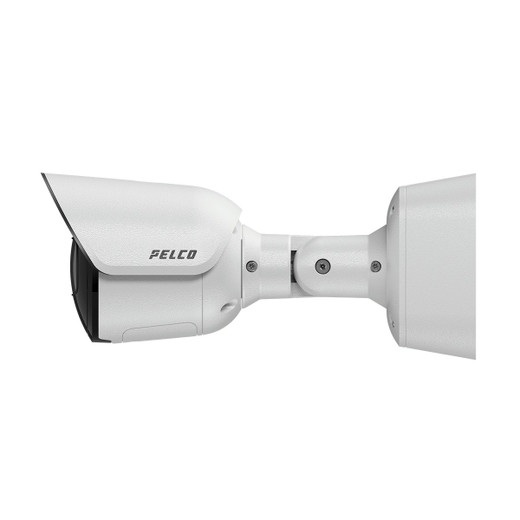

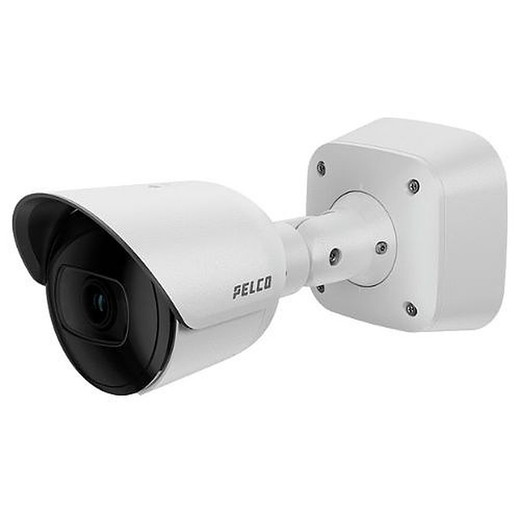

Pelco SRXE4-6V9-EBT-IR1 4MP Outdoor Bullet Camera
The Pelco SRXE4-6V9-EBT-IR1 is a professional-grade outdoor bullet camera built on the Sarix Enterprise 4 platform. It delivers 4MP resolution at 60 fps with a motorized 4.4–9.3 mm varifocal lens (32–109° HFOV), integrated 850 nm IR illumination (~70 m range), and enterprise-class cybersecurity including FIPS 140-3 Level 3 encryption, TPM, and Secure Boot. Purpose-built for perimeter protection, fence line monitoring, and access control point surveillance where weather resistance, flexible framing, and compliance matter.
Key Features
- 4MP Resolution at 60 fps: Captures 2560 × 1440 pixels at 60 frames per second — sufficient detail for facial recognition and vehicle plate reading across typical perimeter ranges, without the storage penalty of 8MP or higher. 60 fps eliminates motion blur on fast-moving objects, critical for fence line and entrance monitoring.
- Motorized Varifocal Lens (4.4–9.3 mm, 32–109° HFOV): Post-installation lens adjustment means you can reframe coverage without repositioning the camera body — a real time and cost saver during commissioning and when coverage requirements shift. 32° at maximum zoom captures long-distance perimeter details; 109° at minimum focal length covers wider entrance areas.
- Integrated IR Module (850 nm, ~70 m range): Built-in infrared eliminates the need for separate illuminators on most outdoor perimeter deployments. 70 meters covers typical fence lines and parking areas; 0.001 lux monochrome and 0.003 lux color minimum illumination ensure usable video in complete darkness without oversaturation.
- 130 dB SureVision Wide Dynamic Range: Handles extreme backlight scenarios — sunlit parking lots, south-facing fence lines, vehicle headlights — without washing out details in shadows. Real benefit when you need legible video across glare and deep shadow in a single frame.
- H.265 & H.264 Compression: H.265 cuts bandwidth and storage roughly 40–50% versus H.264 at equivalent quality, meaningful when recording 24/7 across multiple cameras. Falls back to H.264 or Motion JPEG for systems with older VMS platforms that don't support H.265 yet.
- On-Board Pelco Smart Analytics: Person & vehicle detection, direction violation, loitering, beam crossing, crowd detection, audio analytics, and tamper alert run locally on the camera — no GPU server required. Reduces false alarms through edge-based filtering and enables instant alerts without cloud dependency.
- FIPS 140-3 Level 3, TPM, Secure Boot, 802.1X: Enterprise cybersecurity standards for regulated environments and government contracts. FIPS 140-3 Level 3 means encrypted storage and cryptographic module validation; TPM isolates security keys; 802.1X enforces port-level network authentication. Non-negotiable for CMMC, NDAA Section 889, and federal integrations.
- IP66/IP67/IP68 (2 m/2 hr), IPX9K, NEMA 4X, IK11: IP68 submersion for 2 meters for 2 hours covers temporary flooding and wash-down scenarios; IPX9K resists high-pressure jets. NEMA 4X stainless enclosure withstands salt spray and chemical exposure on coastal or industrial sites. IK11 impact rating means the camera body survives direct strikes — fence-mounted deployments take a beating.
- PoE+ or 12/24 Vdc: Draws 13W or less via standard 802.3at PoE+, so it won't consume excessive switch power budget on multi-camera deployments. Dual power option allows battery backup or independent power where PoE isn't available.
- Operating Range –50°C to +65°C: Deploys in arctic environments and hot climates without performance degradation. Real spec for northern perimeter sites and desert warehouse perimeters.
- NDAA Section 889 & TAA Compliant, 5-Year Warranty: Clear for U.S. federal and defense contractor procurement. 5-year warranty reduces risk on outdoor deployments where replacement or repair logistics are complex.
Integration & Compatibility
The SRXE4-6V9-EBT-IR1 (often searched as SRXE4 6V9 EBT IR1) supports ONVIF Profile S, T, G, and M, enabling integration with third-party network video recorders and video management platforms such as Milestone XProtect, Genetec, and Hanwha SmartVMS. Plug-and-play edge analytics reduce reliance on backend servers — deploy it in remote perimeter locations with minimal backhaul bandwidth. MicroSD card storage provides local failsafe recording if network connectivity drops.
When to Choose a Different Model
If you need wider coverage (>109° field of view) without repositioning, consider a fixed wide-angle lens variant in the same Sarix Enterprise family. If IR range beyond 70 meters is essential, or if you require thermal imaging to detect intrusion heat signatures, explore thermal-specific models from the same manufacturer. For interior access points or hallways without weather exposure, lighter-duty indoor IP cameras reduce cost without sacrificing image quality.
Deployment Considerations
Mount the SRXE4-6V9-EBT-IR1 on poles, walls, or fence brackets — the motorized varifocal lens means you can adjust zoom and focus after installation without crane access. PoE+ power simplifies wiring; long cable runs (>100 m) may require PoE injectors or powered switches. In high-RF-interference environments (near radar or cellular towers), shield network cables to prevent analytics false-triggers. Test IR performance during commissioning at night — 70 m range assumes clear atmosphere; fog or heavy dust reduces effective range.
Frequently Asked Questions
Q: Does the SRXE4-6V9-EBT-IR1 support Milestone XProtect or Genetec?
A: Yes. ONVIF Profile S, T, G, and M compliance ensures integration with Milestone XProtect, Genetec, and other major VMS platforms. Verify your VMS version supports H.265 decompression if you want to leverage bandwidth savings; older versions may fall back to H.264.
Q: What is the maximum IR range?
A: Approximately 70 meters (230 feet) under clear atmospheric conditions. Fog, rain, dust, and reflective surfaces reduce effective range. Test during site commissioning to confirm adequate coverage for your perimeter layout.
Q: Is the SRXE4-6V9-EBT-IR1 NDAA Section 889 compliant?
A: Yes. The SRXE4-6V9-EBT-IR1 is NDAA Section 889 and TAA compliant, clearing it for U.S. federal and defense contractor procurement.
Q: Can I adjust the lens after installation?
A: Yes. The motorized 4.4–9.3 mm varifocal lens allows post-install focus and zoom adjustment via the web interface or mobile app — no physical repositioning required.
Q: What power options are available?
A: The SRXE4-6V9-EBT-IR1 supports PoE+ (IEEE 802.3at, ~13W) or external 12/24 Vdc power. PoE+ is recommended for single-camera deployments; external DC is useful for battery backup or off-grid sites.
Q: What is the warranty period?
A: Pelco includes a 5-year warranty, covering defects in materials and workmanship under normal operating conditions.
The SRXE4-6V9-EBT-IR1 is a solid perimeter workhorse — I've spec'd this camera on dozens of outdoor fence-line and access-control jobs. The motorized varifocal lens is the real differentiator here: it eliminates the guesswork during design and gives you adjustment flexibility after install. The 70-meter IR range covers most standard perimeter setups without auxiliary lighting, and the IK11 impact rating means it'll survive mounting abuse on fence posts and pole brackets.
Technical Highlights:
- 4MP at 60 fps with H.265: You get detail for facial recognition and plate reading while cutting storage overhead roughly 40–50% versus H.264. On a 24/7 multi-camera install, that bandwidth and disk savings compound fast.
- FIPS 140-3 Level 3 + TPM + Secure Boot: Not just checkboxes for compliance audits — real hardware-backed encryption means your camera won't leak analytics or video metadata if someone grabs the device off a pole. Critical for federal and CMMC-regulated sites.
- IP66/IP67/IP68 + IPX9K + NEMA 4X: The triple-rating approach tells me Pelco is serious about outdoor durability. IP68 survives 2-meter temporary submersion (flooding scenarios), IPX9K handles high-pressure wash-down, and NEMA 4X stainless hardware resists salt and industrial corrosion. Real-world insurance for harsh perimeters.
- On-board Smart Analytics (Person/Vehicle Detection, Loitering, Beam Crossing): Edge processing eliminates the need for a separate GPU appliance — detection runs locally, alerts fire instantly, and you don't lose video to network latency or cloud queues. Makes a measurable difference on remote fence lines with limited backhaul.
Deployment Considerations:
- The motorized varifocal lens requires a stable power source (PoE+ or 12/24 Vdc) to initialize motor focus. If power drops during adjustment, you may need to cycle it twice to re-sync lens position — not a showstopper, but worth testing during commissioning.
- 70-meter IR range assumes clear air. Fog and dust cut that range significantly — I always field-test at night during commissioning to confirm coverage meets the design before handing the site off. Don't trust the datasheet spec on a foggy coastal perimeter.
- H.265 requires VMS support; older Milestone or Genetec versions may not decompress it natively. Confirm your backend handles H.265 before defaulting to it — H.264 fallback works fine if your storage headroom is adequate.
The SRXE4-6V9-EBT-IR1 fits best on outdoor perimeter, fence-line, and access-control deployments where NDAA compliance, rugged IK11 construction, and enterprise cybersecurity are hard requirements. Pair it with a Pelco IP camera ecosystem and you'll integrate smoothly; the ONVIF compliance also means it works just fine in mixed-brand VMS architectures if needed.
