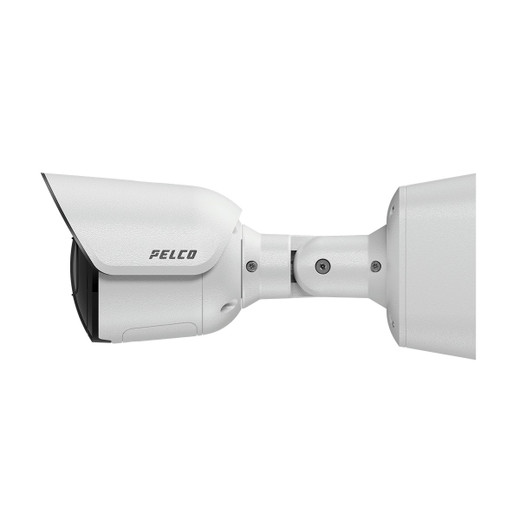

Pelco SRXE4-2V12-EBT-IR1 4MP Enterprise Bullet Camera
The Pelco SRXE4-2V12-EBT-IR1 is a professional-grade 4MP outdoor bullet camera engineered for high-security perimeter and access-control surveillance in regulated and critical-infrastructure deployments. Built on a 1/1.8-inch progressive scan CMOS sensor with 130 dB SureVision wide dynamic range, this camera delivers superior clarity in mixed-lighting environments—critical when you're monitoring surfaces that reflect sunlight (wet pavement, glass, metal fencing) or rapidly transition between daylight and shadow. The motorized 4.4–9.3mm varifocal lens provides field-of-view adjustment from 32 to 109 degrees HFOV without requiring a lens swap, meaning you can dial in coverage precision during installation rather than guessing at lens selection beforehand. Integrated 850nm IR illumination extends visibility to approximately 70 meters in complete darkness, eliminating the need for external lighting infrastructure on fence lines and building perimeters.
Key Features
- 4MP Resolution (2560 × 1440): Captures sufficient detail for person and vehicle identification across full-frame forensic analysis, reducing review time when investigating incidents.
- 130 dB SureVision WDR: Handles extreme backlight and high-reflectance scenes without requiring manual exposure compensation—saves configuration time and reduces false triggers in dynamic outdoor lighting.
- 850nm IR with ~70m Range: Provides 0.001 lux mono sensitivity; extends night surveillance range to parking lots and perimeter fences without separate floodlights, cutting infrastructure costs.
- Motorized Varifocal Lens (4.4–9.3mm): Remote zoom and focus post-installation means field-of-view adjustments don't require technician callbacks; reduces deployment delays and lens inventory overhead.
- On-Camera Analytics: Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, and Audio Analytics enable rule-based alerting without requiring external analytics servers, reducing latency and system complexity.
- FIPS 140-3 Level 3 Encryption with TPM: Hardware-backed cryptography and Secure Boot meet zero-trust and federal compliance mandates; 802.1X authentication prevents unauthorized device provisioning on your network.
- ONVIF Profiles S, T, G, M: Ensures plug-and-play integration with Milestone, Genetec, Axis Camera Station, and other major VMS platforms—no custom drivers or firmware forks required.
- IP68/IK11 Durability: Survives full submersion (2m/2 hours) and high-impact vandalism attempts; NEMA 4X and IPX9K ratings handle salt spray and high-pressure washdowns in coastal and industrial environments.
- H.265 Codec: Reduces storage and bandwidth requirements 40–60% versus H.264 on identical bitrate targets—meaningful when recording 24/7 across dozens of cameras on bandwidth-constrained networks.
- Wide Operating Range (−50°C to +65°C): Operates reliably in arctic facilities and sun-exposed outdoor installations without supplemental heating or cooling; PoE+ or external 12/24 Vdc power options suit varied infrastructure.
Integration & Compatibility
The SRXE4-2V12-EBT-IR1 integrates directly with any ONVIF-compliant VMS—no proprietary firmware required. NDAA Section 889 and TAA compliance ensure government procurement eligibility. Built-in person and vehicle detection reduce false-positive alerts compared to motion-only triggering. PoE+ power draw remains under typical 60W budget allocations, and H.265 encoding reduces recorded bitrate 40–60% depending on scene complexity, easing storage planning on 24/7 retention schedules.
Frequently Asked Questions
Q: Does the SRXE4-2V12-EBT-IR1 support ONVIF profiles required by my VMS?
A: Yes. The SRXE4-2V12-EBT-IR1 supports ONVIF Profiles S, T, G, and M, covering standard network video management systems including Milestone XProtect, Genetec Security Center, and Axis Camera Station. Verify your specific VMS product roadmap for profile version compatibility.
Q: What's the actual power draw of the SRXE4-2V12-EBT-IR1, and will it work on standard PoE switches?
A: The camera operates within PoE+ (802.3at, ~25.5W) or external 12/24 Vdc power budgets. Standard PoE (802.3af, 13W maximum) may be insufficient depending on IR intensity and lens motor duty cycle. Confirm your switch specifications before provisioning.
Q: Is the SRXE4-2V12-EBT-IR1 compliant with NDAA Section 889 and TAA?
A: Yes. The SRXE4-2V12-EBT-IR1 meets NDAA Section 889 and TAA requirements, making it eligible for federal and regulated facility procurements.
Q: Can the IR range be extended beyond 70 meters?
A: No. The integrated 850nm IR illumination is rated for approximately 70 meters in complete darkness. For longer-range night coverage, deploy multiple cameras or consider external IR illumination infrastructure alongside camera placement.
Q: What compression formats does the SRXE4-2V12-EBT-IR1 support?
A: The camera supports H.265, H.264, and Motion JPEG. H.265 is recommended for bandwidth-constrained and long-retention deployments; it reduces storage footprint 40–60% versus H.264 at equivalent quality.
Q: How does the motorized varifocal lens save installation time?
A: The 4.4–9.3mm motorized lens allows field-of-view tuning via remote zoom and focus from the NVR or management console. You don't need to physically swap lenses or dispatch a technician for coverage adjustments—reducing installation callbacks and lens inventory costs.
When to Choose a Different Model
The SRXE4-2V12-EBT-IR1 targets deployments with strict compliance requirements (federal, critical infrastructure, regulated facilities). If FIPS 140-3 and TPM-backed cryptography aren't mandated, the Sarix Pro 4 series delivers comparable optical performance at lower total cost. If you need higher resolution or longer IR range, evaluate 5MP or 8MP variants within the same Pelco Sarix line. For applications without outdoor exposure or IR requirements, consider indoor fixed-lens models to reduce hardware cost.
The SRXE4-2V12-EBT-IR1 positions itself as a compliance-first enterprise platform. Its 130 dB SureVision WDR and 1/1.8-inch sensor deliver measurable advantages in high-contrast scenes; the motorized 4.4–9.3mm varifocal lens eliminates field-of-view miscalculations and eliminates lens swaps. FIPS 140-3 Level 3 certification and TPM-backed cryptography address zero-trust architecture mandates in federal and regulated verticals.
Technical Highlights:
- 130 dB SureVision WDR: Outperforms entry-level 100–110 dB WDR cameras in mixed-lighting environments; 30dB additional headroom directly translates to reduced false-motion triggers on reflective surfaces and rapid lighting transitions.
- H.265 with 60 fps: Delivers 40–60% bitrate reduction versus H.264 at equivalent quality; enables 24/7 recording across 30+ cameras on single gigabit switches without transcoding latency.
- IP68/IK11 Durability: Survives full submersion (2m/2hr) and high-impact vandalism; IK11 means it tolerates direct hammer strikes—essential in open-air industrial and prison perimeter applications.
- FIPS 140-3 Level 3 + TPM: Hardware module signs firmware on every boot; 802.1X authentication prevents rogue devices on your network; satisfies DoD and GSA Schedule compliance audits without workarounds.
Deployment Considerations:
- PoE+ draw (~25.5W) exceeds standard 802.3af budget—verify your switch supports 802.3at before installation. External 12/24 Vdc is an alternative if power budget is tight.
- IR range caps at ~70m; longer distances require multiple cameras or external floodlights. Plan coverage grids accordingly on large perimeters.
- Motorized varifocal requires post-install tuning via VMS or management console; initial deployment needs network connectivity during commissioning. Budget 15–20 minutes per camera for FOV adjustment.
The SRXE4-2V12-EBT-IR1 is purpose-built for federal facilities, critical infrastructure, and regulated warehouses where compliance documentation and FIPS-validated encryption are non-negotiable. If your requirement is "compliance-grade 4MP perimeter surveillance with hardware-backed cryptography," this model eliminates evaluation friction.
