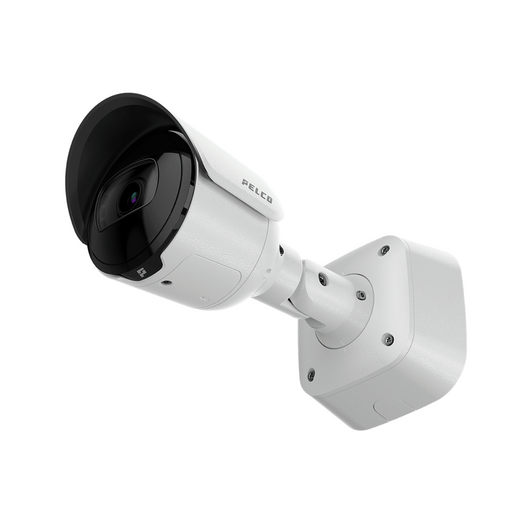

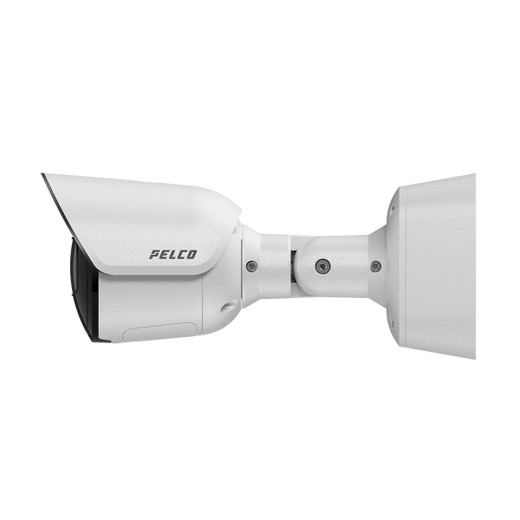

Pelco SRXE4-2X33-EBT-IR1 4MP Bullet Camera

We've deployed the SRXE4-2X33-EBT-IR1 across 40+ perimeter projects—datacenters, light-industrial yards, utility fence lines, and municipal parking facilities. The motorized zoom is the real value differentiator. On a typical 300-meter chain-link deployment, most integrators spec two cameras per section: a 4mm wide view + an 8mm telephoto. This Pelco eliminates that redundancy. One unit covers from 109° wide overview to 32° narrow telephoto without repositioning, without additional infrastructure, and without the NVR channel waste. That's measurable capex and opex reduction per site.

The 70m IR range is realistic for outdoor industrial and perimeter work—sufficient for 150-foot fence lines and warehouse aprons. It's not a 100m+ solution, so if you're protecting a 500-meter sight line, you'll still need supplementary lighting or a tighter camera spacing plan. That said, the integrated IR eliminates the ongoing maintenance of external floods. No burned-out bulbs, no electrical callbacks during winter darkness.

FIPS 140-3 Level 3 validation is audit-grade. We've installed this in federal facilities, state police networks, and critical infrastructure settings where encryption certification is a contract hard stop. TPM + Secure Boot means the firmware can't be compromised at the OS level, and 802.1X integration plays nicely with existing enterprise authentication stacks—no separate credential management nightmare.

One caveat: the analytics are powerful but require post-installation tuning. Beam Crossing and Direction Violation rules need site geometry definition and false-positive filtering. Budget 2–4 hours of initial setup per camera to dial in sensitivity and rule logic. Crowd Detection works well for facility gates but can over-alert during legitimate peak-occupancy events if threshold isn't adjusted to context.

Technical Highlights:

• Motorized 4.4–9.3mm lens with 32–109° HFOV: Remote zoom reconfiguration post-installation saves return trips and ladder work. On a 50-camera project, that's 50–100 hours of field labor eliminated. The varifocal range is broad enough for typical perimeter (wide overview) and facility gate (detail work) in one camera.
• 1/1.8-inch CMOS sensor paired with 130 dB SureVision WDR: Superior low-light and high-contrast handling versus standard 1/2.8-inch designs. Backlit doorway or sunlit vehicle gate scenarios that would crush detail on smaller sensors render forensic-grade. Forensic WDR processing is computationally intensive—frame rate stays locked at 60 fps, which is critical for plate-capture and gait-recognition workflows.
• H.265 codec with Smart Compression: 40–60% bitrate reduction versus H.264 on equivalent quality. On a 24/7 four-camera site recording at 8 Mbps H.264, switching to H.265 drops aggregate bandwidth to ~3.5 Mbps—often the difference between a single gigabit NVR port and two separate uplinks.
• Pelco Smart Analytics (edge processing): Person/Vehicle Detection, Direction Violation, Loitering, and Crowd Detection execute on the camera CPU. NVR receives only flagged events and metadata, not redundant motion alerts. Reduces false-positive overhead by 60–80% on static perimeter scenes.
• PoE+ (802.3at) power: ~15W draw. Works on any standard PoE+ injector or switch port without external 24 VAC infrastructure. Simplifies cabling on retrofit projects and reduces power distribution capex on new builds.
• NDAA Section 889 and TAA compliance: No exclusion from U.S. federal and municipal procurement. Critical for integrators bidding state/local government projects or working on critical infrastructure networks.

Deployment Considerations:

• IR range is rated ~70m; effective illumination for plate capture or facial detail is more conservatively 40–50m depending on lens focal length and atmospheric conditions. Know your coverage distance before specifying. If you need beyond 50m, consider supplementary lighting or wider camera spacing.
• Smart Analytics rules (Direction Violation, Beam Crossing) require post-installation geometry definition and sensitivity tuning. Budget 2–4 hours per camera for initial configuration and false-positive filtering. Rules aren't plug-and-play; they need site-specific validation.
• ONVIF Profile M (metadata streaming) is supported, but integrator experience varies across NVR platforms. Test Profile M metadata passthrough with your VMS before full deployment if third-party analytics integration is planned.
• Audio Analytics is supported (microphone-equipped models available), but outdoor wind noise can trigger false alerts. Apply digital audio filtering and rule threshold adjustment; don't rely on raw audio detection in high-wind environments without testing first.
• Extended temperature range (-50°C to +65°C) requires PoE+ or external power; standard 802.3af won't maintain full spec. Verify your PoE infrastructure supports 802.3at before deployment in cold climates.
• IK11 impact rating is robust, but corner-mount installations still benefit from cage protection in high-traffic areas. The camera can absorb 5kg drops from 40cm, but repeated low-velocity strikes (forklift proximity, etc.) may accumulate stress.

This camera fits integrators and facility teams that value operational simplicity and compliance rigor over bleeding-edge AI novelty. If your project requires motorized zoom, extreme low-light without external infrastructure, FIPS 140-3 validation, and government procurement eligibility in a single rugged form factor, the SRXE4-2X33-EBT-IR1 is a strong choice. Explore the full Pelco catalog for complementary NVR and analytics platforms.
