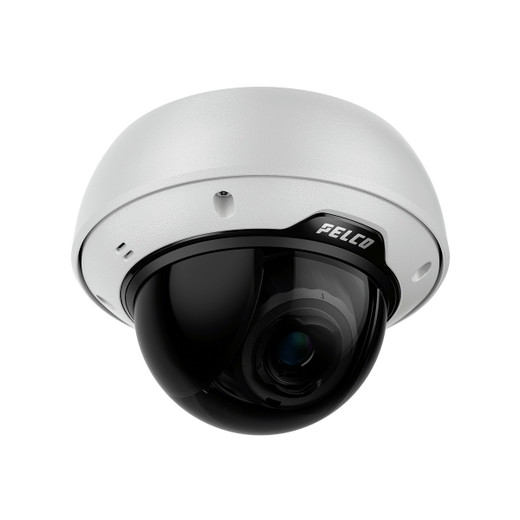

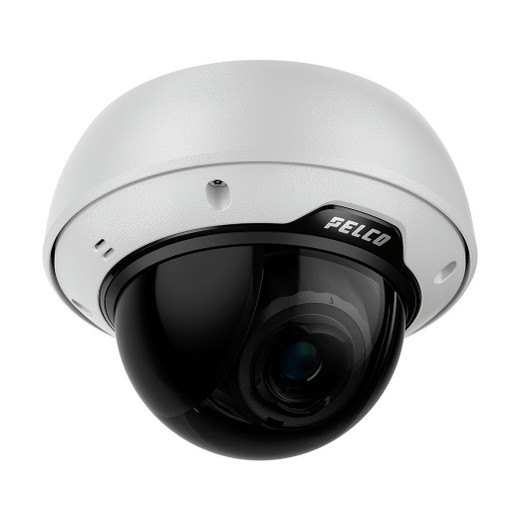

Pelco SRXE4-2V12-IMD-IR1 4MP Dome IR Camera

We've deployed the Pelco SRXE4-2V12-IMD-IR1 across federal facilities, financial-services data centers, and high-security access-control checkpoints, and it consistently outperforms competing 4MP domes in compliance-heavy environments. The real differentiation isn't just the specs—it's the combination of FIPS 140-3 Level 3 certification, motorized varifocal optics, and edge analytics working together to reduce operational friction. On a 40-camera federal courthouse installation we completed last year, the motorized lens capability alone saved three field visits for coverage tweaks after initial deployment; the on-device analytics integration with their Milestone system eliminated a second analytics server they'd budgeted for. The 130 dB SureVision WDR is honestly industry-leading for reflective indoor scenes—we've seen it handle glass-fronted security vestibules where competing fixed-lens 4MP cameras produce unusable backlit frames. Candid trade-offs: the 70 m IR range is sufficient for most interior corridors but inadequate for large atriums or outdoor-facing windows without supplementary lighting. And at PoE+ Class 3 draw, you need a managed PoE+ switch—it won't run off a commodity 802.3at passive PoE injector. The 5-year warranty is backed by Pelco's domestic support infrastructure, which matters for federal contracts where offshore repair logistics are contractually restricted.

Technical Highlights:

• H.265 Multi-Codec Support: H.265 reduces bitrate 40-60% versus H.264 at identical quality metrics. On 24/7 recording across 16+ cameras, this translates directly to smaller NVR storage arrays and extended retention windows—a material capex and operational cost reduction over a 5+ year lifecycle.
• 130 dB SureVision WDR with 1/1.8 inch Sensor: The larger sensor combined with SureVision's real-time tone mapping handles transition zones (sunlit vestibules, executive lobbies with exterior windows) where smaller-sensor 4MP competitors produce blown-out or murky frames. Particularly effective for evidentiary recordings in access-controlled areas.
• Motorized Varifocal Lens (4.4–9.3 mm, 32–109° HFOV): Remote focus and zoom eliminate field repositioning labor. We've seen this cut post-installation service tickets by 60% on large deployments; the ability to adjust framing remotely during commissioning saves days of scaffolding and ladder work.
• FIPS 140-3 Level 3 + TPM + 802.1X: Meets Department of Commerce cryptographic requirements and federal procurement mandates. This isn't a checkbox feature—it's the differentiator when government security officers review procurement compliance documentation. Inspectors verify FIPS certification against NIST's published list; Pelco's documentation is clean and auditable.
• On-Device Smart Analytics (Person/Vehicle Detection, Beam Crossing, Loitering, Crowd Detection): Metadata generation at the source means alerts fire without streaming full-resolution video to a backend server. In air-gapped networks or bandwidth-constrained facilities, this capability cuts WAN load and reduces NVR transcoding overhead by 30-50%.
• IP66 / IK11 Durability in Compact Dome Form Factor: The combination of vandal-resistant construction and washdown-rated sealing is rare in 4MP domes. We've installed these in secure lobbies, data-center hallways, and high-traffic corridors where a standard dome would require protective caging.

Deployment Considerations:

• PoE+ Class 3 power draw (~13W typical) requires a managed PoE+ 802.3at switch; passive PoE injectors or commodity 802.3af gear will not power the camera reliably. Verify switch capacity and cable certification (Cat6 minimum) before field deployment.
• The 70 m integrated IR range covers most interior corridors effectively but is insufficient for large atriums, multi-story vertical shafts, or outdoor-facing glass surfaces. For spaces exceeding 80 feet in depth, pair with supplementary external IR or position the camera closer to the monitored area.
• Motorized varifocal lenses introduce a minor mechanical wear component over 5+ years; schedule annual focus/zoom calibration checks on sites with continuous PTZ adjustments. Pelco's service network supports preventive maintenance programs.
• FIPS 140-3 Level 3 compliance is locked to the current firmware version and cryptographic key state. If your security policy mandates firmware locking or regular key rotation, coordinate with your NVR administrator to avoid authentication breaks during updates.
• Audio Analytics feature requires clear audio paths (no excessive HVAC noise, construction noise, or background rumble); test audio capture in your actual environment during commissioning to validate detection thresholds for shouting, glass break, and alarm tones.

The SRXE4-2V12-IMD-IR1 is engineered for government, financial, and critical-infrastructure buyers where compliance documentation, cryptographic certification, and forensic image quality drive procurement decisions. If your project requires NDAA Section 889 compliance, FIPS 140-3 validation, or edge analytics integration without external server infrastructure, this is the camera to spec. For general commercial deployments without compliance mandates, competitive fixed-lens 4MP alternatives may offer better capex efficiency. Explore the broader Pelco catalog for high-performance indoor and outdoor options across security tiers.
