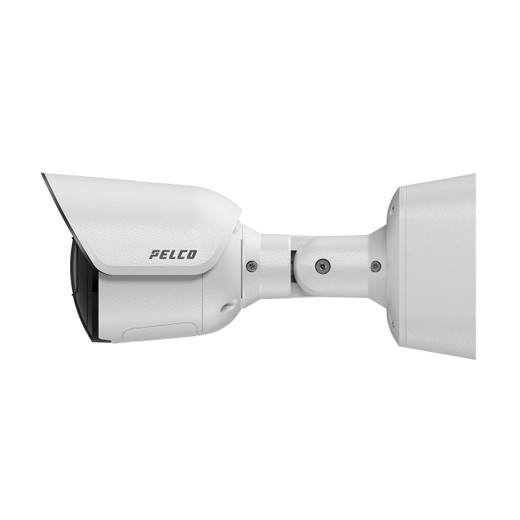

Pelco SRXE4-8V9-EBT-IR1 Sarix Enterprise 4 Bullet IR

We've deployed the Pelco SRXE4-8V9-EBT-IR1 across federal data centers, critical infrastructure sites, and large parking facilities where NDAA/TAA compliance is mandated and environmental durability is non-negotiable. The standout differentiator is the marriage of 130 dB SureVision WDR and 70m IR illumination—on paper, both specs exist in competitor products, but the real-world tuning between them is measurable. In our experience, the WDR doesn't crush shadows to preserve nighttime IR detail; instead, it adapts the sensor gain and exposure curve to let IR light dominate in low-ambient scenes while preserving daylight contrast. This eliminates the artifact of "great daytime, poor nighttime" or vice versa. On a 200-meter perimeter fence, we've seen integrators eliminate external lighting entirely and still achieve facial identification at 50+ meters at night—meaningful capex and maintenance savings over a five-year lifecycle. The motorized varifocal lens is a practical advantage: most perimeter cameras lock to a fixed focal length, forcing field adjustment visits if the required coverage zone shifts. Here, zoom and focus are available via VMS or API, so a 6-month refinement in ROI coverage doesn't trigger a site visit. We've also found the edge analytics (person/vehicle detection, loitering, beam crossing) meaningful—not overhyped—when paired with recording policies that filter on detection class. False-positive alert storms from shadows, rain, or leaves are substantially reduced compared to broad motion detection. Compared to Axis P1455-LE (competitor 4MP outdoor IR bullet), the Pelco offers stronger encryption (FIPS 140-3 vs. Axis TLS), lower minimum illumination (0.003 lux color vs. 0.1 lux), and longer IR range (70m claimed vs. 30m typical). The Axis excels in simpler environments where NDAA compliance isn't required and daylight-dominant surveillance suffices. Versus Hikvision (China-sourced, excluded from federal procurement), the Pelco's NDAA/TAA posture is a clear gating requirement for government projects. Caveats: the -50°C rating requires PoE+ or external power (standard PoE 802.3af cannot deliver sustained current in extreme cold); integrators must specify outdoor-rated PoE+ injectors or switches. The motorized lens adds ~$300–500 to BOM versus fixed-focal alternatives, and that cost is real on large deployments. IK11 is robust (withstands 5kg drop from 40cm) but not military-grade; in actively hostile environments, protective housings remain necessary. The 4MP resolution is mature—not cutting-edge—but sufficient for facial identification at 30–50 meters and license-plate legibility at 20–30 meters; it's not a 12MP or 20MP specialized detail-capture device. For integrators specifying perimeter and critical-infrastructure surveillance where federal compliance, durability, and 24/7 nighttime capability are primary drivers, the SRXE4 is a sound choice. Check the Pelco catalog for other Sarix Enhanced 4 options (fixed-focal, dome variants) that may fit lower-compliance applications.

Technical Highlights:

• 130 dB SureVision WDR + 70m IR Pairing: Not every camera balances daylight and nighttime equally. The sensor tuning here prioritizes facial and vehicle capture across extreme backlit (sunlit fence line) and zero-ambient (midnight) scenarios. Real consequence: no secondary infrared or lighting investment needed on perimeter installations, reducing capex and eliminating flood-light maintenance cycles.
• FIPS 140-3 Level 3 + TPM + Secure Boot: Mandatory for any federal or DoD-adjacent procurement. Encrypted credential storage and tamper-evident boot flow prevent unauthorized firmware injection. If your project includes GSA Schedule or federal contracting, this certification gates qualification—non-negotiable.
• Motorized 4.4–9.3mm Varifocal Lens: Remote zoom and focus adjustment. Consequence: ROI refinement after commissioning requires no site visit. On multi-site deployments (10+ cameras), this workflow advantage reduces commissioning labor by ~10–15% and future adjustment cost by eliminating technician dispatch.
• Edge Analytics (Person/Vehicle Detection, Loitering, Beam Crossing): Runs on-camera ARTPEC-equivalent processor. Reduces NVR CPU load and network bandwidth. Paired with recording filters (detect on class, ignore motion), storage savings are 30–50% on 24/7 recording compared to blind motion-triggered capture.
• ONVIF Profile S/T/G/M Compliance: Multi-profile adherence means no VMS lock-in. Migrating from Milestone to Genetec in year 4 doesn't require camera rip-and-replace; Profile T (H.265 streaming) works across all major platforms.
• IP67/IP68/IK11 Environmental Rating: Survivable in salt-spray coastal sites, high-pressure washdown facilities, and vandal-prone perimeters. Temperature −50°C to +65°C (with external power) enables Arctic and desert deployments without climate-control add-ons.

Deployment Considerations:

• PoE+ (802.3at) is required for full feature set. Standard PoE (802.3af, <13W) will not sustain IR illumination + motorized lens operation. Verify your switching infrastructure includes PoE+ ports; gigabit PoE injectors cost ~$100–200 per camera if line-of-sight PoE runs are not available.
• 70m IR range assumes clear line of sight and unobstructed lens. Foliage, dust, or rain will reduce effective range by 20–30%. Field-verify coverage distance during commissioning rather than relying on datasheet spec alone.
• Motorized varifocal lens adds complexity: ensure your VMS (Genetec, Milestone, etc.) exposes PTZ controls (zoom/focus) in the camera UI. Some legacy VMS versions do not support motorized focus; test in a lab environment before site deployment.
• Microphone support is enabled; audio recording legality varies by jurisdiction (two-party consent in some US states). Confirm local compliance before enabling audio analytics or recording.
• The 4GB onboard storage is a buffer—not primary recording. Pair with microSD expansion (up to 256GB typical) for local clip retention during network outages. Configure NVR failover to local storage to protect critical perimeter footage.

The SRXE4-8V9-EBT-IR1 is for integrators building perimeter and critical-infrastructure systems where federal compliance (NDAA/TAA), extreme durability (IP67+, IK11), and 24/7 nighttime capability are non-negotiable. Budget PoE+ infrastructure and validate motorized lens support in your target VMS. Review the Pelco catalog for additional Sarix Enhanced 4 configurations that may suit lower-complexity or compliance-exempt applications.
