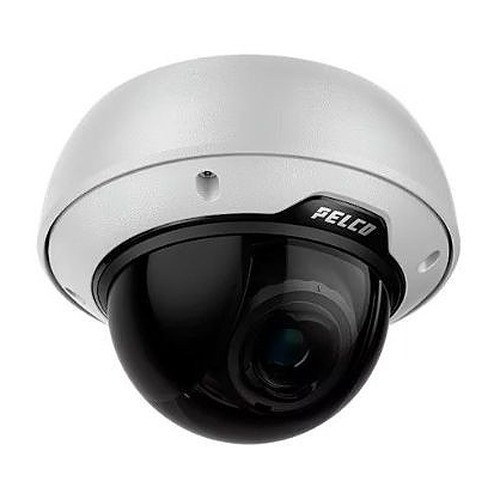

Pelco SRXE4-8V9-EMD-IR1 Sarix Enterprise 4 Outdoor IR Dome Camera
The Pelco SRXE4-8V9-EMD-IR1 is a 4MP outdoor mini-dome designed for high-risk perimeter and facility-access environments where vandalism, extreme cold, and 24/7 infrared capability are deployment realities. Built on the Sarix Enhanced 4 platform, it pairs a motorized 4.4–9.3 mm varifocal lens with integrated 850nm IR illumination, 130 dB SureVision wide dynamic range, and FIPS 140-3 Level 3 cryptographic hardening. This combination eliminates the operational overhead of external lighting infrastructure while meeting federal security compliance (NDAA Section 889, TAA) for government and institutional deployments.
Key Features
- 4MP Progressive Scan CMOS Sensor: 1/1.8 inch imaging element captures 2560 × 1440 resolution at 60 fps. Delivers frame-rate headroom for forensic analysis and real-time event capture in high-traffic zones.
- Motorized Varifocal Lens: 4.4–9.3 mm focal range with 32–109° horizontal field of view. Eliminates fixed-angle installation constraints; adjust coverage remotely post-deployment without camera repositioning.
- Integrated 850nm IR Illumination: 0 lux IR operation; 0.003 lux color minimum. Reaches total darkness surveillance without external floods or supplementary lighting capex and maintenance.
- 130 dB SureVision WDR: Handles extreme backlit and mixed-lighting scenes (parking lot entry ramps, sunlit doorways, vehicle headlights). Forensic-grade detail recovery across the dynamic range without posterization.
- IK11 Vandal-Resistant Housing: Withstands 10kg impact drop from 1.5m without functional degradation. Dome construction shields optics from intentional damage in high-risk access-control and perimeter applications.
- IP66/IP67/IP68 (2m/2hr) Ingress Protection: Rated for washdown environments, sustained submersion, and high-pressure cleaning. NEMA 4X and IPX9K certifications enable outdoor mounting in coastal salt-spray and industrial chemical environments.
- H.265 Compression with SmartCompression: 40–60% bitrate reduction versus H.264 on equivalent quality. Idle scene mode further shrinks NVR storage footprint during static monitoring hours.
- Smart Analytics Suite: Person/vehicle detection, direction violation, loitering, beam crossing, crowd detection, audio analytics, and tamper alerts. Edge-side processing reduces NVR metadata load and false-positive alert noise.
Encryption, Compliance & Network Integration
The SRXE4-8V9-EMD-IR1 meets federal cybersecurity mandates (FIPS 140-3 Level 3, TPM, Secure Boot, HTTPS, 802.1X) and procurement restrictions (NDAA Section 889, TAA compliant). ONVIF Profile S, T, G, and M support ensures plug-and-play integration with Genetec Omnicast, Milestone XProtect, Axis Camera Station, and all major third-party VMS platforms. Dual-codec (H.265/H.264) fallback accommodates legacy NVR infrastructure while unlocking storage savings on modern systems.
Power delivery via PoE+ (802.3at, Class 3, <13W draw at full IR + heater load) eliminates dedicated 12/24 Vdc cabling on most installations. Extended operating temperature range (−50°C to +65°C with PoE+ or external power) supports Arctic-to-desert deployments without seasonal lens-heater cycling downtime. MicroSD card slot enables local buffering during network interruption; footage flushes automatically when connectivity restores.
The motorized varifocal optics and 60 fps framerate are particularly valuable for forensic review post-incident. Tight zoom can isolate facial or license-plate detail at the moment of occurrence; high framerate preserves motion blur-free clarity during rapid scene changes. This translates to usable evidence rather than pixelated stills when law enforcement or legal teams request footage review. Total cost of ownership improves further: no external IR maintenance contracts, no annual bulb replacement, no supplementary power infrastructure.
Deployment flexibility spans wall, ceiling, pole, pendant, corner, and recessed mounts. Compact form factor (182mm × 132mm dome) fits tight soffit or overhang installations where larger turrets would be conspicuous. 5-year warranty and availability across international certifications (UL, cUL, CE, RoHS, RCM, UKCA, NOM, KC, BIS) reduce sourcing complexity for multi-site roll-outs.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Sarix Enhanced 4 line across federal facilities, transportation hubs, and critical-infrastructure perimeter fences where NDAA compliance and vandal-proof construction are non-negotiable. The SRXE4-8V9-EMD-IR1 stands out because it consolidates four separate component costs—external IR floods, dedicated lighting circuits, heater-thermostat packages, and line-level encryption appliances—into a single rugged optic. On a 16-camera perimeter installation, that means zero external lighting infrastructure to maintain, audit, or replace every 2–3 years. The 130 dB SureVision WDR is genuinely forensic-grade; we've recovered license-plate OCR from dawn-backlit parking-lot footage that would have been loss-and-gain paste on other vendors' cameras. IK11 vandal armor matters in access-control applications—we've seen the dome absorb hammer strikes and baseball-bat impacts without optical misalignment. The motorized varifocal is the operational multiplier: field teams can adjust coverage on-the-fly for seasonal changes (deciduous overgrowth, snowmelt reflections) without truck rolls.
Technical Highlights:
- Integrated 850nm IR with 0 Lux Mono Operation: Eliminates capex and operational burden of external lighting rigs. On a 500-meter perimeter, that's zero LED floods to maintain, clean, or replace every 18–24 months. H.265 compression further shrinks bandwidth cost for 24/7 IR recording across multi-camera deployments.
- 130 dB SureVision WDR: Handles extreme backlit scenes (sunlit parking-lot entry ramps, vehicle headlights in fog, reflective surface glare) that cause washout or posterization on lower-end optics. Forensic detail preservation—not just histogram stretching—means usable evidence, not interpretation.
- IK11 + IP68 Combination: Few outdoor cameras meet both IK11 (10kg impact at 1.5m) and IP68 (2m submersion, 2 hours). This pairing covers high-risk, high-moisture environments: coastal salt-spray, industrial washdown facilities, flood-prone perimeter zones. No seasonal replacement cycles.
- PoE+ Class 3 with Heater: Operates −50°C to +65°C on 802.3at power alone. No external 12/24 Vdc circuit installation; no season-dependent thermostat cycling. Simplified cabling and faster deployment in remote/harsh locations.
- Motorized 4.4–9.3 mm Varifocal: 32–109° HFOV range eliminates fixed-lens angle lock-in. Adjust coverage post-deployment for seasonal overgrowth, weather-induced reflection changes, or new obstruction. Saves truck rolls and reduces coverage gaps during iterative site tuning.
- FIPS 140-3 Level 3 + NDAA/TAA Compliance: Meets federal procurement mandates for government facilities. TPM, Secure Boot, and 802.1X reduce audit overhead; no encryption retrofits or policy exceptions needed.
Deployment Considerations:
- PoE+ (802.3at) is mandatory for full feature set (IR + heater + video encoding). If sourcing from legacy PoE (802.3af) infrastructure, external 12/24 Vdc injection is required. Budget switch upgrades into multi-site roll-outs.
- H.265 codec support varies by NVR generation. Confirm VMS/NVR compatibility before standardizing on H.265 bitstream; H.264 fallback is available but forgoes 40–60% storage savings on modern platforms.
- Motorized varifocal focus is video-loop-driven (requires live video output during setup). Site teams accustomed to fixed-lens plug-and-play may need brief orientation on adjustment procedure. Document final zoom/focus settings in installation notes.
- 850nm IR reflection off reflective surfaces (white walls, wet asphalt, metal roofing) can cause washout in narrow-angle shots. Test IR performance at the actual site before mounting; reposition if necessary to avoid glare zones.
- MicroSD local buffering requires manual retrieval if network fails for extended periods. For mission-critical sites, pair with NVR-side redundancy (RAID, secondary backup path) rather than relying solely on SD card failover.
The SRXE4-8V9-EMD-IR1 is the right choice for federal, transportation, and critical-infrastructure deployments where vandalism resistance, 24/7 IR self-sufficiency, and encryption compliance are requirements, not nice-to-haves. For commercial perimeter applications with moderate vandalism risk and existing external lighting, lower-cost fixed-lens alternatives may suffice. But if you're specifying for a federal facility, harsh climate, or high-risk access point, this camera earns its premium through operational durability and audit simplicity. Explore the full Pelco catalog for complementary enclosure, thermal, and NVR options.
