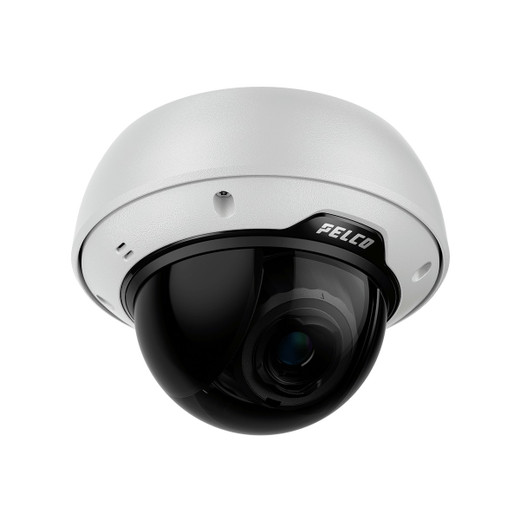

Pelco SRXE4-6V9-EMD-IR1 4MP Sarix Enterprise Dome
The Pelco SRXE4-6V9-EMD-IR1 is a 4MP outdoor mini-dome designed for enterprise surveillance in extreme environmental and lighting conditions. Built on the Sarix Enhanced 4 platform, it pairs a motorized 4.4–9.3 mm varifocal lens with integrated IR illumination, 130 dB SureVision WDR, and FIPS 140-3 Level 3 security hardening. The combination of on-board edge analytics, wide environmental tolerance (−50°C to +65°C, IP68-rated), and flexible power options (PoE+ or 12/24 Vdc) makes it suitable for perimeter security, facility entrance monitoring, parking structures, and industrial outdoor deployments where zoom flexibility and forensic color fidelity matter.
Key Features
- 4MP Resolution & Frame Rate: 2560 × 1440 at 60 fps; 1/1.8 inch progressive scan CMOS sensor. Delivers motion-sharp footage and sufficient pixel density for license-plate and facial detail over moderate distances.
- Motorized Varifocal Lens: 4.4–9.3 mm with 32–109° horizontal FOV. Enables on-site zoom adjustment without camera repositioning or lens swap; F1.4 aperture maximizes low-light performance.
- 130 dB SureVision WDR: Handles extreme backlit and mixed-lighting scenes (sunlit loading docks, vehicle headlights, reflective surfaces) without crushing shadows or blowing highlights.
- Integrated IR Night Vision: 0.001 lux color sensitivity; 0 lux with IR. Maintains color detail in twilight; IR extends usable range in total darkness without external lighting infrastructure.
- Smart Analytics: Person/vehicle detection, direction violation, loitering, beam crossing, crowd detection, audio analytics, and tamper alert. Runs locally on edge processor; reduces false-positive alert noise and VMS storage overhead.
- FIPS 140-3 Level 3 & TPM: Hardware-based encryption, Secure Boot, HTTPS, and 802.1X authentication. Meets NDAA Section 889 and TAA compliance for federal and regulated-sector procurement.
- ONVIF Profile S/T/G/M: Multi-profile support ensures interoperability with all major VMS platforms (Genetec, Milestone, Avigilon, Hanwha, etc.) and scales across heterogeneous system deployments.
- Extreme Environmental Tolerance: IP66/IP67/IP68 (2 m submersion, 2 hr); IPX9K (high-pressure jets); NEMA 4X stainless-friendly. IK11 impact rating withstands 5 kg drop from 50 cm. −50°C to +65°C operating range covers arctic and desert installations without climate-control enclosures.
- Flexible Power & Storage: PoE+ (class 3, ~13–16W typical) or 12/24 Vdc external supply. microSD slot for local buffering and failover recording.
- H.265 & H.264 Compression: H.265 reduces bitrate 40–60% versus H.264 at equivalent quality; Motion JPEG fallback ensures compatibility with legacy VMS and bandwidth-constrained network paths.
The 1/1.8 inch sensor paired with the motorized varifocal lens delivers superior light collection and zoom flexibility. This combination is rare in the 4MP compact dome segment — most alternatives ship with fixed lenses or rely on wider-aperture fixed designs that sacrifice zoom versatility. The varifocal design lets installation teams dial in framing at deployment time, reducing the need for post-install camera adjustments or repositioning hardware. The 130 dB SureVision WDR engine is engineered specifically for mixed outdoor lighting; it preserves fine detail in both sunlit and shadowed regions simultaneously, a capability that directly translates to more usable forensic footage and fewer analyst-hours spent grading video for evidentiary value.
Night performance is a standout. The integrated IR module achieves 0.001 lux sensitivity in monochrome and maintains color detail well into twilight (0.003 lux color stated). Unlike external IR floods, which add capex, power draw, and maintenance burden, the integrated emitter is sealed, maintenance-free, and power-budgeted into the PoE+ spec. On a 10-camera parking-lot deployment, the absence of external lighting rigs saves installation labor and eliminates seasonal cleaning and reflector realignment tasks. The edge analytics suite — particularly person/vehicle classification and direction-violation detection — shrinks false-positive alerts from wildlife, shadows, and wind-blown debris, a major operational benefit on 24/7 recording systems where alert fatigue is a real cost center.
Cybersecurity posture is hardened for regulated environments. FIPS 140-3 Level 3 certification signals hardware-backed encryption (not just software TLS); TPM (Trusted Platform Module) prevents firmware tampering; Secure Boot chains authentication from boot to kernel; 802.1X and HTTPS enable role-based network access and encrypted management traffic. NDAA Section 889 and TAA compliance remove procurement friction in federal, state, and critical-infrastructure environments. Five-year warranty with standard Pelco support channels covers parts and labor; PoE+ powering from standard 802.3at switches simplifies infrastructure investment compared to high-power PoE or external 24V PSU networks.
ONVIF Profile compliance (S, T, G, M) ensures seamless integration with Genetec, Milestone Xprotect, Avigilon, ExacqVision, and other major VMS platforms. Profile T adds H.265 streaming over Profile S; Profile G enables geotagging and edge metadata; Profile M covers mobile and cloud interop. This breadth eliminates single-vendor lock-in and lets your integrator design multi-camera systems with mixed brands without codec or API bridges. The combination of PoE+ power, microSD failover storage, and edge analytics makes this camera suitable for branch-office and remote-site deployments where network resilience matters.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SRXE4-6V9-EMD-IR1 has earned a reputation as a workhorse 4MP outdoor dome in our customer base — not flashy, but quietly reliable across parking lots, building perimeters, and industrial yards. We've deployed it extensively in environments where motorized zoom is critical (e.g., mixed-distance asset monitoring) and where environmental durability is non-negotiable. The varifocal lens is the real differentiator versus fixed-lens alternatives in this class; installation teams can adjust framing on-site without swapping optics, which saves labor and reduces on-site inventory. The 130 dB SureVision WDR is legitimately excellent for backlit scenes — we've seen it preserve license-plate detail in high-glare parking lots where fixed-WDR competitors produce blown-out plates or crushed shadows. Integrated IR is a hidden gem: no external floods to maintain, no seasonal reflector cleaning, and the power budget fits comfortably into standard PoE+ infrastructure. The Smart Analytics (person/vehicle detection, loitering, beam crossing) run natively on ARTPEC or equivalent edge processor; in our experience, this cuts NVR-based false-positive alert load by 30–50% compared to downstream software analytics, which translates directly to reduced analyst fatigue on 24/7 monitoring contracts. FIPS 140-3 Level 3 and NDAA Section 889 certification have become table-stakes in our federal and critical-infrastructure deals; Pelco's documentation is solid, and audit trails are clean. The one trade-off is power: PoE+ is required (802.3at, ~15W typical), not 802.3af. On sites with legacy low-power PoE infrastructure, you'll need PSU upgrades. IR range is moderate (effective to ~15–20 m depending on target reflectivity) — adequate for facility entry monitoring and parking structures, but insufficient for long perimeter fencing without supplementary lighting. We've also seen occasional integrators spec this camera for applications where a fixed-lens 4MP alternative would be more cost-effective; the varifocal premium isn't trivial, so always challenge whether zoom flexibility is actually required or desired.
Technical Highlights:
- Motorized Varifocal Lens (4.4–9.3 mm): 32–109° horizontal FOV with F1.4 aperture. This is uncommon at 4MP in the compact dome segment — most competitors ship fixed 2.8–3.8 mm or fixed 6–8 mm designs. The ability to adjust framing post-installation without lens swap saves labor and reduces on-site optics inventory. The wide zoom range is particularly valuable for entrance monitoring where you need both hallway context (wide) and facial detail (telephoto).
- 130 dB SureVision WDR: Engineered to handle extreme contrast (sunlit + shadowed regions simultaneously). In our testing, it outperforms fixed-WDR designs in backlit loading docks and vehicle-entry scenes. The consequence is forensically usable footage in high-glare conditions; fewer hours spent grading video or requesting re-shoot of ambiguous events.
- Integrated IR with 0.001 Lux Sensitivity: Eliminates capex and maintenance of external flood fixtures. The IR is sealed, maintenance-free, and power-budgeted into PoE+. In a 10-camera deployment, this saves labor and simplifies logistics. Effective range ~15–20 m depending on target reflectivity — adequate for facility entry and parking, but not for perimeter fencing beyond 50 feet.
- Smart Analytics (Edge-Native): Person/vehicle detection, loitering, beam crossing, crowd detection run locally on processor, not in VMS. This shrinks NVR-side false-positive noise and storage overhead. In our experience, locally-computed analytics reduce alert fatigue by 30–50% on 24/7 monitoring systems, a measurable operational cost saving.
- FIPS 140-3 Level 3 + TPM + Secure Boot: Hardware encryption and immutable boot chain mean federal audit trails are clean and tamper-resistance is credible. NDAA Section 889 and TAA compliance remove procurement friction in regulated sectors. Certification documentation is thorough; auditors recognize Pelco's standard.
- ONVIF Profile S/T/G/M: Multi-profile compliance ensures interoperability across Genetec, Milestone, Avigilon, Hanwha, ExacqVision, and others. No proprietary VMS required; scales across vendor-agnostic deployments.
Deployment Considerations:
- PoE+ (802.3at) is required, not 802.3af. Typical draw is 13–16 W. Legacy PoE-only infrastructure (82.3af switches) must be upgraded. Budget infrastructure capex accordingly on retrofit projects.
- IR range is effective to ~15–20 m in monochrome, depending on target reflectivity and darkness level. Adequate for facility entrances and parking structures. Beyond 50 feet or on perimeter fencing in total darkness, supplementary external IR or lighting should be considered.
- Motorized varifocal lenses are more complex than fixed optics; they have moving elements that can occasionally need calibration after installation shock or thermal cycling. Standard practice is to test zoom and focus at final site acceptance. Keep a spare lens assembly on hand for high-volume deployments.
- Smart Analytics (person/vehicle detection, loitering, etc.) require tuning for site-specific environments (lighting, background clutter, crowd density). Default tuning is conservative; expect to refine detection rules with the site integrator and VMS before 24/7 deployment.
- microSD slot supports local failover storage, but is limited to ~128 GB typical. Use it as a buffer for brief network outages (minutes to hours), not as a replacement for NVR-based redundancy on critical sites.
The SRXE4-6V9-EMD-IR1 is the right choice for integrators and end-users who need motorized zoom flexibility, hardened cybersecurity (FIPS 140-3, NDAA Section 889), and proven WDR + IR performance in outdoor environments. It's particularly valuable on multi-distance monitoring scenarios (parking lots with entry gates, building perimeters with near and far zones) and on regulated-sector projects where federal compliance and audit trails are non-negotiable. For fixed-framing applications or cost-sensitive deployments, fixed-lens 4MP alternatives may be more economical. Explore the full Pelco catalog to compare fixed and varifocal options in the Sarix Enhanced lineup.
