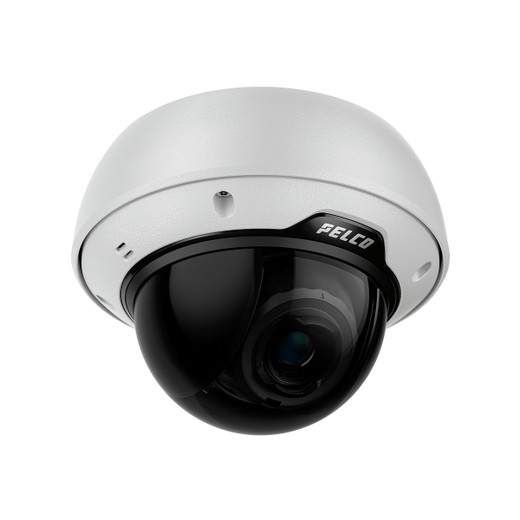

Pelco SRXE4-4V29-EMD-IR1 4MP Sarix Enterprise 4 Dome Camera with IR
The Pelco SRXE4-4V29-EMD-IR1 is a professional 4MP outdoor dome camera from the Sarix Enhanced 4 series, engineered for demanding surveillance applications requiring motorized zoom flexibility, advanced analytics, and federal-grade cybersecurity. Built on a 1/1.8 inch progressive scan CMOS sensor with 2560 x 1440 native resolution and 60 fps capture, this camera delivers crisp imagery across wide operational ranges with exceptional low-light performance and 130 dB SureVision wide dynamic range.
Key Features
- 4MP resolution at 60 fps with H.265, H.264, and Motion JPEG compression
- 4.4–9.3 mm motorized varifocal lens with 32–109 degree horizontal field of view
- 130 dB SureVision WDR for balanced exposure across extreme contrast scenes
- Integrated IR illumination delivering approximately 70 m range at 850 nm
- Ultra-low illumination: 0.003 lux color, 0.001 lux mono, 0 lux with IR
- Smart Analytics: person/vehicle detection, direction violation, loitering, beam crossing, crowd detection, audio analytics, and tamper alerts
- FIPS 140-3 Level 3 certified encryption with TPM, Secure Boot, HTTPS, and 802.1X authentication
- ONVIF Profile S, T, G, and M compliant for cross-platform integration
- IP66/IP67/IP68 (2 m, 2 hr)/IPX9K and NEMA 4X rated for harsh outdoor environments
- IK11 impact resistance for vandal-prone installations
- Operating range: -50°C to +65°C with PoE+ or external 12/24 Vdc power
- NDAA Section 889 and TAA compliant for U.S. government procurement
- 5-year manufacturer warranty
Technical Highlights
The motorized varifocal lens and wide zoom ratio (4.4–9.3 mm) enable post-installation framing adjustments without camera repositioning, reducing deployment complexity and cost. The 60 fps capture at 4MP resolution supports smooth tracking and forensic detail recovery in motion-heavy environments. SureVision WDR handles backlit scenes, reflective surfaces, and mixed lighting without loss of foreground or background detail.
Dual-sensor day/night operation with integrated IR provides uninterrupted surveillance across 24-hour cycles. Smart Analytics offload processing to the edge, enabling intelligent alerts for person/vehicle presence, directional violations, and loitering behavior without server overhead. Audio analytics adds acoustic monitoring for comprehensive situational awareness.
Federal-grade FIPS 140-3 Level 3 encryption and secure boot protect against firmware tampering and credential compromise. 802.1X network authentication and HTTPS communication integrate seamlessly with zero-trust enterprise architectures.
Applications
Ideal for critical infrastructure, government facilities, perimeter security, access control verification, parking structures, and outdoor high-security zones requiring encrypted, tamper-resistant surveillance with actionable intelligence and regulatory compliance.
