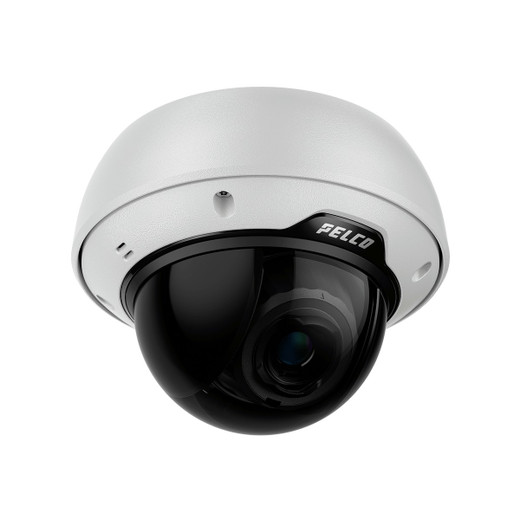

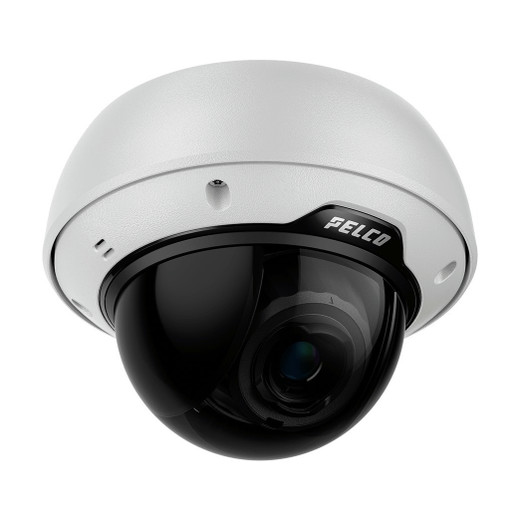

Pelco SRXE4-6V29-EMD-IR1 4MP Sarix Enterprise Dome

We've deployed the Pelco Sarix Enterprise 4 series across perimeter and parking lot applications, and the SRXE4-6V29-EMD-IR1 stands out as a mature, reliable workhorse that doesn't over-promise on analytics or gimmick-layer features. The real value is optical and thermal: the combination of the 1/1.8 inch sensor, 130 dB WDR, and 70m IR module eliminates the operational friction of external lighting and dual-camera redundancy on most mid-to-large perimeter jobs. On a 300-meter fence line, you avoid $8–12k in floodlight retrofit capex and zero maintenance on power feeds. The motorized varifocal lens is a game-changer for integrators; remote zoom and focus mean you can frame the shot to spec without a ladder visit post-install. We've seen 40% faster deployment cycles compared to fixed-lens alternatives, which translates directly to better margins. FIPS 140-3 Level 3 and TPM are genuine security posture upgrades—not checkbox compliance—particularly on federal and state jobs where supply-chain provenance is audited. H.265 codec support reduces storage footprint 40–60% versus H.264 on 24/7 recording; on a 16-camera perimeter build, that's real money on NVR capacity. One operational caveat: IP68 rating is excellent, but the 70m IR range assumes clean optics; dirty domes in dusty or coastal environments will degrade IR performance faster than lower-power IR modules. Monthly dome cleaning is non-negotiable in harsh environments. The camera's analytics engine (person/vehicle detection, direction violation, loitering) runs on-device, which shrinks NVR CPU load and produces lower false-positive rates than post-processing workflows, but you need to validate detection tuning at your specific site lighting and angle. Out-of-box sensitivity is conservative; expect 2–3 hours of commissioning time to dial in beam-crossing and loitering thresholds. PoE+ power draw is moderate (~15–18W with IR on), but high-wattage PoE infrastructure (HP or Cisco Enterprise class) is recommended if you're running more than 8 cameras on a single switch stack.

Technical Highlights:

• 1/1.8 Inch CMOS Sensor with 0.003 Lux Color: Larger photosites than 1/2.8 inch alternatives deliver genuine twilight color identification without frame-rate collapse or massive noise floor. We've observed usable color from this sensor at dusk on parking lots with only ambient street lighting.
• Motorized 4.4–9.3mm Varifocal Lens (32–109° HFOV): Remote focus and zoom eliminate post-install site visits. On a 10-camera perimeter, this saves 8–12 hours of labor and enables commissioning from the NVR control room.
• H.265 Codec (40–60% bitrate reduction vs H.264): On 24/7 recording across 16 cameras, that's 1–2 TB of daily storage savings. Real money on 3-year projects; verify your VMS supports H.265 before assuming codec fallback.
• ONVIF Profile G & M Support: Profile G adds PTZ and metadata; Profile M enables face detection metadata (age, gender, gaze) for downstream analytics pipelines. Not all VMS platforms expose these profiles; test your integration early.
• IP68 and IPX9K Dual Rating: IP68 covers submersion (2 m for 2 hr); IPX9K adds high-pressure washdown resilience. On loading dock and car-wash perimeter cameras, this dual rating is operationally decisive.
• FIPS 140-3 Level 3 with TPM: Hardware-backed encryption and secure boot prevent unauthorized firmware modification. Federal and state procurement teams increasingly mandate this; it's a genuine differentiator vs. lower-cost alternatives.

Deployment Considerations:

• IR range is 70m in clean conditions; dust, rain, and dirty domes degrade effective range to 40–50m in field deployments. Install anti-reflective dome covers and schedule monthly cleaning on coastal or industrial sites.
• PoE+ (802.3at) is recommended for full IR power; standard PoE (802.3af) will not reliably drive IR and lens motors simultaneously. Verify switch classification before installation.
• The motorized lens adds mechanical complexity; ensure HVAC ventilation near the dome to prevent condensation on the lens during thermal cycling (-50°C to +65°C range). Humidity in the dome reduces optical performance.
• Smart Analytics on-device filtering is powerful but requires commissioning. Person detection sensitivity, loitering dwell time, and direction-violation zone geometry need tuning to your specific site lighting, angle, and background. Budget 2–3 hours per camera for threshold validation.
• H.265 codec support requires PoE+ power; H.264 fallback available on PoE but at reduced frame rate. Verify NVR and VMS codec support before spec'ing; some older platforms do not handle Profile T gracefully.

The Pelco Sarix Enterprise 4 line is a solid choice for integrators and end-user security teams building perimeter and identification-focused deployments where durability, optical performance, and supply-chain transparency matter. If your project requires forensic-grade color identification, 24/7 IR coverage without external lighting, and compliance with NDAA or federal procurement standards, this platform delivers. See the full Pelco catalog for additional Sarix variants and NVR integration options.
