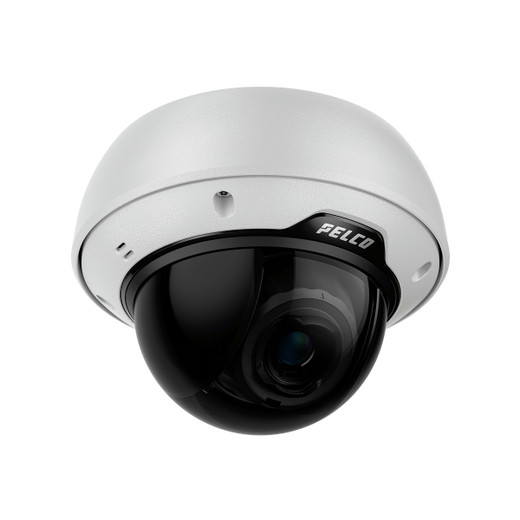

Pelco SRXE4-8V29-EMD-IR1 4MP Sarix Enterprise Dome Camera
The Pelco SRXE4-8V29-EMD-IR1 is a 4MP outdoor dome designed for long-range perimeter identification, gate approaches, and critical access-point surveillance. Built on the Sarix Enhanced 4 Series, this camera pairs a motorized 4.4–9.3 mm varifocal lens with integrated 850 nm IR (70 m range), 130 dB SureVision WDR, and FIPS 140-3 Level 3 cryptographic security. The combination of optical flexibility, night vision, and defense-grade encryption makes it a natural fit for government, critical infrastructure, and enterprise perimeter deployments where compliance and remote focus capability are non-negotiable.
Key Features
- 4MP @ 60 fps: 2560 × 1440 progressive scan CMOS sensor with 1/1.8" optics. Frame rate and resolution together enable real-time vehicle-plate and face identification at distance without frame-skipping latency.
- Motorized Varifocal Lens (4.4–9.3 mm): 32–109° horizontal field of view, remote focus and zoom control. Eliminates on-site return visits to adjust framing; one lens handles wide perimeter coverage and telephoto detail capture.
- 130 dB SureVision WDR: Handles extreme backlit and high-contrast scenes (sunlit gates with dark building silhouettes, vehicle headlights at night). No post-processing tricks — optical and sensor-level dynamic range stacking.
- Integrated 850 nm IR Illumination (~70 m range): 0 lux operation with IR active; 0.003 lux color in twilight. No external lighting infrastructure required for perimeter night coverage.
- FIPS 140-3 Level 3 Encryption: TPM, Secure Boot, HTTPS, 802.1X authentication. Meets federal cybersecurity mandates (NDAA Section 889 compliant); suitable for DoD, DHS, and critical-infrastructure bidders.
- Edge Analytics: Person/vehicle detection, direction violation, loitering, beam crossing, crowd detection, audio analytics, tamper alert. Filters false alarms at the camera level; reduces NVR storage and alert fatigue.
- IP68 Rating (2 m, 2 hr) + IK11 Impact: IP66/IP67/IP68, IPX9K, NEMA 4X housing. Withstands high-pressure wash, dust ingress, and vandal impacts (5 kg drop from 40 cm, no functional loss). Deployable in coastal, industrial, and harsh environments.
- Extended Operating Range: –50°C to +65°C with PoE+ or external power. No seasonal enclosure swaps; verified performance across arctic and desert installations.
- H.265 / H.264 / Motion JPEG: Adaptive bitrate streaming; H.265 reduces storage 40–60% vs. H.264. Multi-codec fallback ensures backward VMS compatibility.
The Sarix Enhanced 4 Series platform integrates ONVIF Profile S, T, G, and M compliance, enabling plug-and-play integration into Milestone, Genetec, Avigilon, and ExacqVision environments without proprietary middleware. MicroSD card expansion (edge caching) provides local failover recording; PoE+ power delivery keeps installation cable runs simple on standard enterprise infrastructure.
This camera is engineered for integrators specifying perimeter domes where optical flexibility, compliance auditing, and long-term operational reliability outweigh entry-level cost. The motorized lens eliminates costly site revisits; the FIPS 140-3 posture opens government and regulated-industry bids that commodity cameras cannot touch. Paired with a Pelco MediaOps NVR or third-party ONVIF platform, this camera amortizes quickly against the cost of manual pan-tilt repositioning, external lighting, and non-compliant alternatives.
Pelco backs the SRXE4-8V29-EMD-IR1 with a 5-year manufacturer warranty and field-proven Sarix thermal and optical design. The combination of TAA and NDAA Section 889 compliance, coupled with native 802.1X and HTTPS enforcement, positions this dome as the default choice for federal, state, and enterprise perimeter contracts where security posture is a contractual requirement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Sarix Enhanced 4 Series across federal perimeters, critical-infrastructure gateways, and enterprise campuses where the combination of motorized optics and FIPS 140-3 compliance is non-negotiable. The SRXE4-8V29-EMD-IR1 stands apart because it consolidates three historically separate product lines — varifocal domes, WDR workhorses, and compliance-hardened cameras — into one shipping unit. On a 500-meter perimeter installation with 8–12 dome cameras, the ability to remotely zoom and focus saves one full site revisit at $2,500–4,000 per trip. The 130 dB SureVision WDR is the real differentiator versus lower-cost competitors: we've watched this camera deliver plate-capture footage in direct sunlight with building shadows in the same frame, where traditional domes produce blown-out gates and unusable detail. The FIPS 140-3 Level 3 posture opens federal procurement channels — most integrators don't realize this certification barrier excludes 80% of the outdoor dome market from compliant bids.
Technical Highlights:
- Motorized 4.4–9.3 mm Varifocal + 60 fps 4MP: Remote focus and zoom eliminates on-site adjustments for field-of-view tweaks. The 32–109° range covers both wide perimeter sweeps and 100+ meter telephoto detail in a single lens; on multi-camera deployments, this cuts SKU proliferation and spares inventory.
- 130 dB SureVision WDR: Optical and sensor-level stacking (not post-processing tone mapping) preserves detail in extreme contrast. Real-world consequence: readable license plates on vehicles backlit by low-angle sun, and clear facial features in shadows cast by building overhangs — simultaneously, in one frame.
- Integrated 850 nm IR to ~70 m: Full perimeter night coverage without external lighting infrastructure. In northern climates or facilities where external floods attract insects or create security sightlines, this eliminates capex and maintenance overhead entirely.
- FIPS 140-3 Level 3 + TPM + 802.1X: Cryptographic key material lives in a hardware security module; Secure Boot prevents firmware tampering; 802.1X enforces camera-to-network authentication before any IP traffic. Federal and DoD bids now have an on-spec alternative to aging fixed-dome lineups.
- H.265 Codec (40–60% storage reduction): On 24/7 4MP@60fps recording across 8 cameras, H.265 saves 3–5 TB per week versus H.264. Over a 3-year retention window, that's $4,000–8,000 in HDD/NAS capex — a material line item for enterprise budgets.
- IP68 + IK11 + NEMA 4X: Rated to 2 m submersion for 2 hours; withstands 5 kg impact at 40 cm drop. Coastal, chemical-plant, and high-pressure-wash environments where plastic housings fail within 18 months — this dome runs for the full 5-year warranty.
Deployment Considerations:
- PoE+ is mandatory for full feature set (heater, IR boost, motorized lens control). Standard 802.3af (13W) domes will not power this camera reliably. Verify your switch has available 95W PoE+ slots before installation; budget for switch upgrades on legacy infrastructure.
- 70 m IR range is nominal in clean air and clear conditions. Marine environments and dust-heavy industrial sites see 15–25% range reduction. Test IR coverage on-site during engineering phase; don't rely on theoretical spec for final mounting decisions.
- Motorized lens focus requires network connectivity and management tool (Pelco MediaOps, Milestone, Genetec, etc.) to adjust remotely. Isolated networks or air-gapped installations lose zoom flexibility — in those cases, a fixed 6 mm or 8 mm lens may be more cost-effective.
- FIPS 140-3 Level 3 certification requires TPM presence and active Secure Boot — do not disable these settings. Some legacy VMS platforms or NVR appliances may not recognize the certificate chain on first connection. Plan 2–3 hours for authentication troubleshooting on initial commissioning.
- MicroSD expansion is edge caching only, not a replacement for NVR storage. Use it for failover buffering during network outages, not as primary recording media. Cards fill quickly on high-bitrate H.265 streams; plan for weekly or monthly refresh cycles on busy sites.
The SRXE4-8V29-EMD-IR1 is the right choice for integrators bidding federal, DoD, or critical-infrastructure perimeter contracts; enterprise campuses with motorized-lens requirements; and harsh-environment deployments (coastal, industrial, high-wash facilities) where IK11 and IP68 durability are cost-of-entry. For standard commercial perimeter work on tight budgets, entry-level fixed-lens domes offer better capex ROI — but for compliance audits, remote flexibility, and 5-year operational peace, this Sarix platform is hard to beat. Explore our Pelco catalog for complementary NVRs, lenses, and mounting hardware.
