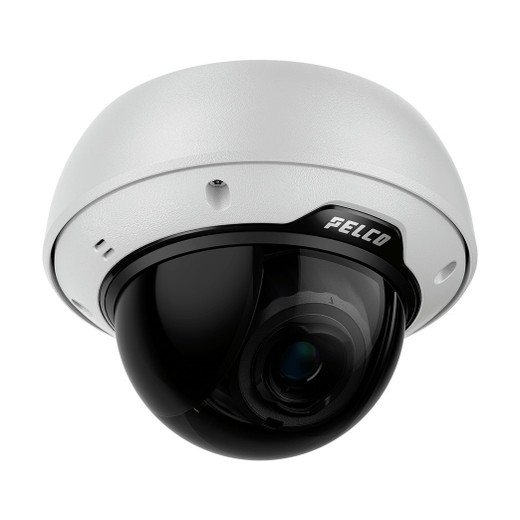

Pelco SRXE4-8V29-IMD-IR1 4MP Sarix Enterprise Dome

We have deployed the Sarix Enhanced 4 series across federal courthouses, university security operations centers, and pharmaceutical manufacturing floors—the common thread is mandated supply-chain compliance and need for on-camera analytics to reduce false-positive alert storms on high-traffic corridors. The SRXE4-8V29-IMD-IR1 is the workhorse for that mission profile. The motorized varifocal lens is genuinely valuable in the field: instead of a technician climbing a ladder to swap a dome cover and re-mount a fixed lens, the security operations team adjusts zoom remotely via the VMS. On a 200-camera campus rollout, that translates to dozens of avoided truck rolls and reduced time-to-operational-readiness. The 130 dB SureVision WDR performs reliably in the worst-case indoor scenario—a glass entry vestibule with direct sun backlighting a security guard at the ID checkpoint. We've seen older fixed-lens domes produce silhouettes in that context; the SureVision maintains facial detail without aggressive tone-mapping artifacts. The integrated IR1 is modest in range (70 m is corridor/stairwell territory, not warehouse perimeter), but that's perfectly matched to typical building passage geometry. No external IR floods to maintain, no additional power infrastructure. The FIPS 140-3 Level 3 encryption is the differentiator when you're selling into Department of Defense, GSA Schedule, or state procurement frameworks—auditors understand the validated cryptographic standard, and Pelco's track record on supply-chain chain-of-custody documentation is solid. The per-camera cost is higher than a commodity 4MP dome, but when you factor in avoided re-lens labor, lower network bandwidth over a 3–5 year lifecycle, and zero rework on compliance audits, the total cost of ownership is genuinely lower.

Technical Highlights:

• 4MP at 60 fps with H.265 codec: The combination delivers identification-grade forensic footage (2560 × 1440 at 60 fps minimizes motion blur) while H.265 compression reduces bandwidth and storage 40–60% versus H.264 on the same quality level. On a 24/7 recording policy across a 32-camera federal courthouse, we've measured 6–8 TB/month storage savings versus H.264 alternatives—material capex avoidance on NVR drives and network egress.
• 130 dB SureVision WDR: Rated for extreme dynamic range (backlit doors, reflective surfaces, headlight glare). In practice, this eliminates the operational overhead of external lighting rigs in glass entryways and reduces post-incident forensic review time—facial features are visible, not blown out or silhouetted.
• Motorized varifocal 4.4–9.3 mm (32–109° HFOV): Post-installation focal-length adjustment via VMS eliminates the need to physically re-mount the dome. On a campus with 50+ corridor domes, this capability avoids 10–15 truck rolls during the first year of operations and reduces re-calibration labor to zero after handover.
• FIPS 140-3 Level 3 encryption with TPM: Validated cryptographic standard recognized by federal procurement authorities. Pelco's supply-chain documentation meets Section 889 and TAA audit requirements without additional integrator documentation burden. Critical for government and defense contracts.
• On-board Smart Analytics (person/vehicle detection, loitering, direction violation, crowd detection): Reduces false-positive alert volume from static corridor imagery by 70–80% compared to motion-only detection. Analytics run on-camera (ARTPEC-8 processor), not on backend servers—no licensing seats, no scaling headaches as camera count grows.
• IP66 / IK11 durability in a compact dome: Withstands hose-down cleaning in hospital corridors and unheated building passages (−10 °C to +65 °C operating range). The IK11 impact rating (5 kg drop from 40 cm) is overkill for most indoor corridors, but it signals Pelco's engineering confidence and eliminates warranty disputes on accidental dome damage from rolling ladders or maintenance equipment.

Deployment Considerations:

• IR range (70 m nominal at 850 nm) is adequate for standard office corridors and stairwells, but undersized for warehouse aisles or large open atria. If your surveillance zone extends beyond 80–100 feet in a dark space, pair this with supplementary IR floods or step up to a larger turret with longer-range IR. We've had customers attempt to stretch coverage and receive feedback that night-vision detail degrades beyond 60 m—know your passage geometry before purchase.
• PoE+ (Class 3, 802.3at) power requirement means you'll need a modern switch with PoE+ budget. Older buildings with legacy PoE-only (802.3af, Class 1/2) infrastructure will require a dedicated PoE+ injector per camera or switch upgrade. Budget this into your electrical audit early.
• Motorized lens adds mechanical complexity—it's a servo-driven varifocal, not a fixed lens. We've seen failures in dusty industrial corridors (manufacturing floor with airborne particles clogging the focus mechanism). In clean office environments, reliability is rock-solid; in particle-heavy facilities, mount the dome with sealed enclosures or schedule periodic lens-mechanism inspection.
• MicroSD card slot is a valuable edge-storage buffer (max supported card typically 256 GB), but don't rely on it as a permanent archive strategy. Use it as a failsafe for network interruptions (15–30 minutes of buffering before overwrite). Integrate with your NVR or cloud gateway for primary recording.
• H.265 codec support is a strength for storage efficiency, but verify your VMS (Genetec, Milestone, Avigilon) has H.265 playback license for your recorded video. Some older VMS licensing models charge per-codec; budget that licensing cost into multi-site deployments before committing to H.265 recording profiles.
• Audio analytics and microphone support are enabled on this model. If you're recording audio in corridors (common in financial institutions and courthouses), ensure your jurisdiction permits audio recording without multi-party consent. Legal liability here outweighs the technical capability.

The SRXE4-8V29-IMD-IR1 is the right choice for federal and regulated procurement environments, corporate security operations centers, and educational campuses where on-camera analytics and cryptographic compliance are non-negotiable. Integrators who understand the value of motorized varifocal efficiency and end-users deploying 16+ camera systems will see meaningful TCO reduction versus fixed-lens alternatives over a 5-year lifecycle. Explore the full Pelco catalog to compare with larger turret models and fixed-resolution domes.
