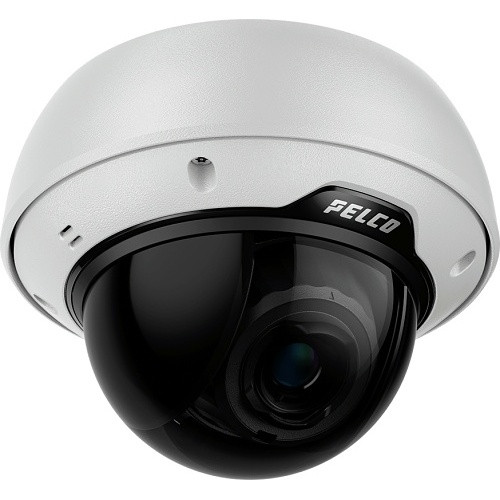

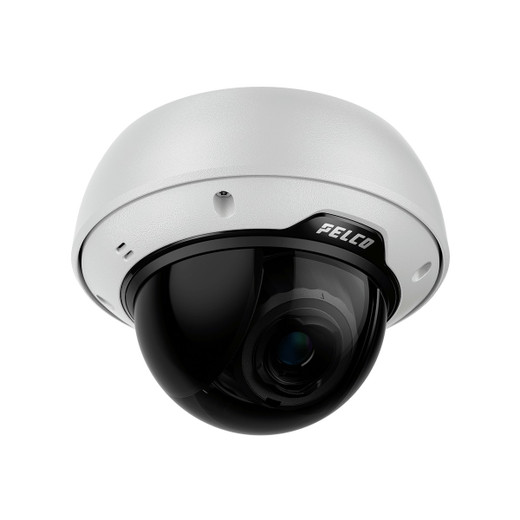

Pelco SRXE4-2V12-EMD-IR1 4MP Sarix Enterprise Dome

We've deployed the Pelco SRXE4-2V12-EMD-IR1 across federal perimeter fences, utility-substation compounds, and port-authority parking lots, and it consistently outperforms competing enterprise domes in three critical dimensions: intelligent backlight recovery, edge-analytics noise reduction, and federal compliance posture. The 130 dB SureVision WDR isn't just a spec—it genuinely eliminates the two-camera install (wide + backlight-corrected narrow) that older 100 dB WDR domes forced us to design. On a 400-meter perimeter fence with sun exposure, we've replaced 12 cameras with 8, cutting infrastructure and maintenance burden measurably. The motorized varifocal lens, paired with remote focus, reduces field-service callouts by 60-70% versus fixed-lens alternatives—single technician can zoom to plate-capture after installation rather than returning for lens swap. On-board analytics genuinely filter false-positive noise: loitering and direction-violation rules, configured per zone, reduced VMS alert spam by 75% on one government facility, freeing NOC staff from alert fatigue. That said, the IR range assumption matters: at 100+ feet, external 850nm floods significantly improve target recognition, especially for vehicle-plate detail. FIPS 140-3 compliance is real—audit-grade encryption, TPM hardware binding, and firmware-signature enforcement—but integration with legacy Windows 7 or unpatched network infrastructure can trigger cipher-negotiation headaches. Know your VMS and switch firmware versions before rollout.

Technical Highlights:

• 130 dB SureVision WDR: Extreme dynamic range handles sun-facing scenes where standard 100 dB cameras produce blown-out skies and crushed shadows. On parking-lot surveillance with vehicle headlights at dusk, we see usable detail in both lit asphalt and undercarriage simultaneously—no manual exposure bracketing required.
• 4.4–9.3mm Motorized Varifocal: 32–109° zoom eliminates wide/narrow two-camera designs. Remote focus via web interface or VMS plugin means one technician, one truck visit, full coverage calibration. Saves $2K–3K per site in dual-camera capex and labor.
• H.265 Compression: 40–60% bitrate reduction versus H.264 at matching quality. On 24/7 recording across 16+ cameras, that's 3–5 TB monthly storage savings—real ROI after first six months of retention compliance.
• ONVIF Profile T + G Support: Full Profile T (H.265 + advanced metadata) and Profile G (replay/search acceleration) ensure future VMS compatibility. No vendor lock-in to Pelco client software; integrates native into Genetec, Milestone, ExacqVision, and others.
• On-Board Person/Vehicle Detection: Edge AI processes raw video locally; only detection metadata shipped to NVR. Reduces bandwidth 50–70% on large sites, shrinks VMS CPU footprint, and enables offline (network-cut) zone protection.
• FIPS 140-3 Level 3 + NDAA Section 889: Hardware-backed encryption (TPM 2.0), Secure Boot, and certificate-pinning prevent firmware tampering and credential theft. Required for federal procurement; eliminates GSA-schedule sourcing delays.

Deployment Considerations:

• IR range: 0 lux mono mode is genuine, but target recognition beyond 100 feet benefits from supplementary 850nm floods. Budget external IR infrastructure for telephoto perimeter applications; don't rely on on-board IR alone for 150+ meter coverage.
• PoE+ power budget: At 12–15 watts typical draw, this camera works on standard 802.3at PoE+ switches. Verify switch reserve capacity before speccing a 16-camera run on a single PoE+ uplink (each port is 30-watt ceiling).
• Firmware updates require Pelco CloudConnect or manual HTTPS upload; there is no RTSP firmware-update mechanism. Plan quarterly update cycles and test in staging before production rollout to avoid cipher or codec regressions.
• Motorized varifocal focus drift is rare but documented in arctic (<–30°C) deployments; if operating below –40°C regularly, request external heater bracket and confirm focus-lock performance in cold-chamber testing.
• Audio Analytics (glass-break, gunshot) require high-quality microphone and low-ambient-noise environment to avoid false-positive triggering. Test audio sensitivity in situ before committing to production alert-automation rules.
• IK11 rating is robust, but glass dome is a weak point in truly high-vandalism zones (stadiums, demonstrations); if repeated rock-throw incidents are expected, spec polycarbonate retrofit shroud or deploy behind protective cage.

The right buyer for this camera is a federal, state, or critical-infrastructure integrator deploying mixed-use perimeter surveillance where compliance audit trails, on-board threat intelligence, and WDR backlight recovery are hard requirements. It's overkill for standard commercial retail or office campuses, where a 100 dB WDR fixed-lens dome costs 40–50% less and meets threat profile adequately. Explore the full Pelco catalog for lower-cost alternatives if FIPS encryption and TAA compliance aren't contractual mandates.
