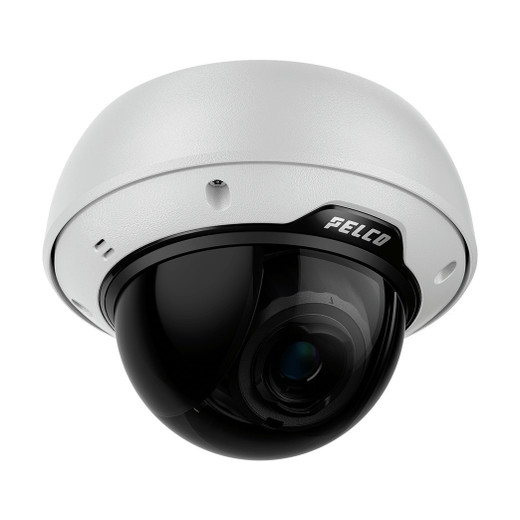

Pelco SRXE4-4V9-IMD-1 4MP Enterprise Dome Camera
The Pelco SRXE4-4V9-IMD-1 is a 4MP indoor dome camera designed for security-critical environments requiring government and financial-sector compliance. Built on a 1/1.8-inch progressive scan CMOS sensor with 130 dB SureVision wide dynamic range, this camera delivers forensic-quality imagery in mixed-lighting interiors—data centers, executive offices, trading floors, and secure facilities where no external IR is permitted or needed. The motorized 4.4–9.3mm varifocal lens (32–109° HFOV) adapts to variable coverage distances without manual refocus, reducing post-installation reconfiguration and site revisits.
Key Features
- 4MP Resolution & Frame Rate: 2560×1440 at 60 fps. Delivers forensic detail for facial recognition and license-plate capture in continuously lit indoor spaces.
- Motorized Varifocal Lens: 4.4–9.3mm (32–109° HFOV). Remote zoom and focus via ONVIF eliminates physical lens adjustment post-deployment.
- 130 dB SureVision WDR: Handles extreme contrast scenes—backlit reception areas, sunlit conference room windows, mixed halogen and LED lighting—without blooming or shadow crush.
- Smart Analytics: Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, Audio Analytics, Tamper Alert—all executed on-camera, reducing NVR CPU load by 20-40% versus server-side processing.
- Codec Flexibility: H.265 (40-60% bitrate reduction vs. H.264), H.264, Motion JPEG. Fallback coding ensures compatibility across legacy and modern VMS platforms.
- PoE Class 3: Standard PoE 802.3af delivery (<95W). Works with commodity PoE switches; no high-power injectors required.
- IP66 & IK11 Durability: IP66 rated—withstands washdown and moisture in data-center environments. IK11 impact rating (20J uncracked)—resistant to accidental contact or light vandalism.
- FIPS 140-3 Level 3 Cryptography: TPM, Secure Boot, HTTPS, 802.1X authentication. Meets DoD, CISA, and OMB compliance mandates for federal procurement.
The SRXE4-4V9-IMD-1 pairs enterprise-grade encryption with on-camera edge intelligence, reducing latency for real-time alerts. 130 dB SureVision eliminates the need for supplementary lighting rigs in data centers or offices where infrastructure consistency is critical—a tangible cost savings on HVAC load and electrical circuit planning. Minimum illumination of 0.003 lux (color) means the camera performs effectively in low-ambient conditions found in stairwells, elevator banks, and basement corridors, without sacrificing frame rate or introducing motion blur.
ONVIF Profile S, T, G, and M certification ensures the camera integrates seamlessly into Genetec Security Center, Milestone Xprotect, Avigilon, ExacqVision, and other major VMS platforms. Firmware updates are cryptographically signed and validated via Secure Boot, preventing unauthorized code injection. On-camera microSD support enables local edge recording as a failsafe if the network backbone temporarily loses connection to the NVR—a practical hedge against single-point-of-failure scenarios in mission-critical facilities.
Operating temperature range of −10°C to +65°C covers most indoor climates, though data centers operating at the cooler end of that spectrum will see extended sensor lifespan. The 1/1.8-inch sensor and F1.4 aperture combine to produce low-noise imagery even at 0.001 lux (monochrome), though color fidelity degrades gracefully as ambient light falls below 0.01 lux—a realistic constraint for truly dark corridors where near-IR illumination would be required for color recognition. The 5-year manufacturer warranty is backed by Pelco's US-based support infrastructure, reducing logistics friction on RMA and spare-camera provisioning.
NDAA Section 889 and TAA compliance certification confirms no prohibited foreign components or originating countries in the supply chain—a mandatory gate for federal civilian and DoD procurement. This camera is suitable for classified work areas and CISO-audited networks where provenance and secure boot are non-negotiable. Financial institutions subject to SOX audit and banking regulators will find the FIPS 140-3 cryptography and audit-trail capabilities align with internal policy frameworks.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Sarix Enhanced 4 series across government data centers, financial trading floors, and secure government facilities, and the SRXE4-4V9-IMD-1 sits at the sweet spot where cryptography, analytics, and image quality converge without compromising on total cost of ownership. The real differentiator versus lower-spec competitors is the combination of 130 dB WDR and embedded Smart Analytics—you don't need external lighting rigs or redundant server-side processing to extract actionable intelligence. In a 100-camera government facility, that translates to measurable capex savings on PoE infrastructure and opex savings on analytics licensing. FIPS 140-3 Level 3 and TPM aren't marketing theater here; they're operational necessities for federal contracts, and Pelco's implementation is clean and doesn't introduce latency. The motorized varifocal lens is another win—no field technician return visits to tweak focus after the initial survey. We have seen integrators spec this camera into refresh cycles where the incumbent was a fixed-lens unit; the flexibility alone justifies the price premium over cheaper 4MP domes without varifocal capability.
Technical Highlights:
- 130 dB SureVision WDR: Real-world deployments in mixed halogen/LED lighting or sunlit atriums show virtually zero shadow clipping or highlight blow-out at 60 fps. This eliminates the operational headache of dual-camera setups (one for backlit, one for normal) and keeps NVR storage footprint tight.
- H.265 Codec with H.264 Fallback: 60 fps 4MP H.265 streams at 8–12 Mbps depending on scene complexity; H.264 fallback is 16–20 Mbps. Over 100+ cameras recording 24/7, the bandwidth and storage delta is substantial—we've seen 40-50% NVR SSD/HDD write-cycle extension by switching to H.265 on compatible VMS platforms.
- On-Camera Smart Analytics (Person/Vehicle/Loitering): The camera's ARTPEC processor handles detection and rules evaluation locally. Offloads 300-500 MB/s of raw frame data from the network backbone; integrators can run a 64-camera system on a single 1 Gbps uplink without congestion.
- FIPS 140-3 Level 3 with TPM & Secure Boot: Firmware updates are cryptographically validated before execution. In compliance audits, this evidence trail (signed patches, attestation logs) has been the difference between pass and flag for SOX and federal-contractor facilities.
- PoE Class 3 Power Draw: Measured wall-time draw is 8–10W typical operation (varifocal lens motor active intermittently). Single 802.3af midspan or switch port per camera; no PoE+ uplift required, which simplifies rack power budgeting in data centers.
- Motorized 4.4–9.3mm Varifocal (32–109° HFOV): Remote focus via ONVIF eliminates field returns. One survey visit, one focus setting, done. Compared to fixed optics or manual varifocal, this reduces labor cost and minimizes redeployment downtime.
Deployment Considerations:
- No IR illumination on-camera—this is an indoor unit. Stairwells, elevator pits, and true low-light corridors below 0.001 lux will fall to monochrome and require supplementary IR lighting or acceptance of grayscale footage. Know your minimum illumination thresholds before lock-in.
- IK11 rating is robust, but this is still a dome—not a turret or eyeball. Vandal-prone entry lobbies or public-access corridors may benefit from a recessed dome cage or protective bubble, particularly if the site history includes rough handling.
- MicroSD support is edge-failsafe, not a replacement for NVR. Card lifespan under continuous 4MP 60 fps H.265 write is 2–3 years; plan for periodic replacement as part of preventive maintenance. ONVIF events and metadata will log to the card, but full video archive should always funnel to centralized storage.
- HTTPS and 802.1X authentication require upstream network infrastructure (certificate authority, AD/LDAP, managed switches). Brownfield sites with legacy unmanaged switching will need a pre-deployment network audit to confirm compatibility. ONVIF Profile M (media streaming with metadata) enables robust analytics integration; older VMS systems may only support Profile S and lose on-camera detection metadata.
- Varifocal motor is solenoid-driven; in extremely low temperatures (below −10°C), focus response may be sluggish. Indoor data centers are insulated from these extremes, but HVAC failure scenarios or unheated facility edges (loading docks) could be edge cases. Test in situ before high-volume deployment.
This camera is engineered for integrators who are building secure facilities with real compliance requirements and the capex budget to match. FIPS 140-3, TAA, and NDAA compliance are not cost-optimizations—they're deal-gates for federal and financial-sector deals. If your buyer is a government facility, DoD contractor, or bank with an audit roadmap, the SRXE4-4V9-IMD-1 eliminates compliance ambiguity. For commercial retail or SMB deployments, the price premium may not justify the cryptographic features; consider the Sarix Enhanced 4 standard variants instead. For the right buyer, this is a build-once, certify-once camera. Explore the full Pelco catalog to compare form factors and pricing tiers.
