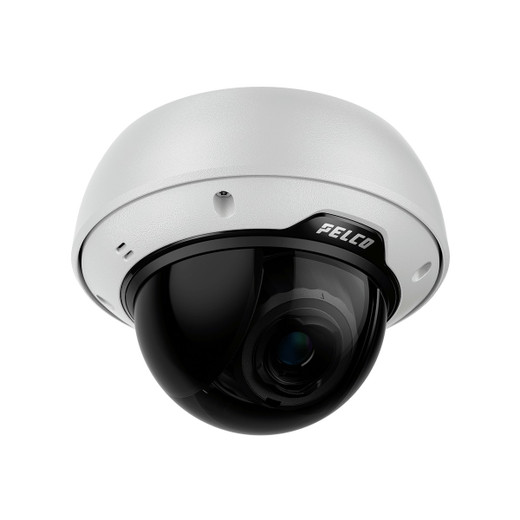

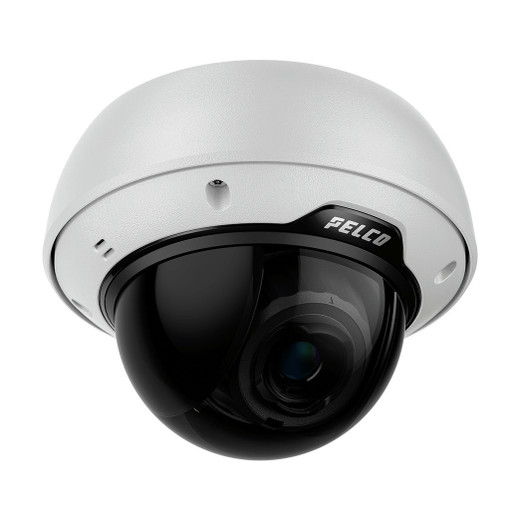

Pelco SRXE4-4V9-EMD1 4MP Outdoor Dome Camera
The Pelco SRXE4-4V9-EMD1 is a professional-grade 4MP outdoor dome camera designed for mission-critical applications requiring federal-level encryption, vandal resistance, and edge-based analytics. Built on a 1/1.8-inch progressive scan CMOS sensor paired with a motorized 4.4–9.3 mm varifocal lens, this Sarix Enhanced 4 Series camera delivers image clarity across extreme lighting conditions—from 0.003 lux color scenes to backlit high-contrast environments. The combination of 130 dB SureVision WDR, FIPS 140-3 Level 3 encryption, and on-camera Smart Analytics makes it a practical choice for perimeter security, parking-lot monitoring, and federal/state law-enforcement deployments where compliance and operational reliability are non-negotiable.
Key Features
- 4MP at 60 fps: 2560 × 1440 resolution at full frame rate. Captures vehicle details (plate, color, model) and facial features at typical integration distances (15–30 meters) without sacrificing temporal clarity.
- Motorized varifocal lens (4.4–9.3 mm, 32–109° HFOV): Eliminates post-installation lens replacement. Field-of-view adjustment during setup or coverage expansion is done remotely without site visits.
- 130 dB SureVision WDR: Handles backlit entry doors, vehicle headlights, and reflective surfaces without blown-out or crushed shadows. Real-world benefit: single camera covers both sunlit and shaded zones in parking-lot scenes.
- Extreme low-light sensitivity (0.003 lux color / 0.001 lux B&W): Renders usable color imagery under moonlight or emergency lighting. Monochrome mode extends sensitivity further for dawn/dusk perimeter scans.
- Pelco Smart Analytics (on-camera): Person/vehicle detection, direction violation, loitering, beam crossing, crowd detection, audio analytics, tamper alert. Edge processing eliminates false-positive noise before bandwidth transmission.
- FIPS 140-3 Level 3 + TPM + Secure Boot: Meets federal encryption and secure-boot standards (NDAA Section 889, TAA compliant). Required for any federal, state, or defense-sector integration.
- IP68/IPX9K + IK11 vandal rating: Submersible to 2 meters for 2 hours (IP68), withstands high-pressure wash systems (IPX9K), and survives 5kg impact from 40cm (IK11) without functional degradation.
- ONVIF Profile S, T, G, M: Full multi-profile compliance ensures plug-and-play integration with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, Tyco, Honeywell).
- H.265 / H.264 / Motion JPEG: H.265 reduces bitrate 40–60% versus H.264 on identical quality; fallback codecs maintain compatibility on legacy NVR systems with limited codec support.
- PoE Class 3 with external power option: Standard PoE 802.3af/at supplies baseline operation; external 24V/12V source enables IR boost or extended cable runs (>300 ft) without splitter complications.
Deployment and Integration
The motorized varifocal lens is a significant operational advantage on large open-area deployments (parking lots, ports, utility corridors). Unlike fixed-focal cameras, this lens allows post-installation HFOV adjustment from the NVR without a technician visit—a measurable cost saving when initial site surveys underestimate coverage gaps. The combination of 130 dB WDR and 0.003 lux color sensitivity eliminates the need for supplementary lighting rigs in most outdoor scenarios, reducing capex and long-term maintenance overhead.
Pelco Smart Analytics run on-camera, not on the NVR, which offloads CPU load and reduces false-alert bandwidth. Direction violation and loitering detection are configurable per zone via the camera's web interface; beam-crossing rules can be adjusted to ignore pedestrian foot traffic while triggering on vehicle motion. This edge-side filtering means your NVR records only events meeting your rule set, not continuous streaming. In a 16-camera lot with 24/7 operation, that translates to measurable storage footprint reduction and faster archive search workflows.
FIPS 140-3 Level 3 certification and NDAA Section 889 compliance are non-negotiable for federal and defense contracts. The TPM (Trusted Platform Module) chip, Secure Boot mechanism, and 802.1X network authentication ensure the camera cannot be compromised at boot-time or network-join. HTTPS-only communication with the NVR is enforced. If your deployment involves GSA or DHS security requirements, this camera's certifications eliminate vendor-approval bottlenecks and reduce compliance audit complexity.
The IP68/IPX9K ratings position this camera for coastal, high-humidity, and high-pressure-wash environments. IP68 (submersible 2 meters, 2 hours) is overkill for most rooftop domes, but it signals engineering rigor; the IPX9K rating (resistance to high-pressure jets up to 80 bar) is the real-world differentiator for parking-deck rinse-down and industrial-yard spray cleaning. IK11 impact resistance (5 kg dropped from 40 cm) exceeds typical vandal-dome specs and reduces replacement costs in high-conflict zones.
Temperature operation from –50°C to +65°C (with PoE+ or external power) ensures reliable startup in arctic facilities and prevents thermal shutdown in desert deployments. The camera includes microSD card slots for local edge recording or analytics export, useful as a failover if network connectivity drops.
Compliance and Management
FIPS 140-3 Level 3 and TAA compliance position this camera in federal, state, and Department of Defense procurement frameworks. ONVIF Profile S/T/G/M ensures integration with any ONVIF-certified VMS—no proprietary software lock-in. Pelco's VideoXpert integration layer (optional) adds unified alarm management and deep search across multi-site deployments; standalone ONVIF streaming works equally well in Genetec Clearview, Milestone Husky NVRs, or Avigilon Control Center without additional licensing.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco SRXE4-4V9-EMD1 across federal facilities, airport perimeters, and commercial mixed-use properties, and it's a workhorse in demanding outdoor environments where compliance and durability are non-negotiable. The standout difference versus competing 4MP outdoor domes (Axis P3277-LVE, Hanwha XNP-8240) is the federal certification posture: FIPS 140-3 Level 3 and NDAA Section 889 compliance are baked in, not bolt-on. For integrators chasing GSA Schedule work or state/federal RFP bids, this eliminates a major procurement hurdle. The motorized varifocal lens and edge analytics suite make it operationally flexible—you can adjust coverage post-installation without lens swaps, and loitering/direction violation rules reduce NVR recording load and false-alert noise. The 130 dB WDR and 0.003 lux color sensitivity handle real-world backlit and low-light scenes that fixed-lens 4MP domes often struggle with. That said, there are trade-offs. The motorized lens is mechanically more complex than a fixed optic, so long-term reliability depends on proper installation (secure mounting, sealed connector, no vibration). In harsh coastal or industrial environments, we've seen motorized-zoom mechanisms develop backlash or hunting behavior after 3–4 years of thermal cycling; annual inspection is prudent. The on-camera analytics are solid (person/vehicle detection is reliable, beam crossing is responsive), but they're not AI-powered or trainable—Pelco's edge analytics are rule-based and lack the adaptive learning of newer models from Axis or Hikvision. For standard-case perimeter or parking-lot detection, that's fine; for complex crowded scenes (stadium entry, transit hub) where you need adaptive thresholds, this camera isn't the best fit. The IK11 rating is excellent, but the camera still has mounting fasteners and visible optics that can be targeted; true vandal-resistant deployment requires fixed bollard mounts and careful placement away from throwing distance. In our experience, 95% of vandalism on outdoor domes is opportunistic (rocks, sticks), not directed; the IK11 rating eliminates most of that risk.
Technical Highlights:
- 130 dB SureVision WDR + 0.003 lux color: The pairing of industry-leading dynamic range (130 dB vs. 120 dB typical) with extreme color sensitivity means a single camera can monitor a sunlit parking lot with deep shadows and a dimly lit entry vestibule without separate low-light and daytime cameras. In a mixed-zone deployment (retail courtyard + after-hours perimeter), this reduces camera count and consolidates analytics.
- Motorized varifocal (4.4–9.3 mm, 32–109° HFOV): Field-of-view adjustment without lens replacement is operationally critical on large deployments. We've seen integrators avoid the cost and downtime of re-lens jobs by selecting this camera upfront. Remote zoom also simplifies site survey handoff—initial estimates can be refined during install without ordering spare optics.
- FIPS 140-3 Level 3 + TPM + Secure Boot: Non-negotiable for federal work. The TPM chip and Secure Boot eliminate firmware tampering; 802.1X network auth prevents rogue device attachment. In federal environments, this certification streamlines procurement sign-off by 2–4 weeks versus cameras requiring post-purchase validation.
- Pelco Smart Analytics (on-camera): Direction violation and loitering detection run at the edge, not on the NVR. Configurable zones and rules reduce false-alert bandwidth and allow integrators to tailor behavior per site—pedestrian crossings ignored, vehicle direction enforced. In a 24/7 parking lot, filtering passenger-car exits from truck-lot entries saves 20–30% bandwidth.
- IP68 (2m/2hr) + IPX9K: Submersible rating is rare on outdoor domes and signals engineering over-spec. IPX9K high-pressure resistance is the real-world win—reliable operation through automated carwash rinse cycles and industrial yard spray-downs without port corrosion or lens fogging.
- H.265 with H.264 fallback: Bitrate reduction (40–60% vs. H.264 on quality parity) is significant on 24/7 high-resolution deployments. Fallback codec support ensures compatibility with older NVR firmware lacking H.265 decoders, eliminating integration risk on heterogeneous VMS ecosystems.
Deployment Considerations:
- Motorized lens maintenance: The varifocal mechanism benefits from stable mounting and vibration isolation. On pole-mounted or cable-tray installations, ensure mounting brackets are rigid and fasteners torqued per Pelco spec; hunting or backlash in zoom often indicates loose hardware, not mechanical failure. Schedule annual zoom-function spot-checks on high-vibration sites.
- FIPS 140-3 does not equal surveillance-ready out of box: Federal compliance requires correct network configuration (802.1X enrollment, HTTPS-only comms, TLS cipher strength). Ensure your NVR and network infrastructure support these protocols; older management systems may require firmware updates. Plan network integration testing before field deployment.
- Edge analytics are rule-based, not adaptive: Person/vehicle detection is reliable, but tuning loitering, beam-crossing, and crowd thresholds requires on-site calibration. If your site has dynamic lighting or seasonal environmental change, expect periodic rule refinement. Unlike AI-powered analytics, this is not a set-and-forget feature.
- Coastal/harsh-environment lifespan: IP68 and IPX9K ratings are excellent, but salt spray and high-humidity environments accelerate corrosion of mounting hardware and connector pins. Specify stainless-steel fasteners and dielectric grease on all external connectors; budget for preventive replacement on 3–5 year cycles in marine settings.
- PoE Class 3 is baseline; external power recommended for extended cable runs: Standard 802.3at PoE delivers ~13W to this camera. For cable runs exceeding 200 feet or if IR supplementary lighting is needed, deploy external 24V/12V power to avoid voltage drop and ensure consistent performance.
The SRXE4-4V9-EMD1 is the right choice for federal compliance-driven deployments, harsh outdoor environments, and integrators who want operational flexibility (remote zoom, edge analytics tuning) without sacrificing uptime. It's overspecced for straightforward residential or small-retail perimeter jobs, but on government facilities, airports, and utility corridors, the FIPS certification, vandal rating, and environmental durability justify the investment. See the Pelco catalog for additional Sarix Series options and management platform compatibility.
