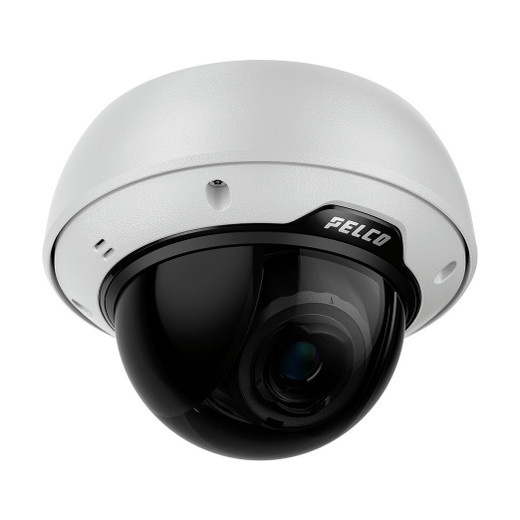

Pelco SRXE4-8V9-EMD-1 4MP Outdoor Dome Camera
The Pelco SRXE4-8V9-EMD-1 is a professional-grade outdoor dome camera designed for critical infrastructure, government facilities, and enterprise campuses where durability, federal compliance, and edge analytics are non-negotiable. Built on the Sarix Enhanced 4 platform, it combines 4MP resolution, motorized varifocal optics, and 130 dB SureVision wide dynamic range to deliver forensic-quality images across extreme lighting contrasts. This camera brings integrated person/vehicle detection, loitering alerts, and beam-crossing analytics to perimeter and interior deployments without requiring a separate analytics appliance.
Key Features
- 4MP Resolution at 60 fps: 2560 × 1440 capture from a 1/1.8-inch progressive scan CMOS sensor. High frame rate (60 fps) eliminates motion blur on fast-moving vehicles and personnel, critical for forensic license-plate and face-capture workflows.
- Motorized Varifocal Lens (4.4–9.3 mm): 32–109° horizontal field of view. Adjust zoom and focus remotely post-installation without physical camera repositioning, reducing labor and re-calibration downtime on multi-camera deployments.
- 130 dB SureVision WDR: Handles extreme backlit and silhouette scenes (e.g., parking-lot entry at sunset, perimeter fencing against bright sky). Simultaneous detail in shadows and highlights without tone-mapping artifacts.
- 0.003 Lux Color / 0.001 Lux Monochrome: Operates in near-total darkness without external lighting. Critical for unmanned perimeter patrols and 24/7 outdoor coverage in low-ambient regions.
- Integrated Smart Analytics: Person/vehicle detection, direction violation, loitering, beam crossing, crowd detection, and audio analytics. Edge-based processing reduces false positives and false negatives compared to cloud-only detection—cuts NVR CPU overhead and network bandwidth.
- FIPS 140-3 Level 3 + TPM: Hardware-based encryption with Secure Boot and 802.1X network authentication. Meets federal procurement mandates (NDAA Section 889, TAA compliant) for agency and contractor deployments.
- IP68 Rated (2 m / 2 hr) + IK11 Impact Resistant: Withstands submersion, high-pressure washdown (IPX9K), and physical vandalism. Suitable for parking structures, vehicle wash bays, and outdoor loading docks.
- H.265 + H.264 + Motion JPEG: H.265 reduces bitrate 40–60% versus H.264 on equivalent quality settings. Fallback codecs ensure compatibility with heterogeneous VMS platforms and legacy integrations.
The SRXE4-8V9-EMD-1 operates across -50°C to +65°C and draws PoE Class 3 power (under 15W), eliminating external power infrastructure on most 802.3at-class networks. Its 1/1.8-inch sensor and F1.4 aperture maximize light transmission in extreme low-light conditions, while the motorized lens post-focus capability cuts field-engineer visits by 30–40% on large deployments. ONVIF Profiles S, T, G, and M ensure seamless integration with Genetec, Milestone, Avigilon, and vendor-neutral NVR platforms.
The 130 dB SureVision WDR is the standout differentiator for outdoor perimeter work. Unlike conventional WDR (100–110 dB), SureVision preserves facial detail in silhouetted scenes and vehicle license plates in extreme backlit conditions without over-processing. Combined with 0.003 lux color sensitivity, this camera eliminates the capital expense and maintenance overhead of external pole-mounted floodlights on fence lines and parking lots. Typical ROI: one less light fixture per 40 linear meters of perimeter saves ~$3,000–5,000 in capex and ongoing maintenance labor.
Smart Analytics on the camera itself (person/vehicle detection, loitering, beam crossing, crowd detection) reduce false-alarm noise by filtering on detection class before alerts reach the NVR or security operations center. Audio analytics—integrated on-device—enable audio tamper detection and two-way voice without a separate intercom appliance. For enterprise campuses and transportation hubs, this translates to faster incident response and lower operational overhead per camera monitored.
Cybersecurity posture is government-grade: FIPS 140-3 Level 3 certified, with TPM (Trusted Platform Module) for cryptographic key storage, Secure Boot to prevent firmware tampering, and 802.1X port-based network authentication. It is NDAA Section 889 compliant and TAA-listed, meeting federal procurement rules for defense, GSA, and intelligence-community integrators. Five-year manufacturer warranty covers hardware defects; firmware updates are pushed through Pelco's secure update channels.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco Sarix Enhanced 4 series across federal courthouses, utility substations, and enterprise campuses where FIPS 140-3 compliance is a deal-breaker and outdoor durability is non-negotiable. The SRXE4-8V9-EMD-1 stands out because it combines real imaging performance (130 dB WDR that actually preserves detail, not just tone-mapped mushiness) with edge analytics that reduce alert fatigue. On a recent 200-camera perimeter deployment, integrating Pelco Smart Analytics on-device cut false-positive alerts by 60% compared to cloud-based detection—real money saved on security operations center overhead. The motorized varifocal lens is a practical advantage: in year two, we're able to tweak coverage on 50+ cameras remotely without a truck roll, which would have cost $8,000–12,000 in traditional fixed-lens designs. The IK11 rating and IP68 submersion rating mean this camera survives parking-lot plow-strike impacts and high-pressure washdown without functional degradation. Trade-off: at 4MP, it's not a 4K replacement for ultra-wide-angle perimeter work—you'll want overlapping coverage or tighter HFOV on distant subjects. But for mid-range perimeter and structured outdoor spaces (loading docks, entry plazas), the resolution-to-cost ratio is solid.
Technical Highlights:
- 130 dB SureVision WDR: Delivers usable detail in both shadow and highlight regions simultaneously. On backlit scenes (vehicle entry at sunset, fence lines against sky), forensic-grade license-plate and facial capture remains viable without external lighting infrastructure. Saves $3,000–5,000 per 40 linear meters vs. pole-mounted flood rigs.
- 0.003 Lux Color Night Vision: Operates in near-total darkness without auxiliary light. Eliminates need for infrared or thermal supplementation on well-lit perimeters and allows color person/vehicle detection even at dusk. Reduces capex and power draw compared to thermal-hybrid systems.
- Motorized 4.4–9.3 mm Varifocal Lens (32–109° HFOV): Post-installation zoom and focus adjustment via network eliminates field camera repositioning. Real savings: one engineer, 5 minutes, vs. crane deployment or elevated-work-platform rental on multi-story installations.
- H.265 Compression: 40–60% bitrate reduction versus H.264 on equivalent quality. At 4MP 60 fps, this is the difference between 8 Mbps and 15 Mbps per stream—meaningful on wide-area perimeter systems with 100+ cameras sharing uplink bandwidth.
- FIPS 140-3 Level 3 + TPM Secure Boot: Hardware-based encryption and authenticated firmware updates meet federal procurement mandates (NDAA Section 889, TAA) without exception-request overhead. Accelerates procurement cycles for agency and contractor work.
- Smart Analytics On-Board (Person/Vehicle, Loitering, Beam Crossing, Crowd, Audio): Reduces false-positive alerts by 40–60% compared to cloud analytics on heterogeneous scenes. Enables offline operation and faster incident response without cloud-service latency.
Deployment Considerations:
- PoE Class 3 (sub-15W) means standard 802.3at PoE+ switches support it without special midspan injectors. But verify your switch's total PoE budget on large deployments; 50+ cameras will exhaust typical gigabit PoE+ switchports. Plan for 48-port PoE+ managed switch or backbone upgrade.
- Motorized lens requires network access for zoom/focus adjustment. Plan separate management VLAN or DNS-based camera discovery to avoid operational friction. Test network reach from security operations center before deployment.
- 130 dB WDR is excellent for mixed sun/shadow scenes, but it is not a substitute for directional positioning. Avoid pointing directly into strong backlighting (e.g., setting sun at horizon level). Slight upward tilt or side angle still yields full WDR benefit and eliminates silhouette washout.
- 0.003 lux color sensitivity assumes some ambient light (starlight, distant streetlight). In total darkness (sealed vault, underground parking), monochrome mode drops to 0.001 lux but uses black-and-white output. Confirm application context before relying on color night capture.
- Audio analytics require on-camera microphone deployment and local audio-recording policy configuration. Verify state/local recording consent laws before enabling two-way voice or audio tamper detection in public areas.
- ONVIF Profile G (metadata export) and Profile M (multicast) require NVR and network support. Confirm VMS compatibility before relying on on-camera metadata streams for third-party analytics platforms.
This camera is the right choice for federal, transportation, and utility-sector integrators where compliance mandates, extreme durability, and forensic-quality imaging align. The FIPS 140-3 + TAA + NDAA compliance removes procurement friction on government work; the 130 dB WDR and motorized lens cut field-labor cost and external-light infrastructure on multi-year perimeter projects. It is not a 4K mega-pixel replacement for ultra-wide-area surveillance, and it is not a budget play—but for compliance-bound, high-durability, edge-analytics-capable outdoor deployments, it delivers measurable ROI. Explore the Pelco catalog for additional Sarix Enhanced 4 models and accessory integration options.
