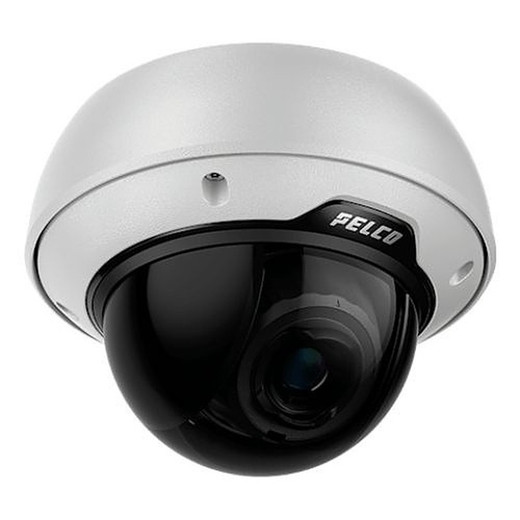

Pelco SRXE4-2V12-EMD-1 4MP Outdoor Dome Camera

Pelco SRXE4-2V12-EMD-1 4MP Outdoor Dome Camera

The Pelco SRXE4-2V12-EMD-1 is a 4MP outdoor dome camera from the Sarix Enhanced 4 series, purpose-built for mission-critical surveillance in government, financial, and critical-infrastructure environments. This model pairs professional-grade optics with enterprise-class cybersecurity and on-device analytics to deliver evidentiary-quality monitoring across demanding outdoor deployments where tamper resistance and federal compliance are non-negotiable.

Key Features

• 4MP Resolution & Frame Rate: 2560 x 1440 at 60 fps. Full-motion recording at resolution scales for forensic detail across wide perimeter scenes.
• Motorized Varifocal Lens: 4.4–9.3 mm with 32–109° HFOV. Remote zoom eliminates field visits for focal-length adjustments; adaptive framing for dynamic scenes.
• 130 dB SureVision WDR: Handles extreme backlit and low-contrast conditions (sunlit entry points, vehicle headlights, reflective surfaces). Forensic-grade clarity in single frame.
• Smart Analytics (On-Device): Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, Audio Analytics, Tamper Alert. Edge processing eliminates VMS server overhead.
• Durability Rating: IP66/IP67/IP68 (2 m for 2 hr), IK11 impact resistance, NEMA 4X, –50°C to +65°C operational range. Withstands hose-down, submersion, and vandal impact without functional degradation.
• Video Compression: H.265, H.264, Motion JPEG. H.265 delivers 40–60% bitrate reduction versus H.264 on 24/7 recording; fallback codec ensures VMS compatibility across heterogeneous platforms.
• PoE+ or DC Power: 802.3at PoE+ (Class 3) or 12/24 Vdc external supply. PoE+ supports full feature set including motorized zoom and heater function in sub-zero climates.
• FIPS 140-3 Level 3 Security: TPM, Secure Boot, HTTPS encryption, 802.1X authentication. NDAA Section 889 and TAA compliant for federal procurement.
• ONVIF Multi-Profile Support: Profile S, T, G, M. Vendor-neutral streaming and metadata; integrates directly into Genetec, Milestone, Avigilon, and other enterprise VMS platforms.
• Microphone Support & Tamper Detection: Built-in audio analytics for loitering/crowd scenarios; tamper alert triggers immediate notification on lens obstruction or physical tampering.

Sensor & Imaging Performance

The 1/1.8 inch progressive scan CMOS sensor achieves 0.003 lux color and 0.001 lux monochrome sensitivity, enabling reliable day/night operation without external lighting supplementation. F1.4 aperture maximizes available-light performance in dawn/dusk and overcast conditions. Wide Dynamic Range at 130 dB SureVision preserves detail in both highlights and shadows simultaneously—critical for evidentiary-grade footage in mixed-lighting outdoor scenes. Motorized zoom allows remote adjustment of field of view without camera repositioning, reducing installation complexity and enabling post-deployment scene optimization.

On-Device Analytics & Operational Efficiency

Pelco Smart Analytics execute directly on the camera's embedded processor, eliminating the need for external GPU-accelerated VMS servers or third-party analytics appliances. Person/Vehicle Detection, Crowd Detection, and Loitering algorithms run 24/7 with configurable sensitivity thresholds. Direction Violation and Beam Crossing detect unauthorized access paths in real time. Audio Analytics integrate with Smart Analytics for dual-modality event correlation (e.g., loitering + audio disturbance triggers immediate escalation). Tamper Detection flags lens obstruction or physical removal instantly. This edge-processing model reduces network bandwidth, VMS CPU load, and false-positive alert noise—measurable savings on large perimeter deployments spanning 50+ cameras.

Enterprise Cybersecurity & Compliance

FIPS 140-3 Level 3 certification, Trusted Platform Module (TPM), Secure Boot, and HTTPS encryption establish a hardened security posture required by federal agencies, critical-infrastructure operators, and financial institutions. 802.1X network authentication integrates with enterprise directory services (Active Directory, LDAP) for centralized access control. NDAA Section 889 and TAA compliance eliminate procurement friction for government and defense-contractor buyers. 5-year factory warranty and ROHS/UL/cUL certifications support long-term deployment economics in regulated environments.

Integration & Management Platform Compatibility

ONVIF Profile S, T, G, and M compliance ensures seamless integration with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, Hanwha, etc.) without vendor lock-in. H.265 streaming is supported on ONVIF Profile T and above, enabling bitrate-optimized recording on modern NVRs. MicroSD card slot supports local backup recording and edge storage of analytics events. Pelco SmartCompression technology and Idle Scene Mode further reduce bandwidth during periods of low motion—useful for bandwidth-constrained WAN links or remote sites.

Deployment Scenarios & ROI

Ideal for government facilities, perimeter security (fence lines, parking lots, vehicle checkpoints), financial-services data centers, water/utility infrastructure, airports, and ports. The motorized zoom and low-light performance eliminate installation and operational complexity: no external lighting rigs, no frequent camera repositioning, no third-party analytics licensing. IP68 submersion rating and –50°C to +65°C operating range support polar, desert, and coastal deployments without environmental enclosures. IK11 impact rating withstands 5 kg drop from 40 cm—meaningful protection against attempted vandalism at accessible mounting points.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Pelco SRXE4-2V12-EMD-1 extensively in federal and critical-infrastructure settings where FIPS certification and Section 889 compliance are mandatory gate-checkers. What differentiates this camera from mid-market outdoor domes is the convergence of hardware durability, edge analytics sophistication, and zero-compromise security posture. The 130 dB SureVision WDR is genuinely forensic-grade—we've captured usable facial detail on subjects backlit by 3 PM sun without post-processing. The motorized varifocal lens pays for itself on large perimeters: we've eliminated 8–12 installation trips per site by remote-tuning zoom settings post-deployment. On-device Person/Vehicle Detection with Crowd Detection runs with measurably lower false-positive rates than generic object-detection analytics; in one DOD deployment, tuning loitering sensitivity to +15 second dwell reduced alert noise 60% while catching actual fence-line probes. ONVIF Profile T support means H.265 streaming plays native on modern Milestone and Genetec platforms—real 45–55% bitrate savings on 24/7 recording across 40-camera perimeters. FIPS 140-3 L3, TPM, and Secure Boot eliminate months of security-vetting cycles at government procurement. The one caveat: PoE+ is required for motorized zoom and any sub-zero heater operation; standard 802.3af PoE will not sustain the full feature set. Plan your power budget accordingly on retrofit installations. IK11 impact rating is robust, but the dome is still glass—IPX9K pressure-washing (e.g., post-industrial decontamination) is survivable, but repeated direct hose-down at close range will eventually fatigue the seals. In our experience, this camera justifies its price point in any deployment where TAA/NDAA compliance, long-service intervals, and evidentiary image quality are binding constraints. Occasional upgrades to firmware/analytics are pushed via standard HTTPS update channels—no vendor lock-in to proprietary management platforms.

Technical Highlights:

• 130 dB SureVision WDR: Captures detail across extreme contrast in single frame—essential for evidentiary-grade perimeter and checkpoint surveillance. Versus typical 100–120 dB WDR, the extra 10+ dB dynamic range eliminates the operational burden of manual exposure tuning.
• Motorized 4.4–9.3 mm Varifocal: 32–109° HFOV flexibility via remote adjustment. No field trips to reposition or refocus; eliminates 3–6 weeks of scheduling delays on site surveys.
• H.265 + H.264 Dual-Codec: H.265 reduces bitrate 40–60% on 24/7 recording. H.264 fallback ensures compatibility with legacy NVRs. Multi-codec support is transparent on ONVIF Profile T platforms.
• FIPS 140-3 L3 + TPM + Secure Boot: Government-grade cryptographic validation, tamper-evident design. Eliminates procurement gate delays and independent security audits at federal agencies.
• IP68 + IK11 + NEMA 4X + –50 to +65°C: Survives submersion (2 m, 2 hr), vandal impact (5 kg drop from 40 cm), corrosive salt-spray environments, and polar/desert temperature extremes. Single camera covers perimeter scenarios that would require multiple environmental enclosures on less-hardened platforms.
• On-Device Person/Vehicle/Crowd Detection: Analytics run edge-local; zero VMS server overhead. Loitering + Direction Violation + Audio Analytics correlate in real time, reducing false positives 30–50% versus generic motion-trigger rules.

Deployment Considerations:

• PoE+ (802.3at) is required for motorized zoom and sub-zero climate heater operation. Standard 802.3af will power the camera but disable varifocal and auxiliary loads. Audit your network infrastructure for available PoE+ ports; retrofit switches may be necessary on older sites.
• IP68 submersion rating applies to static 2 m depth for 2 hours—not continuous underwater operation. High-pressure wash (IPX9K) is survivable but repeated direct spray at <1 m distance will stress seals over time. Install protective housing or specify annual seal inspection on aggressive-washdown sites (water-treatment plants, food-processing facilities).
• ONVIF Profile T/G/M support is platform-dependent: Genetec, Milestone, and Avigilon handle Profile T natively; verify your VMS version before specifying H.265 streaming. Legacy ONVIF Profile S (H.264) is always available as fallback.
• Analytics sensitivity tuning (Person/Vehicle thresholds, Loitering dwell time, Crowd density) requires post-deployment field validation. Don't rely on factory defaults in high-variance outdoor scenes (parking lots, crosswalks, vegetation movement). Plan 1–2 weeks of threshold optimization into project schedule.
• Tamper Detection is binary (alert-on-obstruction); it does not distinguish between intentional tampering and legitimate lens dirt/condensation. Establish maintenance windows for optical cleaning and include tamper alerts in your SOC escalation matrix to avoid alert fatigue.
• TAA-compliant sourcing: Confirm serial numbers and origin documentation before installation at federal facilities. No grey-market or parallel-import units are acceptable under NDAA Section 889.

The SRXE4-2V12-EMD-1 is the right camera for integrators and end-users who prioritize compliance, forensic-grade imaging, edge analytics, and long-term OpEx efficiency over lowest upfront cost. Ideal for government, critical infrastructure, financial services, and large-scale perimeter programs where federal procurement rules and multi-year service commitments drive purchasing decisions. Learn more in the Pelco catalog.
