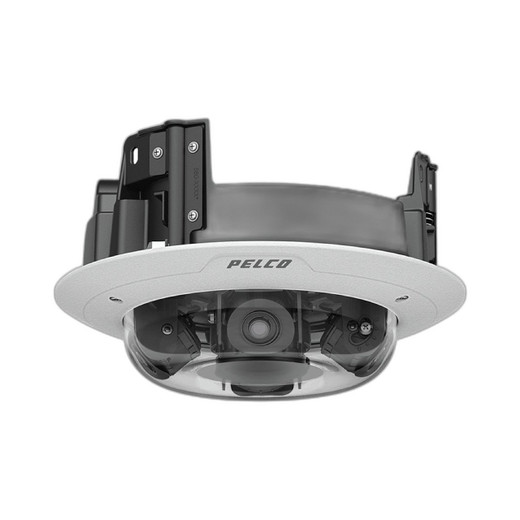

Pelco SMLE1-12V5-4H Sarix Multi 360 Degree 4-Sensor Camera

Pelco SMLE1-12V5-4H Sarix Multi Enhanced 4-Sensor 360° Camera

The Pelco SMLE1-12V5-4H is a professional multi-sensor panoramic camera system delivering complete 360° coverage from a single ceiling-mounted installation point. This four-sensor dome camera eliminates blind spots by providing four independent 90° video streams, each with dedicated analytics and monitoring capabilities. With 12MP total resolution across all sensors and advanced 130 dB SureVision WDR technology, this system is engineered for enterprise-level surveillance in open floor plans, retail spaces, and industrial facilities.

Key Features

• Full 360° panoramic coverage via four independent 90° sectors
• 12MP total resolution with 3MP per sensor head
• 3.3-5.7mm varifocal lens per sensor for flexible framing
• 130 dB SureVision wide dynamic range for high-contrast environments
• Dual video compression: H.265 and H.264 support
• Smart Analytics and Object Detection on each independent stream
• Four simultaneous ONVIF compliant video streams
• IP66/IP67 environmental protection and IK10 impact rating
• PoE+ powered via single network cable
• Operating range: -40°C to +65°C
• Built-in infrared night vision and day/night functionality
• microSD local storage support
• HTTPS encryption enabled
• 5-year manufacturer warranty

Technical Highlights

The SMLE1-12V5-4H employs four independent 1/2.8" CMOS sensors, each capable of extreme low-light performance at 0.018 lux. The multi-head architecture eliminates the need for four separate fixed cameras while reducing installation labor to a single ceiling drop and mount point. Each sensor stream is independently processed with Pelco Smart Analytics and object detection, enabling precise activity monitoring across all 360° coverage zones simultaneously.

Full ONVIF Profile compliance (S, T, G, M) ensures seamless integration with third-party VMS platforms and enterprise security infrastructure. The varifocal lens design allows per-sector zoom optimization without repositioning hardware. Dual compression codecs optimize bandwidth and storage based on network conditions and archival requirements.

Applications

• Retail environments requiring full floor coverage from center ceiling mount
• Warehouse and distribution centers with open layouts
• Manufacturing facilities and production floors
• Public venues and transportation hubs
• Data centers and server room monitoring

Important Deployment Consideration: VMS licensing must account for four simultaneous video streams from this single device. Total bandwidth equals four concurrent 3MP streams—plan recording infrastructure accordingly.

Product Documentation

📄 Download Product Datasheet (PDF)
