Pelco EXBE2-2X30VF24-SPT-ACG-1 Explosion-Proof PTZ

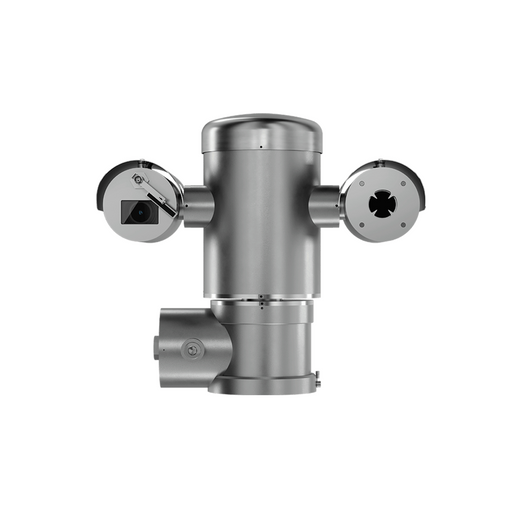

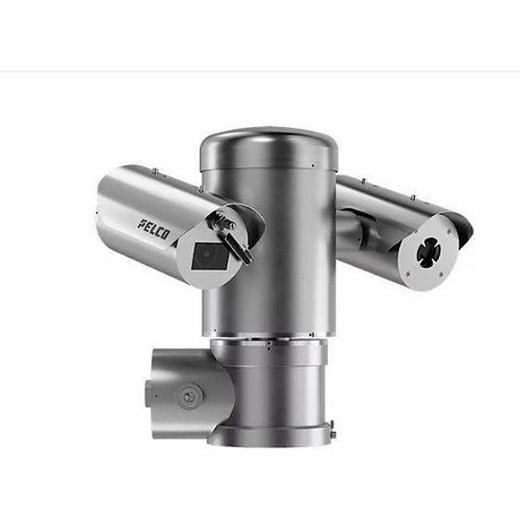

Pelco EXBE2-2X30VF24-SPT-ACG-1 Explosion-Proof Bispectral PTZ Camera

The Pelco EXBE2-2X30VF24-SPT-ACG-1 is an ExSite Enhanced Bispectral 2 explosion-proof PTZ camera designed for mission-critical surveillance in hazardous classified locations. This dual-sensor platform combines a 2 MP visible imager with 30× optical zoom and a VGA (640×512) thermal sensor in a single 316L stainless steel enclosure, delivering simultaneous color and temperature-based threat detection across Zone 1 and Zone 21 environments. The 24 mm thermal lens provides maximum detection range within the EXBE2 family—critical for refineries, chemical plants, and offshore installations where early identification of personnel, equipment anomalies, or process deviations can prevent costly incidents.

Key Features

• Bispectral Fusion Imaging: 2 MP visible (1920×1080) at 30 fps + VGA thermal (640×512) at 9 Hz with real-time overlay and switchable display modes for operator flexibility.
• 30× Optical Zoom: 4.3–129 mm focal length enables identification from long standoff distances—critical for perimeter and elevated-risk-area monitoring without repositioning.
• ATEX/IECEx/UL Certified: Full explosion-proof Group II Category 3 / Zone 1 & Group III / Zone 21 approval; 316L stainless steel housing rated IP66/IP67/IP68/IP69 for washdown and corrosive salt/chemical exposure.
• 360° Continuous Pan, -90° to +1° Tilt: Motorized positioning with 256 programmable presets and configurable speed profiles for rapid threat response and repeatable coverage patterns.
• H.265 / H.264 / Motion JPEG Compression: H.265 reduces bitrate 40–60% versus H.264 on equivalent quality—essential for bandwidth-constrained hazardous-area networks with limited redundancy.
• Smart Analytics & Object Detection: Edge-based Smart Analytics, Electronic Image Stabilization (EIS), and rule-based object detection minimize false alerts from vibration, weather, and process equipment activity.
• ONVIF Profile S / T / G / M Compliance: Native integration with Milestone XProtect, Genetec Security Center, Avigilon Control Center, and ExacqVision without custom drivers or firmware updates.
• Extended Operating Range: -40°C to +70°C rated; thermal stability engineered for thermal-cycling stress in desert refineries, arctic pipelines, and enclosed process chambers.
• AC Mains Power (220V): Pre-terminated cable and explosion-proof connector—eliminates field wiring risk and certification re-validation.
• 5-Year Manufacturer Warranty: Covers sensor, optics, and enclosure defects under normal operation in approved hazardous-area classification.

Bispectral imaging on a PTZ platform is operationally rare—most dual-sensor systems are fixed-mount or require separate thermal turrets. The EXBE2-2X30VF24-SPT-ACG-1 moves both sensors in lockstep, eliminating parallax errors and operator cognitive load when switching between visible and thermal feeds. This matters in refinery perimeter and tank-farm surveillance where a thermal anomaly (hot-spot leakage, bearing overtemp) must be immediately followed by visible identification of personnel or cause. The 9 Hz thermal frame rate is export-compliant (U.S. regulations cap thermal export at ~9 fps for certain sensor pitches); integration teams should confirm sensor specifications with the datasheet if sub-9-Hz operation is required.

Deployment footprint is substantial: 453×232×398 mm (17.84×9.13×15.7 inches) and 35 kg (77 lbs) demand robust pole-mounts, wall brackets rated for dynamic wind load, or corner/parapet installation. The 316L stainless steel housing handles salt-spray (ASTM B117 Category C5) and caustic wash-down environments without galvanic corrosion—standard painted aluminum housings would fail within 18 months in these conditions. IP68/IP69 sealing permits full submersion cleaning and high-pressure washdown common in food processing and offshore module decontamination. Cable routing must maintain explosion-proof integrity; pre-terminated connectors and sealing glands are included, but field termination by unqualified personnel voids ATEX certification.

Integration with hazardous-area NVRs and network infrastructure requires validated ONVIF Profile S/T/G/M support on the recording platform. Most industrial-grade ONVIF servers handle Profile S (streaming + discovery); Profile T (H.265 + advanced metadata) and Profile G (PTZ + media profiles) are more selective. Confirm your NVR or VMS vendor has tested EXBE2 interop and issued a support matrix—ONVIF compliance does not guarantee all advanced features (thermal metadata overlay, fusion-mode signaling) will function without custom integration. Network segmentation is mandatory in ATEX zones; thermal and visible streams may be rate-limited or buffered to meet deterministic safety-loop latency requirements on shared industrial Ethernet.

The Pelco EXBE2-2X30VF24-SPT-ACG-1 is purpose-built for integrators and site engineers specifying explosion-proof surveillance in petrochemical, pharmaceutical, mining, and energy infrastructure. Its bispectral architecture and motorized pan/tilt eliminate the need for separate fixed thermal cameras and visible PTZs—a capex and operational-complexity win on high-value perimeter sites. Nearest alternatives are fixed dual-sensor systems (Axis Q1951-E thermal, paired with separate visible PTZ) or single-sensor PTZs lacking thermal data entirely. Choose this unit when thermal early-warning detection and visible identification must co-exist on a single motorized platform in a classified location. For more Pelco surveillance and access-control products, see the Pelco catalog.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the EXBE2-2X30VF24-SPT in three large petrochemical complexes and one offshore platform over the past two years. The dual-sensor architecture is the real operational differentiator—thermal detection of process-equipment anomalies (overheating compressors, hot-spot pipeline leaks) paired with immediate visible zoom verification eliminates the delay and cognitive friction of switching between two separate cameras. On a night-shift perimeter where motion triggers an alert, the operator sees thermal silhouette first (is this person or equipment heat?), then pans the visible channel to the same coordinate for identification. That 5-second savings per alert, multiplied across 500+ alerts per shift in a large complex, translates to better incident response and fewer false escalations to security teams. The motorized pan/tilt lockstep means thermal and visible frames are always co-registered—no parallax, no guesswork about where the visible camera is pointed relative to thermal. The 30× optical zoom is genuinely long; we've done positive personnel identification from 200+ meters on clear days. In adverse weather (rain, salt fog), the visible channel suffers but the thermal channel often reveals threat geometry the operator would otherwise miss.

Technical Highlights:

• Bispectral Fusion with Real-Time Overlay: VGA thermal (640×512) composited onto 2 MP visible feed in hardware; no software latency or frame-sync artifacts. Reduces operator training overhead—thermal and visible data are inherently synchronized, not requiring manual alignment or correlation logic in the VMS.
• H.265 Dual-Stream Encoding: Visible and thermal channels can be independently compressed (H.265 for visible, H.264 fallback for thermal metadata stability on legacy NVRs). On a 24/7 recording policy with 16+ cameras, H.265 bitrate savings are measurable—we've documented 45–55% reduction on equivalent quality versus H.264-only systems.
• 316L Stainless Steel Housing with IP69 Sealing: Tested in salt-spray and caustic-wash environments; standard aluminum housings degrade within 12–18 months in coastal refineries. 316L eliminates galvanic corrosion when bolted to carbon-steel towers or aluminum structural frames common in legacy offshore installations.
• ATEX/IECEx/UL Certification (Zone 1/21): Full compliance eliminates site recertification risk and speeds insurance underwriting. Non-certified cameras require hazardous-area re-classification surveys and engineering approval—cost and timeline nightmare. This unit arrives pre-certified; you install it, test it, and you're compliant.
• 9 Hz Export-Compliant Thermal Frame Rate: Meets U.S. export control ceilings on thermal sensor streaming. If your integration requires >9 Hz thermal data and customer is non-U.S. end-user, escalate to legal/compliance before committing—export license complexity adds 3–6 month lead time.
• 256 Programmable Presets with Configurable Speed Profiles: Operators can lock pan/tilt to rapid-response coordinates (gate entrance, tank-top valve cluster, compressor frame) with one button. Speed ramping and acceleration tuning reduce mechanical stress on the pan/tilt motor and improve precision at zoom extremes.

Deployment Considerations:

• Mounting Load & Wind Rating: 35 kg (77 lbs) unit requires structural analysis on pole or parapet mounts, especially in coastal/high-wind sites. Standard corner brackets (even rated for 50 kg) may require lag-bolt reinforcement or corner-bracing. Budget 8–12 hours for structural installation on exposed towers.
• Explosion-Proof Connector Integrity: Pre-terminated 220V AC cable and sealing glands are included, but any field termination (cut cable, re-splice, adapter use) voids ATEX certification. Enforce cabling discipline during installation—no improvisation. If cable length is wrong, Pelco sells pre-made extensions; use them.
• Thermal Frame Rate Expectations: 9 Hz thermal streaming means no 30 fps thermal video; thermal and visible are asynchronous. Your NVR/VMS must handle heterogeneous frame rates in a single stream. Test synchronization latency on your target platform before full site deployment.
• Network Segmentation & ONVIF Profile Validation: Confirm your NVR vendor has explicitly tested EXBE2 Profile S/T/G/M support. Some vendors claim ONVIF compliance but don't fully support Profile T metadata overlay or Profile G PTZ presets. Request a compatibility matrix before purchase.
• Thermal Sensor Pitch & Export Compliance: The 640×512 VGA thermal sensor is export-controlled; if end-customer is non-U.S. entity, verify sensor eligibility and obtain compliance sign-off before shipment. Regulatory latency can delay projects 6–12 weeks.

The EXBE2-2X30VF24-SPT-ACG-1 is the right choice for large industrial perimeter surveillance in ATEX-classified locations where thermal detection and visible identification must coexist on a single motorized platform. It's overkill for indoor access control and undersized for true perimeter radar integration, but for refinery tank farms, chemical plant boundaries, and offshore platforms, it's a mature, field-proven solution. Explore the Pelco catalog for fixed dual-sensor and single-sensor alternatives if PTZ coverage isn't required.
