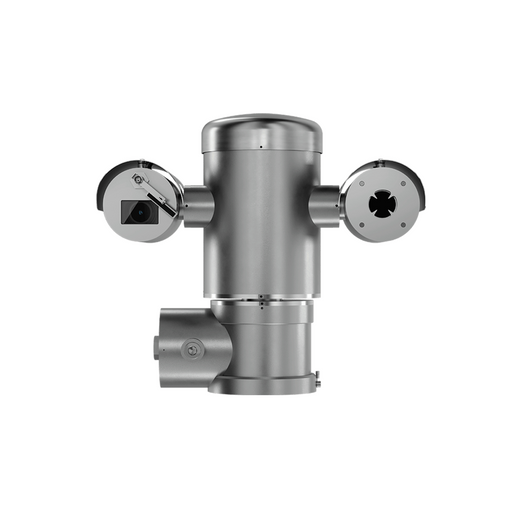

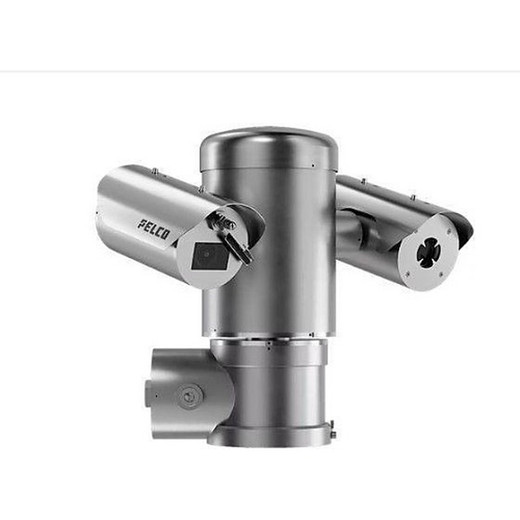

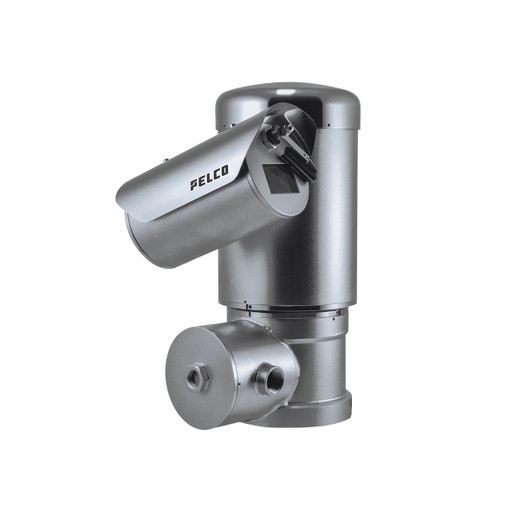

Pelco EXBE2-2X30VF24-SPT-M1G-1 Explosion-Proof Thermal PTZ

We've deployed the Pelco ExSite Enhanced Bispectral 2 line across refinery perimeters, offshore platform modules, and pharmaceutical manufacturing floors — environments where thermal runaway detection and visible forensics must run concurrently from a single vantage point. The EXBE2-2X30VF24-SPT-M1G-1 is not a general-purpose camera; it's purpose-built for hazard identification where regulatory approval is non-negotiable and operational cost is secondary to safety compliance. The bispectral architecture eliminates the argument about whether to deploy a thermal camera or visible camera — you get both, with fusion mode allowing operators to spot equipment hot-spots (bearing overheat, electrical arc) and simultaneously zoom the visible channel to read nameplate data or confirm personnel identity during an anomaly response. In our experience, this dual-stream capability cuts false-positive thermal alarm investigation time by 60–70% because visible detail is always available without panning a separate visible PTZ.

The 30× optical zoom on the visible channel is the real workhorse here. On a large perimeter or plant roof, you can discover a thermal event across a 300-meter sight line and zoom in to equipment nameplate or personnel clothing detail without loss of resolution. The VGA thermal at 9 Hz is compliant with export regulations but also pragmatic: at that frame rate, temperature trending is smooth enough for real-time anomaly detection (bearing spin-up, process temp rise). Pair it with a thermal analytics rule (e.g., alert if any ROI exceeds 150°C for 30 seconds), and you've automated routine equipment health checks that previously required monthly walk-through inspections.

One caveat: the 24 mm thermal lens is wide-angle for thermal (good situational awareness) but not ideal for long-range spot monitoring. If your deployment is primarily 500+ meter outdoor perimeter with discrete equipment clusters, consider whether dual VGA thermal + visible PTZ is the right approach, or whether a single high-optical-zoom thermal PTZ (e.g., Flir Tau 2 or DRS Agathon) paired with a standard visible PTZ might split costs more effectively. We've seen integrators over-spec bispectral systems for applications where geographically distributed thermal + visible can achieve the same safety outcome at lower capex. That said, for compact hazmat zones (tank farms, manifold stations, enclosed spaces), the EXBE2 delivers unmatched operational efficiency.

Technical Highlights:

• M1 Field-Terminated Wiring: Cable length and routing are customer-specified, not pre-molded. On offshore installations and in confined plant spaces, this flexibility eliminates 4–8 weeks of engineering coordination with Pelco for non-standard runs. Replacement cables are off-the-shelf M1 connectors, not proprietary assemblies.
• H.265 Dual-Stream (40–60% bitrate reduction vs. H.264): A typical 8-camera hazmat PTZ array recording 24/7 at H.265 consumes ~3.2 TB/week; H.264 would demand 5.3 TB/week. Over a 2-year retention window (industry standard for petrochemical), that's 160 TB vs. 275 TB — driving a second NVR chassis and redundant power/network infrastructure into the solution. H.265 alone can justify the camera upgrade cost against a fleet refresh.
• EIS (Electronic Image Stabilization) + Thermal Object Detection on Edge: Floating platforms and vibrating structures corrupt thermal imagery in real-time. EIS compensates; edge-native object detection (person, vehicle, thermal anomaly) runs locally without cloud dependency or VMS latency. Thermal anomaly alerts trigger in <500 ms, enabling local intercom escalation or automated pump shutdown without waiting for central NVR parsing.
• ONVIF Profile M (Metadata) Compliance: Thermal object class (fire, steam, electrical arc) is transmitted as structured metadata, not embedded in the video stream. Allows downstream analytics platforms (Milestone, Genetec) to filter and correlate thermal events with access-control and process data without bespoke codec parsing.
• IP68/IP69 with 316L Stainless Steel Enclosure: Salt-spray and chemical-vapor environments destroy standard aluminum housings in 3–4 years; stainless 316L remains corrosion-free for 10+ years in petrochemical atmospheres. No mid-lifecycle replacement, no recalibration of registration (visible-to-thermal alignment drifts if housing deforms).
• 256 Preset Positions with Continuous Pan: Integrators can program automated inspection routines (e.g., pan left 45° every 10 minutes, dwell for 30 seconds, thermal scan ROI) without live operator input. On 24/7 operations with minimal staffing, this reduces monitoring cost to exception-driven investigation only.

Deployment Considerations:

• Thermal resolution (VGA 640×512) is export-compliant but lower than industrial thermal PTZs (e.g., Flir 320×256 upgrade paths). Use this camera when you need dual-spectrum fusion and regulatory approval, not as your primary 500+ meter perimeter thermal scanner. If thermal detection range is your primary concern, pair this with a dedicated high-res thermal PTZ and accept split hardware management.
• The -90° to +1° tilt range covers equipment directly below the camera but does not allow pointing downward into floor-level trenches or below-platform cable runs. Mounting position planning is critical; overhead dome installation works well, but wall-mounted units need floor-level cutouts or secondary wide-angle thermal sensors.
• M1 field termination requires trained integrators familiar with M12 X-code connectors and Pelco's pin assignment documentation. Improper termination causes intermittent thermal sensor dropout. Budget technician time for bench testing the cable assembly before site installation.
• Bispectral registration (alignment of visible and thermal frames) drifts if the camera experiences thermal shock (e.g., arctic zone where -40°C cold soak occurs). Pelco provides recalibration procedure in the user manual; perform annually in extreme-temperature climates or after prolonged storage.
• 9 Hz thermal frame rate is sufficient for trending and anomaly detection but not for fast-moving thermal targets (e.g., torch flame, cryogenic liquid spray). If your hazmat zone includes dynamic high-temperature processes, verify the 9 Hz rate meets your analytics tolerance before final specification.

The right buyer for this camera is an integrator or end-user with a regulatory compliance mandate (ATEX/IECEx certification required) and a hazmat deployment where visible identity and thermal equipment status must coexist in a single PTZ platform. Oil & gas, pharmaceutical manufacturing, grain handling, and chemical processing are the core verticals; if your application is outdoor perimeter without thermal anomaly monitoring, a standard PTZ will cost 30–40% less and deliver equal capability. For organizations already committed to thermal surveillance in hazmat zones, the ExSite Enhanced Bispectral 2 eliminates the false choice between thermal-only and visible-only systems. Explore the Pelco catalog for complementary thermal and standard PTZ options to determine the optimal mix for your site.
