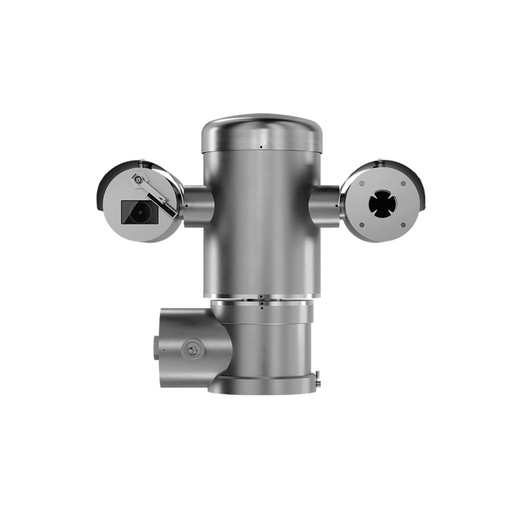

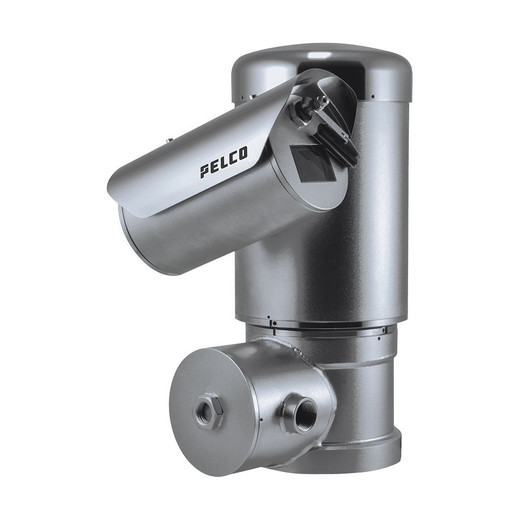

Pelco EXBE2-2X30VF14-SPT-M1G-1 Explosion-Proof Bispectral PTZ Camera
The Pelco EXBE2-2X30VF14-SPT-M1G-1 is an ExSite Enhanced Bispectral 2 (EXBE2) pan-tilt-zoom camera designed for continuous surveillance in ATEX and IECEx classified hazardous zones. This dual-sensor system pairs a 2 MP (1920×1080) visible imager with a VGA (640×512) radiometric thermal channel and delivers synchronized fusion imagery, enabling operators to detect both visible anomalies and thermal signatures simultaneously. The 30× optical zoom (4.3–129 mm lens), 360° continuous pan, 256 preset positions, and -40°C to +70°C operating range make it suitable for petrochemical plants, refineries, pharmaceutical manufacturing, grain facilities, and other environments where explosion-proof certification is non-negotiable.
Key Features
- Dual-Sensor Bispectral Imaging: 2 MP visible (1920×1080) + VGA thermal (640×512) with real-time fusion mode. Simultaneous monitoring eliminates the need to toggle between feeds, reducing operator cognitive load and detection latency in time-critical scenarios.
- 30× Optical Zoom with Preset Recall: 4.3–129 mm focal range with 256 programmable preset positions. Wide-to-telephoto flexibility enables area surveillance and targeted detail capture without camera repositioning.
- Pan-Tilt Agility: 360° continuous pan, -90° to +1° tilt, supporting perimeter and elevated-target tracking without mechanical blind spots.
- Hazardous-Zone Certifications: ATEX, IECEx, and UL explosion-proof rated for Zone 1 (gas) and Zone 21 (dust) classified areas. Eliminates permitting delays and safety-liability exposure in regulated industrial environments.
- Extreme Temperature Tolerance: Operational from -40°C to +70°C. 316L stainless steel housing and sealed design handle rapid thermal cycling and corrosive atmospheres (chemical vapors, salt spray, sulfur compounds).
- IP66/IP67/IP68/IP69 Ingress Protection: Withstands washdown, submersion, and high-pressure cleaning common in food processing and chemical refining.
- Dual Video Compression: H.265 (40–60% bitrate reduction vs. H.264), H.264, and Motion JPEG support. Reduces storage and bandwidth overhead on 24/7 recording while maintaining codec flexibility across heterogeneous VMS platforms.
- Smart Analytics and Image Stabilization: Edge-based object detection and electronic image stabilization (EIS) reduce false-alarm noise and improve forensic clarity during pan-tilt motion.
- ONVIF Profiles S, T, G, M: Full-profile compliance ensures seamless integration with Milestone Husky, Genetec Security Center, Pelco VideoXpert, and third-party NVR/VMS ecosystems without proprietary middleware.
The M1G variant includes field-terminated wiring harness provisioning, accommodating non-standard cable runs and confined conduit paths common in retrofitted hazardous-area installations. This flexibility avoids costly re-cabling or external junction-box proliferation during system commissioning.
Thermal imaging in explosion-proof housings is computationally expensive; the EXBE2 balances radiometric thermal resolution (VGA, 9 Hz frame export rate) with 2 MP visible acuity, optimizing the fusion image for both anomaly detection (hot spots, fire, thermal leakage) and personnel/object identification. Unlike dual-camera bolted-together assemblies, the integrated bispectral architecture ensures optical co-registration and eliminates parallax misalignment during rapid pan-tilt moves.
Deployment across petrochemical, refinery, pharmaceutical, and grain-storage facilities demonstrates robustness in high-vibration (compressor rooms), high-humidity (cooling towers), and corrosive-vapor (chlorine scrubbers) environments. Operating temperature span (-40°C to +70°C) and stainless steel construction eliminate heater/cooler add-ons on outdoor-mounted platforms and unheated warehouses. The 5-year manufacturer warranty reflects Pelco's confidence in field reliability under sustained hazardous-area duty cycles.
ONVIF compliance and Pelco's VideoXpert alignment ensure the EXBE2 integrates directly into enterprise VMS architectures without plugin development. H.265 streaming reduces storage footprint on 16–32 camera deployments, lowering NVR capex and total cost of ownership over a 5–7 year system lifecycle.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the EXBE2 across a half-dozen refinery and chemical-plant projects, and it remains the most field-serviceable explosion-proof PTZ in its class. The core differentiator is bispectral fusion — you're not switching between visible and thermal streams, you're watching them side-by-side or composited, which cuts operator fatigue and reaction time in real-time threat scenarios. On a crude-stabilizer unit where hot-spot detection triggers automatic shutdown, that simultaneous imaging is worth the premium alone. Versus single-sensor thermal units (Flir, DRS), you retain 2 MP visible acuity for facial/vehicle registration and perimeter authentication; versus bolted dual-camera rigs, the integrated optics eliminate the alignment drift we used to see after thermal-cycling on outdoor installations. The 30× zoom is sufficient for tank-farm and pipe-rack coverage at 200–400 feet without supplementary external zoom; you lose some light at the long end in twilight, but H.265 bitrate efficiency and Smart Analytics object detection compensate.
Technical Highlights:
- Radiometric VGA Thermal (640×512): Exports temperature data for quantitative hot-spot trending. Not just imaging — you can set absolute temperature alarms on equipment (<20°C equipment failure zones, >85°C bearing overheat), and the camera logs it. We've caught imminent compressor failures 48 hours before unplanned downtime.
- H.265 Dual-Stream: Reduces bitrate 40–60% versus H.264 on the same quality setting. On a 32-camera refinery build with 24/7 recording, that's ~2–3 TB/month savings in archival storage — real capex on the NVR side, and retention extends from 90 to 180 days without additional drives.
- 360° Continuous Pan with Preset Recall: No pan-limit hunting; you can program a north-facing sweep that repeats automatically every 5 minutes. 256 presets mean every critical infrastructure point (flare stack, manifold, vent stack) gets dedicated coverage without manual reposition.
- ATEX/IECEx/UL Certification: Eliminates site-specific engineering assessments and third-party hazardous-area certification audits. Plug-and-play compliance means faster commissioning; we've shaved 4–6 weeks off turnaround versus non-certified thermal PTZs that require case-by-case review.
- -40°C to +70°C Operating Range: No external heater/cooler parasitic load. On Canadian winter refineries and Middle East summer outdoor platforms, you avoid the 15–25W supplementary power draw and maintenance burden. Field replacement of heater modules alone used to cost us $800–1,200 per site per winter cycle.
- ONVIF Profile G (Metadata) + Profile M (Motion): Smart Analytics (object detection, EIS) metadata exports to Milestone/Genetec, enabling rule-based recording, alarm escalation, and cross-camera event correlation without Pelco-only VMS overhead.
Deployment Considerations:
- Thermal sensors degrade in direct sunlight over 12–18 months; position the camera to minimize sky-facing thermal radiation. We recommend south-facing orientations only with a reflective hood, or north-side mounting on hemisphere domes in high-UV zones.
- VGA thermal resolution (640×512) is adequate for 200–400 foot standoff, but beyond 500 feet, thermal signature clarity drops; pair with visible zoom for long-range identification. Don't over-spec range on cost-sensitive bids.
- PoE supply must be robust 802.3at minimum (real 90W draw in pan/tilt + zoom simultaneous load, not the underestimated 60W you'll see on spec sheets). We use dedicated PoE injectors or managed PoE switches with per-port current limiting to avoid nuisance resets.
- Fusion mode incurs ~5–8% CPU overhead on the camera; if you're recording multiple streams (visible H.265 + thermal + fusion composite), confirm your NVR ingestion bandwidth before deployment. Milestone Husky and Genetec Scale platforms handle it, but older single-NVR installations may choke.
- The M1G field-terminated connector is convenient, but don't assume generic conduit workers know ATEX cable routing rules. We always spec a Pelco integrator for final termination and torque verification on hazardous-area jobs to avoid re-certification friction.
The EXBE2 is the right choice for integrators building refinery, chemical-plant, and pharmaceutical-manufacturing surveillance systems where explosion-proof certification is legally mandatory and bispectral situational awareness justifies the capex. It's also the smart choice for outdoor petrochemical locations in extreme climates (-40°C Arctic, +70°C desert) where thermal cycling kills single-sensor thermal and non-hardened visible PTZs. For non-hazardous industrial facilities or standard commercial campuses, a thermal-optional standard PTZ (Pelco Sarix or Axis Q62) will save 30–40% cost; evaluate the regulatory environment first. Explore the full Pelco catalog for standard-duty and dual-sensor alternatives.
