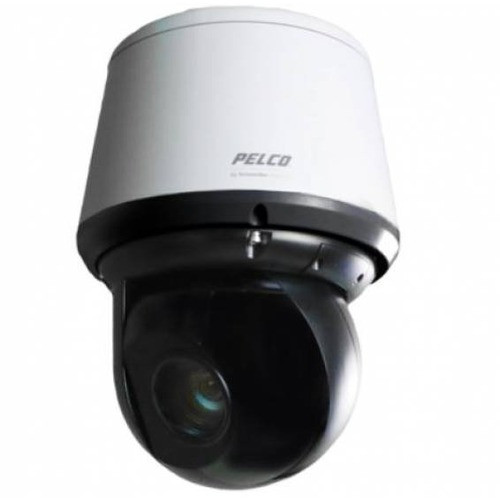

Pelco ES6230-02 Esprit 2MP 30x Outdoor PTZ Camera
The Pelco ES6230-02 is a professional-grade outdoor PTZ dome camera engineered for expansive surveillance coverage in demanding environments. Featuring 30× optical zoom with a 1/2.8-inch Exmor progressive scan CMOS sensor, this camera delivers crisp 2MP video at 1920×1080 resolution and 60 fps frame rates. Its 130 dB SureVision wide dynamic range ensures clear imagery across extreme lighting transitions, while intelligent on-camera analytics automate threat detection and monitoring workflows. Powered by IEEE 802.3at PoE+, installation requires only a single network cable—eliminating the need for local AC mains at the camera position.
Key Features
- 30× optical zoom (4.3–129 mm focal length) with 77° to 2.6° HFOV range
- 360° continuous pan and motorized tilt for comprehensive area coverage
- 130 dB SureVision WDR for high-contrast environments
- Ultra-low light sensitivity: 0.1 lux color, 0.01 lux monochrome
- H.265 and H.264 video compression for efficient bandwidth and storage
- 256 programmable presets and automatic patrol tours
- Integrated auto-tracker, adaptive motion detection, and abandoned object detection
- ONVIF Profile S, T, G, and M compliance for multivendor system integration
- IP66/IP67 ingress protection and IK10 impact rating
- Operating range: −40°C to +60°C for cold and hot climates
- 5-year manufacturer warranty
Technical Highlights
The ES6230-02's 1/2.8-inch Exmor sensor delivers exceptional low-light performance, capturing color detail down to 0.1 lux and monochrome imagery at 0.01 lux. H.265 compression reduces bandwidth demand while maintaining image fidelity, critical for high-frame-rate surveillance. PoE+ Class 3 power delivery supports the camera's motors and zoom mechanisms through a single Ethernet connection, simplifying deployment in outdoor locations where AC infrastructure is sparse or costly. ONVIF compliance ensures compatibility with leading VMS platforms and third-party integrations.
Ideal Applications
Deploy the ES6230-02 for perimeter security, parking structure monitoring, campus surveillance, transportation terminals, and critical infrastructure protection. Its continuous pan capability and 256 presets enable systematic coverage of large outdoor areas from a single mounting point, reducing camera counts and total system cost.
Product Documentation
📄 Download Product Datasheet (PDF)
