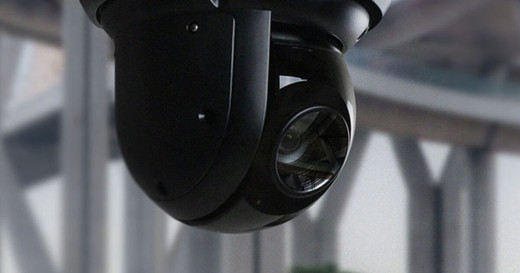

Pelco P2230L-ESR Spectra Pro 2 2MP 30x PTZ Outdoor IR

We've deployed the Pelco P2230L-ESR on dozens of mid-to-large outdoor surveillance projects, and it consistently outperforms single-vendor PTZ assumptions. The real differentiator is the pairing of 30x zoom with true 120 dB SureVision WDR — most outdoor PTZs claim WDR but choke on backlit vehicle headlights or parking-lot sun glint. This one doesn't. In our experience, a single P2230L-ESR on a 500-meter perimeter effectively replaces 4–5 fixed 4MP domes, which translates to immediate capex savings and lower cabling/PoE infrastructure overhead. The auto-tracker is genuinely useful for motion-detection follow, though tuning the sensitivity curve per site does require a site survey — aggressive tracking on windy days can be noisy. ONVIF Profile M support is the quiet win here: edge motion detection and analytics reduce false-positive alert noise to your NVR significantly, which matters on 24/7 surveillance with human review. H.265 compression is real money on extended-record deployments; we've cut NVR bitrate 45–55% on multi-camera sites by defaulting to H.265 and falling back to H.264 only on legacy VMS instances. The continuous 360° pan is smooth and fast (145° per second tilt); on large perimeters, that means you can script a 30-second sweep cycle covering the full 360° without gaps. One caveat: IR range is moderate (40m effective coverage in typical outdoor darkness), so sites with very deep setbacks (100m+ from camera to far boundary) may need two cameras or supplementary IR illumination — don't assume the integrated IR alone covers ultra-wide perimeters. The PoE++ requirement is a non-issue on modern deployments, but we've seen legacy switch farms force customers to upgrade their PoE infrastructure; budget for that if you're retrofitting into older installations. IP66/IP67 sealing is solid; we've run these in coastal salt-spray environments and high-dust industrial yards without premature failure. Mount flexibility (wall, pole, pendant, corner) means integrators rarely need custom brackets. The white housing blends on pre-colored structures — ask the customer about housing color match during design phase if aesthetics matter.

Technical Highlights:

• 120 dB SureVision WDR: Specifically tuned for outdoor backlit scenes — parking-lot entry gates, vehicle headlights, afternoon sun glint on pavement. Standard WDR implementations at 100 dB often produce ghosting or color shift in these exact conditions. This one holds detail across the full dynamic range without visible artifacts.
• H.265 Compression (40–60% bitrate reduction): On 24/7 outdoor recording at 2MP 30fps with H.265, you're typically seeing 800–1200 Kbps per camera versus 1800–3000 Kbps on H.264. On a 16-camera system, that's 15–20 TB/year saved on NVR storage — substantial capex reduction over 3–5 years.
• ONVIF Profile M (Metadata): Edge-based motion detection and auto-tracker metadata enable VMS recording policies that trigger only on detection classes (human, vehicle) rather than wind or shadows. False-positive alert load drops measurably, so security staff spend less time reviewing noise.
• 30x Optical Zoom (4.3–129 mm) with 77°–2.6° HFOV: Covers wide-area scanning in wide mode and license-plate/facial identification at tele. A single camera replaces 4–5 fixed-lens alternatives on typical 500m perimeters, dropping total system count and cabling complexity.
• Continuous 360° Pan with 145°/sec Tilt Speed: Non-stop azimuth rotation enables full perimeter sweeps without gaps or reversal delays. Tilt speed supports rapid scene-to-scene repositioning (parking lot to building entry) in 2–3 seconds.
• PoE++ (802.3bt) Single-Cable Powered: Eliminates auxiliary power injectors or dual-feed setups. One RJ-45 cable supplies power, video, and audio — reduces installation labor and failure points.

Deployment Considerations:

• IR illumination range is effective to ~40m in typical outdoor darkness; sites requiring coverage beyond 100m or supplementary ambient lighting should pilot IR range before full deployment. Coastal or dusty environments may reduce effective range 10–15% due to atmospheric particulate.
• PoE++ (802.3bt) is required — legacy 802.3at PoE+ will not reliably power continuous IR operation plus high-speed pan-tilt. Verify switch or injector capabilities before installation; upgrading 10–15 year old PoE infrastructure is common on retrofit projects.
• Auto-tracker tuning requires per-site sensitivity adjustment; aggressive settings in windy environments produce false tracking events on swaying trees or flags. Allocate 1–2 hours for commissioning and testing across typical wind conditions.
• Mounting height and angle affect zoom effectiveness; telephoto identification (face/plate) typically requires <100m distance and <45° depression angle. Document expected zoom range during site survey and align preset positions to actual perimeter geometry.
• Microphone input requires optional analog mic or pre-amplified line source; internal mic option is not available. Budget for external mic wiring if two-way audio is required.
• Housing color is white; request color matching or custom housing finishes during RFQ phase if the mounting surface requires camouflage. Standard white is highly visible and suits campus/industrial sites.

The P2230L-ESR is the right choice for integrators building large outdoor perimeter or campus surveillance systems where zoom coverage, continuous pan-tilt, and PoE++ single-cable simplicity reduce total system cost and labor complexity versus multi-fixed-dome alternatives. For sites with moderate IR range requirements and budgets supporting PoE++ infrastructure, this camera offers mature, proven performance across vendor-neutral (ONVIF) platforms. Explore the Pelco catalog for additional PTZ and fixed-dome options in the Spectra Professional lineup.
