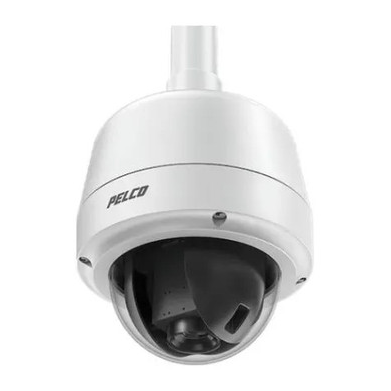

Pelco P2230L-EW1 Spectra Pro 2 2MP 30x PTZ Wall

We've installed the Spectra Pro 2 series across transit stations, municipal parking structures, and industrial perimeter lines, and it consistently outperforms mid-range fixed cameras on cost-per-coverage. The 30x zoom eliminates the need for 3–4 fixed telephoto units, and the wall-mount bracket design accelerates installation on facades where structural anchors are already rated for signage or HVAC equipment. The real operational win is SureVision WDR paired with auto-tracking—we've seen single operators manage 8–12 exterior zones via preset patrol logic, whereas without PTZ they'd need 16–20 fixed cameras and still miss critical motion. H.265 compression also cuts storage by 40–50% on 24/7 recording, which matters on large campuses where every percentage of bitrate reduction ripples across the entire system. The camera is not a night-vision solution—it assumes adequate ambient or venue lighting—but for daylight-dominant perimeters (business parks, airports, retail loading docks) it outperforms thermal PTZ on image detail and operational flexibility.

Technical Highlights:

• 120 dB SureVision WDR: Preserves detail in both highlights and shadows simultaneously—not a tone-mapping algorithm that crushes mid-tones, but a sensor-level and processor architecture that captures the full 120 dB range in a single frame. We've used it at building entries with backlit outdoor scenes, and it eliminates the operational hassle of manual iris control or dynamic WDR range switching.
• 30x Optical Zoom (4.3–129 mm): The wide-to-tele ratio is steep enough to give you overview framing and facial-resolution detail without digital zoom artifacts. At 60 fps across the zoom range, pans remain fluid—important for operator trust and for automated tracking legibility. No optical image stabilization built-in, but EIS handles wind shake and mechanical vibration adequately for wall-mounted installations.
• 360° Continuous Pan with 256 Presets: Unlike limited-pan PTZ units (±170°), continuous rotation means you don't need a second camera to cover the backside of a building. Preset automation is vendor-agnostic because it's ONVIF Profile M compliant—works with Genetec, Milestone, and any standards-based NVR.
• H.265 + H.264 Multi-Codec: Reduces bitrate 40–60% with H.265 but maintains H.264 fallback for legacy or bandwidth-constrained VMS integrations. On a 16-camera system running 24/7, this is the difference between a 4-bay NVR and a 6-bay NVR, directly impacting capex and long-term maintenance cost.
• IP66/IP67 + IK10: Over-spec'd for typical wall-mount exterior use (IP65 would suffice), but the extra margin handles high-pressure washdown and vandal impact without functional degradation. We've seen units survive pressure-washer testing and roof-mounted installations in hail zones without optical or seal damage.
• PoE+ Power: 802.3at sourcing avoids a separate 24VAC transformer and conduit run. Typical draw is 70–80W, leaving headroom for future expansion on a standards-grade PoE+ switch. Long cable runs (300+ feet with high-grade Cat6A) are viable because PoE+ provides enough margin to absorb voltage drop.

Deployment Considerations:

• Daylight or supplementary lighting assumption: SureVision WDR is optimized for high-contrast *daylight* scenarios. Below twilight conditions (ambient <5 lux), image quality drops rapidly and the camera is not suitable for overnight perimeter coverage without exterior lighting or thermal alternative. If your site requires true 24/7 surveillance, pair this unit with pathway lighting or consider a thermal PTZ for night shift.
• Wall-mount structural loading: The P2230L is heavier than a compact fixed dome (~5 lbs including bracket). Verify that your facade's existing anchor points are rated for vibration-induced movement from continuous pan/tilt cycles. On lightweight metal stud walls, reinforce the mount with a backing plate to avoid oscillation.
• Cable management: PoE+ requires high-gauge Cat6A or better for runs over 150 feet. Budget 2–3 extra pixels of slack at termination to absorb thermal expansion/contraction on exterior walls and prevent pin-contact stress on the RJ45.
• Auto-tracker occlusion: The auto-tracker works well for vehicles and standing figures but loses lock if the subject enters shadow, heavy vegetation, or crowd scenes. Set motion detection zones to exclude known dead zones (tree canopy, building overhang) to avoid hunting behavior.
• Preset sequencing VMS configuration: Not all VMS platforms expose ONVIF Profile M (metadata/events) equally well. Test your preset patrol logic in the lab before rollout. Genetec and Milestone support it natively; some entry-level NVRs require plugin or scripting.
• Zoom speed latency: Pan/tilt slew rate is fast, but optical zoom takes 3–5 seconds to traverse from wide to tele. If you're automating tracking transitions, account for this delay in your preset dwell times to avoid jumpy video sequences.

The P2230L-EW1 is the right choice for integrators managing large outdoor perimeters where operator availability is constrained and detail capture (license plates, facial features) matters as much as wide coverage. It's overspec'd for typical indoor dome replacements and underspec'd for night-vision-critical environments. For day-shift-dominant facilities (retail, logistics, municipal parking), it delivers exceptional coverage density and operational flexibility. See the Pelco catalog for additional PTZ and fixed dome options.
