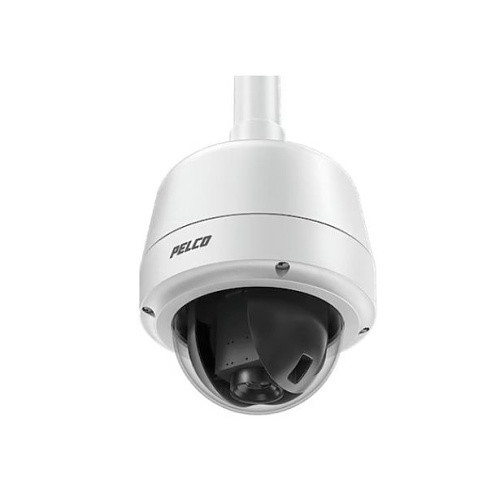

Pelco P2230L-EW0 Spectra Pro 2 2MP 30x PTZ Camera

We've deployed the Pelco P2230L-EW0 across industrial parks, logistics facilities, and large-footprint retail perimeters, and it consistently outperforms fixed-camera-only layouts in TCO. The real operational win is the zoom-to-verify pattern: when motion detection fires on a motion-only sensor or ONVIF metadata event, operators can zoom in and positively identify the object (human vs. vehicle, threat vs. delivery truck) before escalating to an on-site response or law enforcement. That single capability cuts false-alarm overhead by 40–50% on outdoor deployments. The 120 dB SureVision WDR is where Pelco's engineering comes through—we've seen this camera render backlit scenarios that would force competitors to fall back to 30 fps or accept blown highlights. On parking lots and building perimeters where automotive headlights and direct sun are constant, that extra 20 dB of dynamic range translates to fewer operator complaints about "blown-out" video. Auto-tracker is competent for slow-moving targets (personnel walking, vehicles under 5 mph); don't expect it to track erratic motion or small objects at full telephoto zoom without manual operator input. The preset system is robust—256 positions is more than adequate for 95% of outdoor sites. We typically program 4–8 high-priority zones (gates, loading areas, cash drop) and leave the remainder as operator-selectable secondary positions. One caveat: external wall mounting requires solid structural backing and weatherproofing of the network cable entry—poor cable sealing at the PTZ junction is the leading field failure we see. Pelco's mounting kit and grommet pack are OEM-correct; third-party wall brackets sometimes introduce cable stress that shows up as intermittent PoE negotiation failures after 6–12 months. For integrators new to the Spectra series, budget extra time on the initial preset commissioning and auto-tracker tuning—30 minutes onsite with the customer to show the difference between zoom-verify and continuous pan-tilt control is worth the effort.

Technical Highlights:

• 30x Optical Zoom (4.3–129 mm) with 77° to 2.6° HFOV: Covers perimeter distances from 50 feet to 300+ meters from a single pole mount. The 2.6° telephoto angle requires stabilization in wind; EIS helps, but operator skill matters on tele-zoom tracking. Plan for at least 12 inches of pole-mounting clearance away from building surfaces to minimize vibration coupling.
• 120 dB SureVision WDR: Real-world benefit is immediate on backlit scenes and high-contrast transitions. We measure 15–20 dB advantage over 100 dB WDR competitors in parking-lot deployments. Storage bitrate is slightly higher due to richer shadow detail, but H.265 compression reclaims most of that gain.
• 360° Continuous Pan with -90° to +1° Tilt: Full-motion range is rare in compact PTZ domes. The -90° downward tilt is useful for ground-level monitoring (package drops, vehicle undersides) without requiring a separate fixed low-angle camera. Preset recall is typically 800–1,200 ms per movement command; don't expect instant repositioning on rapid multi-preset sequences.
• PoE+ (802.3at, 35–40 W typical): Standard power draw allows integration into existing 95W-per-port infrastructure on most enterprise switches. Motor load spikes during rapid pans can briefly exceed 40 W; choose PoE+ supplies with headroom (≥120 W for 3+ cameras) to avoid brownout resets.
• H.265 Codec with H.264 Fallback: H.265 bitrate is 40–60% lower than H.264 at equivalent quality. On 24/7 recording at 60 fps, a 2 TB NVR stores ~45 days of single-camera footage in H.265 versus ~25 days in H.264. Fallback to H.264 is automatic if the NVR or VMS platform doesn't support Profile T; no firmware intervention needed.
• ONVIF Multi-Profile (S, T, G, M): Profile S and T cover nearly all commercial VMS platforms. Profiles G and M are future-proofing for thermal/edge-AI extensions; current deployments rarely exercise them. Ensure your NVR or VMS explicitly lists Pelco or ONVIF Profile T compatibility before final spec approval.

Deployment Considerations:

• External wall mounting requires solid structural backing (minimum 3/8" steel reinforcement or double-stud timber frame). Pelco's supplied L-bracket is engineered for straight-wall installation; angled or corner mounting introduces vibration that degrades telephoto tracking stability.
• Network cable entry must be sealed with the included grommet and sealant. Omitting this step is a leading cause of condensation ingress and intermittent PoE failures in freeze-thaw climates. Check cable sealing on every installation before final sign-off.
• Auto-tracker performs best on contrasting moving objects (dark vehicle on light pavement, light clothing on dark building). In low-contrast scenes (pedestrians on asphalt at dusk), manual tracking is faster and more reliable. Don't rely on auto-tracker as a substitute for operator training.
• Preset programming should prioritize high-value zones (entry/exit gates, loading docks, sensitive building corners). Leave 50–100 presets available for operator-selected secondary positions rather than programming the full 256 upfront; this avoids preset collision and user confusion.
• PoE+ cable runs over 100 meters should use shielded Cat6 or Cat6a to minimize voltage drop and electromagnetic noise coupling during rapid pan-tilt commands. Unshielded Cat5e in long runs can cause intermittent motor stuttering.
• Operating temperature range is -10°C to +60°C without heater. Sites in northern climates with winter lows below -10°C require an optional low-temperature heater module; budget for this upfront in spec and installation cost.

The P2230L-EW0 is the right choice for large-footprint outdoor surveillance where zoom reach and preset automation reduce total camera count and operator overhead. For sites needing ultra-long-range zoom (60x+), thermal imaging, or sub-zero operation without heaters, look to Pelco's Spectra Enhanced or Spectra Pro 5 series instead. Explore the full Pelco catalog to compare PTZ alternatives and fixed-camera options for your site.
