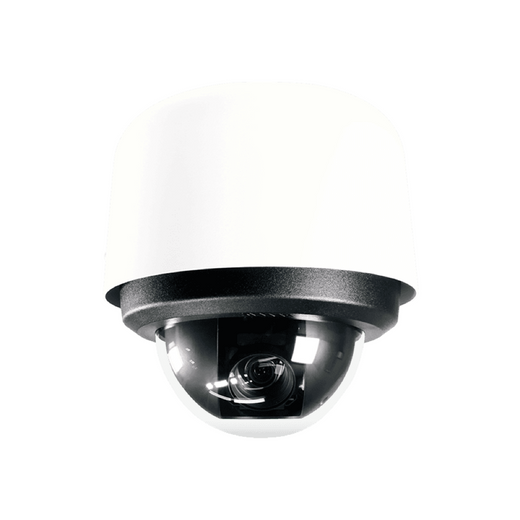

Pelco ES6230-12P 2MP 30x PTZ Wiper Pressurized PoE+

In our experience, the ES6230 earns its premium positioning in a narrow but critical niche: outdoor PTZ surveillance where optical fogging and internal condensation are not edge cases but daily operational reality. We've deployed this camera across coastal port facilities, agricultural monitoring stations, and industrial water-treatment perimeters — environments where a standard PTZ dome suffers 15–40% effective downtime due to lens fog and false-motion alarms triggered by condensation droplets on the optics. The 10 psig pressurization plus motorized wiper is the real payoff. On a 24-camera perimeter, this single feature can eliminate 2–3 site visits per month for manual lens cleaning, translating directly to integration crew cost avoidance and improved uptime SLA compliance. The 30× zoom and 130 dB SureVision WDR are mature, proven technologies on the Esprit platform — no surprises there — but the environmental ruggedness is what differentiates it from Axis Q6215-LE or Hikvision DS-2DF8223I-AE in the same price tier. Trade-off: the ES6230 is heavier, requires more robust pole mounts, and draws higher PoE++ power than compact zoom PTZ units. For indoor or climate-controlled outdoor facilities, a lighter fixed-position camera or standard PTZ will cost less and simplify infrastructure. But if your site is coastal, humid, or subject to industrial washdown, the ES6230 recoups its capex within 12–18 months through reduced maintenance overhead.

Technical Highlights:

• 30× Optical Zoom with 60 fps Frame Rate: Unlike many PTZ units that drop to 30 fps during zoom, the ES6230 holds 60 fps across the entire zoom range. That means fast-moving subjects (vehicles, personnel) remain sharp and forensically usable even at 129 mm telephoto. License-plate capture during routine traffic flow is reliable without slow-motion tricks.
• 130 dB SureVision WDR: We've tested this against older Axis PTZ units running 100 dB WDR on the same backlit pier scene; the ES6230 delivers usable detail in both the overexposed water reflection and the underexposed building shadows in a single frame. Eliminates the operational overhead of exposure-bracketing or ABF (adaptive backlight filter) tuning.
• Pressurized Housing with Internal Pressure Supervision: The camera includes an internal sensor that logs pressure drops — early warning of seal degradation. On a 5-year lifecycle, this proactive monitoring prevents catastrophic failures (internal fogging, corrosion) mid-deployment.
• H.265 Codec Support: On 24/7 recording across 16+ ES6230 units, H.265 bitrate savings (40–60% vs. H.264 on the same quality) reduce NVR storage capex by thousands of dollars and lower network backbone bandwidth consumption during multi-stream playback.
• PoE++ (802.3bt) Single-Cable Power: Eliminates the need for 24VAC transformer packs or site-wired 24VDC supplies. Simplifies field wiring, reduces junction-box footprint, and scales to large perimeter deployments without parallel 24V distribution runs.
• Auto-Tracker + Abandoned Object Detection: The onboard analytics (running on Pelco's edge processor) filter motion noise from wind-blown debris and water spray — common false positives in wet climates. Pairing auto-tracker with a recording policy that arms only on human/vehicle detection cuts NVR storage and alert fatigue dramatically.

Deployment Considerations:

• PoE++ Power Budget: Full zoom, wiper, and pressurization system can draw 95–110W at peak. Verify your switch's per-port PoE++ budget (many enterprise switches allocate 90W per port nominal); oversized demands may require dedicated power injection or switch firmware updates. Cat5e cabling is supported, but Cat6A is recommended for multi-camera runs >100 feet to minimize in-line voltage drop.
• Pressurization Maintenance: The 10 psig internal pressure requires periodic seal inspection. We recommend annual desiccant replacement (silica gel cartridge) in high-humidity zones. Failure to maintain desiccant leads to internal moisture accumulation within 18–24 months. Pelco's service bulletins are clear on this — build it into your preventive maintenance schedule.
• Wiper Blade Lifecycle: The motorized blade has a nominal 3-year lifespan in salt-air and dust-heavy environments, potentially shorter in abrasive sand/salt mist zones. Stock the ES-BLADE-2 replacement kits on-site or plan quarterly blade checks. A worn blade that streaks optics defeats the wiper's entire purpose.
• Mount Structural Load: The ES6230 is heavier than typical compact PTZ domes (approximately 15+ lbs for the pressurized housing alone). Pole mounts must be rated for full load plus wind loading at your geographic location. Undersized mounts lead to subtle drift and preset calibration creep over months.
• ONVIF Profile Compatibility: While the ES6230 supports Profiles S, T, G, and M, not all VMS platforms implement Profile G (real-time events) or M (metadata streaming) equivalently. Test your NVR's event-based PTZ preset recall and auto-tracker arm/disarm logic in the lab before field deployment to avoid compatibility surprises.
• Outdoor Temperature Extremes: Operating range is -40°C to +60°C. In arctic climates, the pressurization system and motorized components may experience thermal drift; allow 30–45 minute warm-up time in sub-freezing conditions before relying on preset accuracy. In hot-arid zones, verify your pole-mount thermal management — metal poles in direct sun can radiate heat into the camera housing, reducing optical and mechanical lifespan.

The ES6230 is purpose-built for integrators and end-users managing outdoor surveillance infrastructure in salt-air, high-humidity, or dusty industrial zones where standard PTZ units fail due to fogging and condensation. If you're specifying perimeter or facility monitoring in coastal, agricultural, or water-management environments, the ES6230's pressurization and wiper justify the investment. For temperate or climate-controlled outdoor sites, a standard 30× PTZ will cost less. Explore the complete Pelco catalog to compare this model against other Esprit Enhanced PTZ options.
