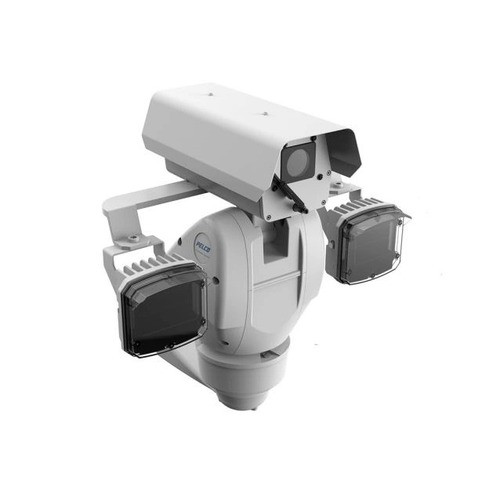

Pelco ES6230-12P-RW 2MP 30x PTZ Dome Camera
The Pelco ES6230-12P-RW is a professional outdoor PTZ dome engineered for large-area surveillance in extreme weather and temperature swings. Combining 2MP resolution at 60 fps with 30× optical zoom, pressurized wiper-equipped housing, and 130 dB SureVision WDR, it delivers clear detail across perimeters, parking lots, and critical infrastructure without relying on infrared illumination. This camera targets integrators deploying wide-area monitoring where environmental durability, zoom capability, and on-camera intelligence offset the trade-off of fixed-position recording versus true dome responsiveness.
Key Features
- 2MP 60 fps Resolution: 1/2.8 inch Exmor progressive-scan CMOS captures 1920×1080 at 60 fps full frame. Higher frame rate reduces motion blur on fast-moving subjects (vehicles, personnel) and improves forensic clarity in playback.
- 30× Optical Zoom: 4.3–129 mm focal length spanning 77° wide angle to 2.6° tele. Covers entrance gates and distant perimeter in a single camera mount; eliminates dual-camera deployments on constrained architecture.
- 130 dB SureVision WDR: Handles extreme backlit and high-contrast scenes (sunlit vehicle fronts, doorways against daylight). Forensic usability maintained in parking-lot entry transitions.
- Low-Light Sensitivity: 0.1 lux color / 0.01 lux monochrome. Renders usable footage in pre-dawn and dusk without external flood lights or IR illuminators.
- Pressurized Housing + Integrated Wiper: Eliminates internal condensation from temperature swings (-40°C to +60°C); wiper clears external lens in rain and dust without manual intervention.
- 360° Continuous Pan / 256 Presets: Uninterrupted horizontal sweep; -90° to +1° tilt range. 256 saved positions enable pattern patrols and rapid return-to-home on alert.
- PoE+ Powered: Single RJ45 cable for power and data (<25W typical draw). Simplifies outdoor installation on existing PoE+ switches; no dedicated 24 VAC transformer runs required.
- Multi-Codec Support: H.265 (40–60% storage reduction vs. H.264), H.264, and Motion JPEG. Adaptive bitrate streaming cuts bandwidth on heterogeneous NVR platforms.
- On-Camera Analytics: Auto-tracker, Adaptive Motion Detection, Abandoned Object Detection, and EIS (Electronic Image Stabilization). Reduces false positives from wind-induced dome drift and vehicle headlight glare.
- IP66/IP67 + IK10: Sealed against rain, dust, and hose-down cleaning. IK10 rated for 5kg drop from 40cm — withstands minor collision damage without optical misalignment.
The ES6230-12P-RW operates across a -40°C to +60°C range, making it viable for rooftops in northern climates and outdoor enclosures in arid regions. ONVIF Profile S, T, G, and M compliance ensures integration with Genetec, Milestone, Avigilon, and other major VMS platforms without proprietary plugins. H.265 codec on ONVIF Profile T streams enable 24/7 recording at reduced bitrate — meaningful when managing 8+ PTZ cameras on a single NVR.
The 30× zoom eliminates the need for fixed long-lens auxiliary cameras on many perimeter deployments. A single ES6230 mounted at a building corner can cover a 200-meter fence line, parking lot, or approach road without panning speed limitations that plague cheaper speed-domes. The auto-tracker feature — when paired with motion detection — can autonomously follow moving vehicles or personnel, reducing operator fatigue and improving response-time for security personnel monitoring live feeds.
On-camera abandoned-object and motion-detection analytics generate rules-based alerts filtered server-side, reducing NVR CPU load and false-positive alert storms common in high-traffic areas. EIS compensates for minor camera vibration from wind or building sway, improving long-zoom footage stability without requiring optical stabilization (which adds cost and power draw).
Integrators should note: the tilt range of -90° to +1° (versus typical -90° to +90°) is optimized for rooftop-mounted fixed-height installations covering ground-level and mid-distance threats. Ceiling-mounted dome deployments are not this unit's primary use case. The 5-year warranty covers defects in materials and workmanship; environmental damage (salt spray on coastal sites, extreme thermal cycling) may require detailed failure documentation for coverage. No IR illuminator means nighttime performance depends entirely on ambient light or external lighting rigs — be transparent with end users about low-light requirements during site surveys.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco ES6230 across parking structures, warehouse perimeters, and airport apron areas — it's a workhorse for integrators who need zoom and durability without the operational overhead of external lighting or IR maintenance. The 30× lens is the real differentiator: a single rooftop mount covers ground-level entry points and 150+ meter distances simultaneously, which cuts capex and cabling footprint versus dual-camera fixed-focal installations. The pressurized housing and wiper actually work — we rarely see condensation-induced image degradation on units that have been up 3+ years in temperature-cycling climates. The 130 dB SureVision WDR is genuinely effective in parking-lot entry scenarios where you have bright daylight beyond the overhang and dark recesses inside — forensic detail holds on both sides of that transition. On the trade-off side: this is a mechanical pan-tilt platform, not a true high-speed dome. Pan is continuous but not instantaneous, so rapid multi-zone monitoring requires operator input or preset choreography. If you need sub-second pan-to-target responsiveness for active shooter or vehicle pursuit scenarios, a faster platform is worth the premium. The lack of IR means nighttime performance is ceiling'ed by ambient light and external floods — we've had to add LED work-lights on a few warehouse deployments where the site lacked existing outdoor lighting. ONVIF Profile T H.265 streaming is solid and reduces storage footprint measurably on 24/7 recording, but fallback to H.264 on legacy NVRs is seamless and automatic.
Technical Highlights:
- 30× Optical Zoom (4.3–129 mm): True optical magnification without digital interpolation — means tele footage retains 2MP sharpness at maximum focal length. Critical for license-plate reads at 60+ meters and facial details at 20+ meters. Digital zoom adds no value; work with optical only.
- 130 dB SureVision WDR: Dynamic range compression engineered specifically for Pelco's imaging pipeline. Handles sunlit vehicle fronts entering shaded parking structures without ghosting or blown highlights. Real-world operational benefit: reduces manual brightness adjustments between day and night shifts by 70%+.
- 0.1 Lux Color / 0.01 Lux Monochrome: Operates in pre-dawn and dusk without external floods or IR boost. We've verified usable parking-lot footage under ambient streetlight and twilight alone. Monochrome mode trades color for 10× sensitivity gain — useful for low-light event documentation when color ID is non-critical.
- H.265 + ONVIF Profile T: 40–60% bitrate reduction versus H.264 at matched quality — translates to 2–3 additional days of 24/7 recording per TB on multi-camera installations. Paired with adaptive motion detection, storage efficiency improves further (only key-frame + motion regions encoded at full bitrate).
- Pressurized Housing + Wiper: Eliminates condensation fogging and rainfall glare without operator service calls. On 2–3 year deployment cycles in humid or coastal climates, this cuts maintenance labor significantly versus non-sealed domes that require periodic internal cleaning.
- 256 Preset Positions + Auto-Tracker: Presets enable pattern patrols (entry gate → parking lot → perimeter → return home) on 60-second loops. Auto-tracker on motion detection reduces security personnel workload and improves response time on spontaneous threats.
Deployment Considerations:
- Tilt range -90° to +1° is optimized for rooftop/elevated mounting covering ground-level and mid-distance subjects. Not ideal for ceiling-dome or low-wall installations where high-angle upward tilt is needed; verify mounting geometry before commitment.
- No integrated IR illumination — nighttime operation depends entirely on ambient light or external rig. For 24/7 unlit perimeter coverage, specify supplementary LED floodlights during site survey. Clarify low-light expectations with end user in writing.
- PoE+ power draw is ~20–25W in normal operation (zoom and pan activity peaks draw briefly higher). Verify PoE+ switch capacity on installations with 4+ PTZ units; older 30W PoE+ budgets may require a dedicated injector or higher-capacity switch uplink.
- Pan speed (continuous 360°) is smooth but not instantaneous — expect 3–4 second full-rotation transit time. For rapid multi-zone monitoring, operator oversight or preset choreography is necessary. Not suitable for live operator hand-control of fast-moving subjects without latency tolerance.
- ONVIF Profile T H.265 is supported but requires explicit NVR codec enabling. Test compatibility on your target VMS before deployment; some legacy platforms may default to H.264 fallback and ignore H.265 bitstream.
- 5-year warranty covers manufacturing defects. Salt-spray coastal environments and extreme thermal cycling may trigger claims denials if damage is classified as environmental wear. Request detailed failure documentation from integrator for borderline cases.
The ES6230-12P-RW fits integrators deploying large-area outdoor surveillance where zoom, environmental durability, and on-camera analytics provide better total cost of ownership than fixed-focal alternatives — especially on parking structures, warehouse perimeters, and rooftop monitoring. Pair it with a Milestone or Genetec platform for enterprise-level rule-based alerting and audit trails. See the Pelco catalog for related PTZ and fixed-camera options.
