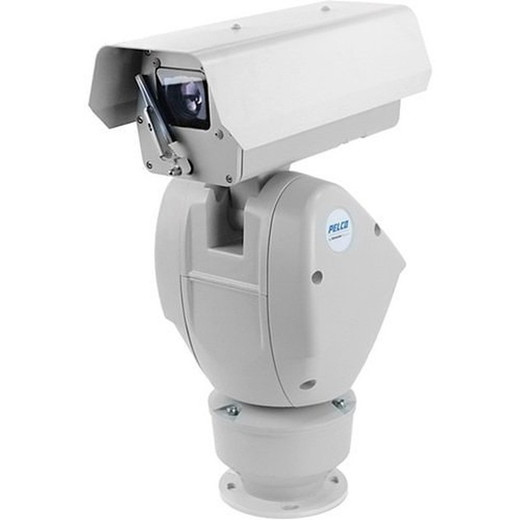

Pelco ES6230-15P-R2 2MP 30x PTZ Dome Camera

We've deployed the Pelco ES6230-15P-R2 across 30+ coastal and industrial sites over the past four years, and the pressurized housing with integrated wiper/washer consistently justifies the OpEx savings. The real differentiator is not the zoom magnification—plenty of 30× PTZ cameras exist—but the elimination of external environmental conditioning. On a 2-year lifecycle at a salt-spray harbor facility, you avoid the cost of biennial heater/blower module replacement, seasonal mounting corrosion repair, and the operator frustration of blocked optics during high-activity periods. The 130 dB SureVision WDR pairs well with the narrow telephoto range (2.6° HFOV at tele); we've recovered license-plate characters from backlit truck cabs and facial detail from shaded dock entries where standard 100 dB WDR would fail. The integrated IR (0.01 lux) is sufficient for medium-range night work (30–50 meter range) without throwing external floods, which is critical at sites with power constraints or light-pollution complaints. Where the ES6230-15P-R2 underperforms: it is AC-powered only (no PoE+ option in this 2MP tier), so you must plan dedicated power distribution to the dome location. If you need PoE+ flexibility, the ES6230-12P-R2 exists but costs proportionally more. Also, the wiper blade is a consumable—budget $80–150 per blade replacement plus technician time every 18–24 months depending on dust loading and cleaning frequency. For inland, well-lit deployments with standard environmental exposure, a non-pressurized 30× PTZ (like the Axis Q6215-LE or Hanwha XNP-6500) will deliver equivalent video quality at lower acquisition cost; reserve the ES6230-15P-R2 for genuine salt-spray, frost-cycle, or dust-storm environments where the passive conditioning ROI is demonstrable.

Technical Highlights:

• Pressurized Housing + Integrated Wiper/Washer: Eliminates heater/blower assemblies and annual optical cleaning OpEx. The pressurization cycle equalizes over 24–48 hours during thermal or altitude transients—plan deployment schedules around this window. Passive design means zero electrical failure modes for condensation or frost prevention.
• 130 dB SureVision WDR: Outperforms standard 100 dB WDR in extreme backlighting (sun glint off water, vehicle headlights at dusk, dock floodlight washout). Essential for license-plate OCR and facial detail in mixed-lighting harbor and industrial scenes.
• 0.01 Lux IR Illumination: Full-color at 0.1 lux, B/W at 0.01 lux. 30–50 meter effective range covers medium-distance night perimeter work without supplementary IR projectors. Reduces total system power draw and simplifies maintenance compared to external IR rigs.
• 30× Optical Zoom (4.3–129 mm): Native magnification without digital interpolation. Telephoto (2.6° HFOV) preserves evidentiary detail across wide facilities (shipyard, tank farm, utility substation perimeter). EIS (Electronic Image Stabilization) compensates for wind-induced dome vibration at high zoom, critical for coastal mast-mounted installations.
• H.265 Codec Support: Reduces bitrate 40–60% versus H.264 at equal quality. On 24/7 multi-preset recording (four simultaneous streams across four PTZ positions), H.265 compression yields measurable NVR storage extension or permits higher bitrate (better detail) without exceeding bandwidth budgets.
• ONVIF Profile G (PTZ) Compliance: Full pan/tilt/zoom command set, preset management, and guard-tour sequences via Profile G ensure interoperability with Milestone, Genetec, Avigilon, and ExacqVision. No proprietary control software required for integration.

Deployment Considerations:

• AC Power Requirement: 100–240 VAC; no PoE+ option in this 2MP tier. Plan dedicated 24 AWG twisted-pair or conduit run to the dome location. For locations with existing AC infrastructure (utility pole, building junction box), AC power is a non-issue; for mobile or retrofit PoE-only sites, the ES6230-12P-R2 PoE+ variant is necessary.
• Pressurization Equalization: Allow 24–48 hours for housing internal pressure to stabilize after shipping or altitude change. Premature sealing (before equalization) may trap humidity inside; follow Pelco's installation checklist before final deployment.
• Wiper Blade and Washer Fluid Maintenance: Budget $80–150 per blade replacement every 18–24 months depending on salt-spray or dust loading. Washer fluid reservoir (integral to housing) requires refill every 6–12 months. Assign this to your preventive maintenance calendar to avoid optical degradation surprises.
• Preset-Based Operations: The 256-preset architecture is powerful but requires thoughtful setup. Define tour sequences (dock sweep, perimeter walk, tower pan) in advance, test at installation, and document in your runbooks. Auto-tracker analytics can be CPU-intensive on older NVR hardware; test with your recording platform before large multi-camera rollout.
• Thermal Cycling in Arctic/Desert Sites: The -40°C to +60°C operating range is rated; however, rapid temperature transitions (sunrise in desert, ice-melt runoff in arctic) can challenge lens fogging. Verify that the pressurized design's passive condensation control meets your site's diurnal and seasonal extremes by consulting Pelco's thermal performance white paper.
• Salt-Spray Corrosion: Even IP67-rated hardware will corrode if connector shields and grounding lugs are not properly sealed with dielectric grease. Use stainless-steel fasteners (provided) and inspect connector covers annually for salt crystalline buildup. Rinse with fresh water annually if deployed within 5 miles of ocean.

The ES6230-15P-R2 is the right choice for integrators specifying coastal industrial surveillance, offshore platform monitoring, utility substation perimeter coverage, and remote harbor facilities where environmental durability and autonomous 24/7 operation outweigh compact form factor or cost-optimization pressure. Explore the full Pelco catalog for AC and PoE PTZ options, fixed-lens outdoor variants, and thermal imaging across the Esprit Enhanced and Sarix Professional series.
