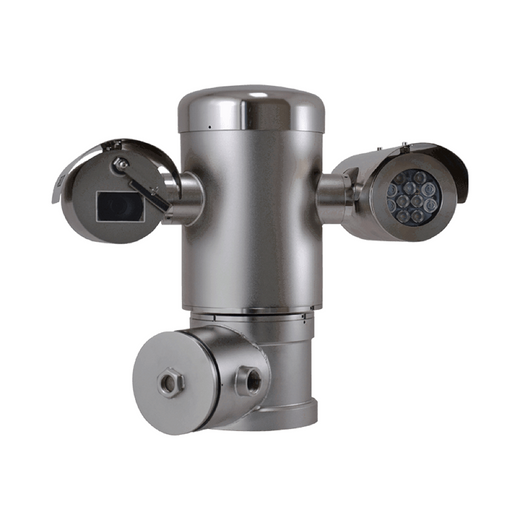

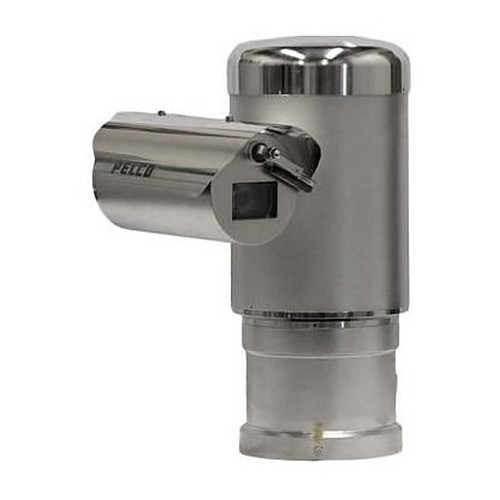

Pelco EXP2230-65 2MP 30x PTZ Explosion-Proof Camera

Pelco EXP2230-65 2MP 30x PTZ Explosion-Proof Camera

The Pelco EXP2230-65 is a professional 2MP pan-tilt-zoom (PTZ) camera engineered for hazardous and corrosive industrial environments where explosive atmospheres and extreme conditions are the norm, not the exception. Housed entirely in 316L stainless steel and certified to ATEX Zone 1/21, IECEx Zone 1/21, and UL/cUL Class I Division 1 standards, this camera delivers dependable video acquisition, remote control, and analytics in petrochemical refineries, offshore platforms, chemical processing plants, and coastal marine installations where corrosion and flammable gas hazards eliminate conventional surveillance options.

Overview

The EXP2230-65 combines continuous 360° pan capability with −90° to +1° tilt range and 30× optical zoom (4.3–129 mm lens, 77° to 2.6° field of view) to cover expansive hazard zones from a single fixed mounting point. At 2MP resolution (1920 × 1080), it captures 60 fps video for smooth motion tracking and event replay. The 1/2.8" CMOS sensor achieves 0.1 lux in color and 0.035 lux in monochrome, meaning visibility persists in low-light and near-infrared-only conditions without sacrificing detail—critical when documenting personnel movement or equipment anomalies in dimly lit process areas. Built-in heater and motorized wiper maintain optical clarity in coastal salt spray and offshore fog, eliminating periodic manual cleaning cycles. The 130 dB SureVision wide dynamic range handles dramatic backlight scenarios—bright sky behind a tank, harsh sodium-vapor yard lighting—so foreground targets remain legible without washing out.

Key Features

• 360° continuous pan with 256 programmable presets: Eliminates mechanical stop wear and reduces installation complexity. Presets let operators jump to critical scan points (equipment corner, personnel gate, process area) with single-click or automated schedule logic, reducing operator fatigue and reaction time on large facilities.
• 30× optical zoom with 4.3–129 mm lens: Zooming from 77° wide field of view down to 2.6° magnification lets you identify equipment failures, personnel protective gear compliance, and spill containment status from the control room without deploying additional cameras or mounting closer to hazard zones.
• H.265 and H.264 dual-codec encoding: H.265 cuts storage footprint roughly in half compared to H.264 on equivalent bitrate, lowering NVR capacity and archive costs. H.264 fallback preserves compatibility with legacy VMS and recorder hardware running older firmware.
• 316L stainless steel construction: Resists salt spray (ASTM B117 rating), hydrogen sulfide, chlorine vapors, and common chemical process byproducts. Eliminates oxide degradation and field replacement cycles typical of painted steel or aluminum housings in corrosive zones.
• IP66/IP67/IP68/IP69 ingress protection: Rain, washdown spray, and temporary submersion do not compromise sealing. Gaskets and potting are rated for continuous exposure to humidity and splash in offshore and spray-intensive refineries.
• ONVIF Profile S, T, G, M compliance: Integrates with any ONVIF-compatible VMS (Milestone XProtect, Genetec, etc.) and network video recorders without proprietary drivers, reducing lock-in risk and simplifying future platform migration.
• T6 temperature class rating and −40°C to +60°C operating range: Safe for use in Zone 1 and Zone 21 atmospheres. The wide temperature span accommodates outdoor chill (arctic platforms) and heated enclosures or process proximity (distillation towers, heat exchangers).
• 24 VAC powered with low quiescent draw: Standard industrial power distribution. No high-voltage or specialized wiring required; integrates into existing facility AC loops.
• On-camera motion detection and threat analytics: Reduces false alarms by filtering wind-blown debris or vehicles passing beyond the monitored zone. Analysts receive alerts only for personnel in restricted areas or unscheduled equipment movement.
• 5-year warranty: Covers parts and labor, reflecting manufacturer confidence in seal durability and component longevity in extreme environments.

Integration & Compatibility

The EXP2230-65 adheres to ONVIF Profile S, T, G, and M standards, ensuring compatibility with industry-standard VMS platforms and NVRs from Milestone, Genetec, Hanwha, Axis, and others. Multi-codec support (H.265, H.264, Motion JPEG) allows bandwidth-constrained installations to dial in bitrate and frame rate on a per-zone basis. Dual-stream capability lets the recorder store high-resolution 60 fps for forensics while simultaneously streaming lower-bitrate 15 fps to a remote site or mobile app for live monitoring, optimizing WAN usage on distributed oil and gas operations.

Deployment Checklist

When deploying the EXP2230-65 in a Zone 1 or Zone 21 hazard area, verify that the mounting enclosure and all cabling entries are also ATEX-certified (do not mix EXP-rated cameras with standard junction boxes or conduit). Confirm PTZ control wiring (pan-tilt commands, preset recall) is routed through a certified control panel or interface module. Test optical clarity before and after installation to establish a baseline for wiper and heater maintenance schedules. Coordinate final acceptance with your facility's ATEX compliance auditor to document certification chain of custody.

When to Choose a Different Model

If your hazard area does not require explosion-proof certification (standard industrial outdoor or indoor environments), consider a non-hazardous PTZ variant within the Pelco PTZ camera line—they will cost less and offer the same optical performance. If your zone is classified ATEX Zone 2 (explosive atmosphere unlikely under normal operation), lower-cost Zone 2–rated alternatives may suffice; consult the zone definition in your facility's risk assessment. If you need 5MP or 4K resolution in an equivalent form factor, contact the manufacturer to confirm current availability of higher-megapixel ATEX variants in the ExSite Enhanced series.

Frequently Asked Questions

Q: Is the Pelco EXP2230-65 certified for ATEX Zone 1?

A: Yes. The EXP2230-65 is certified to ATEX Zone 1/21 and IECEx Zone 1/21 standards, as well as UL/cUL Class I Division 1 (North America equivalent). It is rated for explosive gas atmospheres under normal operation.

Q: What is the minimum light level at which the EXP2230-65 delivers usable monochrome video?

A: The camera achieves 0.035 lux in monochrome mode. In color mode, it requires approximately 0.1 lux. Below these thresholds, video becomes unusable without external infrared illumination or ambient light enhancement.

Q: Can I use the EXP2230-65 in a coastal or offshore environment?

A: Yes. The 316L stainless steel housing and built-in heater and wiper are specifically designed for salt spray, humidity, and washdown exposure typical of offshore platforms and marine installations. Ensure PTZ control circuitry is also potted or sealed to equivalent standards.

Q: Does the EXP2230-65 support ONVIF integration?

A: Yes. The camera is ONVIF Profile S, T, G, and M compliant, enabling integration with any ONVIF-compatible VMS or NVR without proprietary plugins or licensing.

Q: What is the power consumption of the EXP2230-65?

A: The camera is powered by 24 VAC. Exact wattage depends on PTZ motor load and wiper/heater operation; refer to the manufacturer datasheet for peak and steady-state specifications.

Q: How many presets can I program on the EXP2230-65?

A: The camera supports 256 programmable presets, allowing detailed scanning routines across large hazard zones without manual pan and tilt adjustment during scheduled tours or alarm response.

James Everett

I've deployed dozens of PTZ cameras across industrial sites, and the Pelco EXP2230-65 stands out specifically because it does not force you into a false choice between optical performance and regulatory compliance. The 30× zoom—delivering a 2.6° tele field of view—means you can position this camera back from a hazard zone boundary and still resolve personnel or equipment detail. That matters when your facility safety officer restricts camera placement near process areas. The 0.035 lux monochrome sensitivity is the real win here: most industrial sites have some ambient lighting, even in night shift operations, and monochrome mode leans into near-zero-light scenarios without the pixelated noise you get from aggressive digital gain on color sensors.

Technical Highlights:

• 316L stainless steel + T6 gas classification: You're not paying for cosmetic durability. Stainless resists H₂S and chlorine atmospheres that would corrode painted aluminum in weeks. T6 rating means the camera housing itself will not ignite or conduct explosive flame if flammable gas briefly contacts the surface—a regulatory requirement, not a luxury.
• 130 dB SureVision wide dynamic range: Refineries and offshore platforms run 24/7 sodium-vapor yard lights and variable cloud cover. The WDR compresses a 130 dB luminance range (30,000:1 contrast ratio) into a 8-bit video signal, so a shadowed equipment corner and a bright sky in the same frame remain separately legible. Without it, you either expose for sky and lose foreground, or expose for ground and blow out sky.
• H.265 codec option with dual-stream capability: On a 50-camera offshore platform recording 24/7, H.265 halves your bitrate without visible quality loss. Simultaneously, you can stream lower-bitrate H.264 to a satellite uplink for remote ops centers. That's not marketing; that's engineering that directly reduces infrastructure cost.
• 360° endless pan with 256 presets: No mechanical stops means no wear, no jam risk, and no limit to how far left or right the camera can turn. Presets let you encode 256 distinct scan positions for automated tours—refineries use this extensively to monitor process flows and personnel perimeter checks without human operator attention every 30 seconds.

Deployment Considerations:

• ATEX certification is only as good as the entire chain: your mounting enclosure, conduit runs, and PTZ control relay must also carry zone-appropriate certification. A non-certified junction box or power conduit anywhere in the system defeats the entire certification. Verify your integrator understands this before installation.
• The 24 VAC power requirement is standard industrial, but in remote offshore locations or plants with aging distribution, confirm your facility can supply stable 24V to camera locations. Brownout or surge on that line will reset the PTZ controller and interrupt presets.
• The built-in wiper and heater are essential for survival on salt-spray platforms, but they add moving parts. Include them in your preventive maintenance schedule—mineral deposits from washdown water can jam the wiper blade assembly if neglected.

Deploy the EXP2230-65 when your hazard zone demands certified ATEX surveillance and your operational footprint is large enough to justify PTZ zoom over fixed multi-camera arrays. Refineries, petrochemical storage, and offshore platforms are the home field for this camera. If your hazard area is small or your facility does not require Zone 1 certification, you are overspending.
