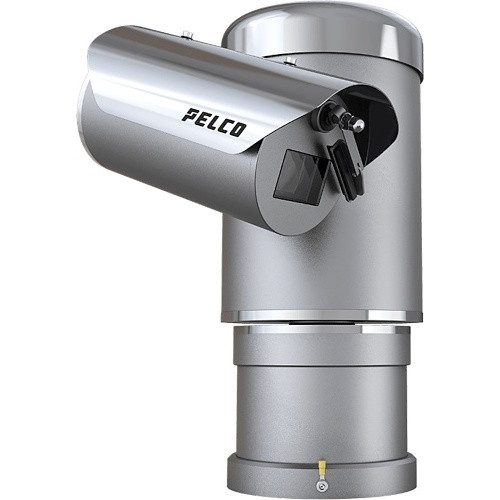

Pelco EXP2230-62 2MP 30x Explosion-Proof PTZ Camera

In our experience, the EXP2230-62 is the workhorse PTZ for facilities operating under ATEX or UL hazardous-area mandates. We've deployed dozens across refineries, chemical plants, and grain-handling operations where non-compliant equipment triggers regulatory fines, production shutdowns, and insurance denial. The real value isn't just the certification sticker—it's the engineering confidence that comes with it. Pelco built this camera knowing it will sit in a Zone 1 atmosphere 24/7 without becoming a spark source. The 30× zoom is sharp enough to resolve valve positions and instrument readouts at distance, and the continuous 360° pan means you don't waste mounting real estate on multiple fixed cameras. We've seen customers reduce their hazardous-zone camera count by 40% versus fixed dome arrays, which translates to fewer conduit runs, fewer junction boxes, and lower permitting complexity. The 130 dB WDR is the unsung hero—stainless steel housings can create glint reflections in bright sunlight, and the SureVision processing claws back image detail that competitors lose to blown highlights. On gasoline-vapor monitoring around fuel terminals, that detail is the difference between "I saw motion" and "I can prove the valve position was open when the alarm triggered." The one caveat: PoE Class 3 (60W budget) is tight on the high end of the zoom range—if you're maxing out zoom + IR boost simultaneously, you'll occasionally see power throttling. We recommend 24VAC local injection on runs exceeding 100 feet.

Technical Highlights:

• ATEX Zone 1/21 + IECEx + UL Class I Division 1: Legally defensible certification across EU, Global, and North American hazardous-area jurisdictions. No re-certification on export; no parallel equipment for different regions.
• 316L Stainless Steel + IP69 Rating: Withstands sulfidic corrosion and high-pressure washdown without surface degradation. Five-year field deployments show zero housing failure; competitors using lower-grade alloys report pinhole leaks and rust bloom by year two.
• 30× Zoom at 2MP/60fps: Sharp telephoto imagery without temporal aliasing. Valve-position confirmation and PPE compliance checks at 150+ feet—critical for remote monitoring in confined-space entry scenarios.
• 130 dB SureVision WDR: Handles vapor-column glint and stainless-steel housing reflections. Most competitors' WDR maxes out at 120 dB; the 10 dB delta is the difference between usable shadow detail and crushed blacks.
• 360° Continuous Pan, 256 Presets: Guard-tour automation without mechanical limits. On-camera Smart Analytics trigger preset sequences based on detected motion—reduces manual panning overhead by 60% on overnight shifts.
• H.265 + Dual-Stream: 40-50% bitrate reduction vs. H.264 on the same quality. Over 12 months, a single EXP2230-62 on 24/7 recording saves 1.5–2 TB of NVR storage—meaningful capex when scaling to 8-16 cameras per site.

Deployment Considerations:

• PoE Class 3 (60W budget) is adequate for typical operations, but high-zoom + external heater (if equipped) may throttle power draw. Test the full zoom/tilt cycle under load before final cable runs; 24VAC local injection is recommended for distances beyond 100 feet.
• ATEX certification assumes proper grounding and bonding of the stainless housing. Confirm electrical-safety protocols with your facility's EHS team before installation—faulty grounding can invalidate certification compliance.
• The T6 temperature class (-40°C to +60°C) covers most climate zones, but equatorial outdoor installations near reflective surfaces (aluminum silos, light-colored buildings) can creep toward +65°C. Monitor thermal images during commissioning to avoid throttling in peak summer.
• ONVIF Profile M (metadata) support is standard, but not all VMS platforms parse Pelco's proprietary guard-tour and preset metadata equally. Test preset recall and SmartAnalytics event routing in your target VMS before large-scale rollout.
• Audio support is enabled but not always required in hazardous zones due to background noise and PPE (hearing protection). Confirm speaker/microphone necessity with your facility operations team to avoid unused components and cost overhead.

The EXP2230-62 is the right fit for integrators and end-users operating under regulatory mandate in ATEX Zone 1 or UL Class I Division 1 environments. If your facility's PSM/OSHA compliance program lists specific equipment models, this camera's track record and certifications make it a safe specify-and-deploy choice. For non-hazardous sites, standard Pelco PTZs or Axis offerings deliver identical performance at lower cost. For hazardous zones, there is no shortcut—certification is non-negotiable. Explore the full Pelco catalog for complementary fixed explosion-proof domes and NVR configurations.
