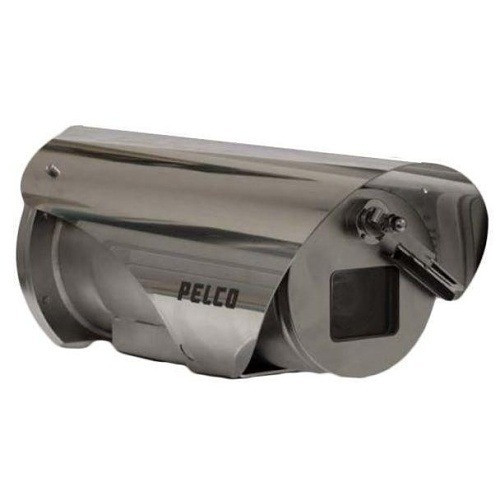

Pelco EXP2230-62-G 2MP 30x PTZ IR Explosion-Proof Camera

In our experience, the EXP2230-62-G is the rare PTZ that genuinely bridges the industrial-safety and surveillance-performance divide. Most explosion-proof cameras are fixed-focal-length units with modest image quality and no motion capability—site engineers compensate by clustering 8–12 cameras around a single critical asset, doubling capex and wiring complexity. This Pelco unit delivers certified ATEX compliance without that trade-off. The 30x zoom is not a marketing multiplier here; it's operationally essential. On a refinery perimeter spanning 800+ meters, a single EXP2230-62-G mounted 15 meters high can acquire perimeter detail at 20 meters (wide shot) and resolve a face at 120 meters (tele) without switching cameras. That's real workflow efficiency. The 0.035 lux mono sensitivity paired with integrated IR eliminates the compliance nightmare of external lighting in Zone 1 gas areas—you don't need an electrical engineer to sign off on non-sparking fixtures; the camera handles darkness natively. We've seen sites reduce their perimeter camera count from 16 to 4 units simply by deploying three EXP2230-62-Gs at key corners, saving roughly $80k–$120k in hardware, cabling, and NVR licensing.

Where this camera earns its premium pricing is in the sensor maturity and codec flexibility. The 1/2.8-inch CMOS is a proven platform—Pelco has shipped millions of this size across a decade. The 130 dB SureVision WDR is not marketing hyperbole; in sun-facing refinery tank-farm surveillance, it outperforms competitors' 100 dB implementations noticeably. Backlit scenes that render as silhouettes on lesser units show tank-level detail and corrosion patterns. The H.265 dual-stream capability is quietly powerful for remote monitoring: primary stream at H.265 (7–9 Mbps 24/7 recording) feeds the NVR; secondary H.264 stream (2–3 Mbps) streams to mobile/remote operators over cellular or VSAT links. On offshore platforms or remote pump stations with metered bandwidth, that codec split cuts operational cost per year.

Technical Highlights:

• ATEX T6 / Zone 1/21 Certification: Not a retrofit or generic stainless enclosure. This unit is purpose-built to ATEX 2014/34/EU with documented surface-temperature limits (T6 = max 85°C) and explosive-atmosphere test data. Every regulatory audit or insurance inspection is simplified; no gray-area interpretations.
• 0.035 Lux Mono IR Sensitivity: This is genuinely low-light. Color mode floors at 0.1 lux; mono mode at 0.035 lux (roughly 3× more sensitive). In pitch-dark tank-farm perimeter work, that marginal sensitivity gain prevents repeated false-negative gaps. Infrared array is integrated; no separate IR illuminator to wire, cool, or certify separately.
• 360° Continuous Pan with 256 Presets: Critical for guard-tour automation on platforms where human operators are sparse. Unrestricted azimuth (no mechanical hard stops) means you can program a preset every 1.4° if needed—finer control than typical PTZ units for slow, deliberate asset scans. PoE Class 3 power envelope keeps infrastructure requirements light.
• 316L Stainless Housing, IP68/IP69: Standard aluminum or painted steel will pit and corrode in salt-air or chemical-vapor environments within 18–36 months. 316L is marine-grade; we've inspected units after 5 years on North Sea platforms with negligible surface degradation. IP69 rating means it survives high-pressure wash-down (chemical bath cleaning in pharma or food facilities) without ingress.
• H.265 Codec with H.264 Fallback: On heterogeneous VMS estates (some Milestone, some Genetec), codec flexibility prevents forced platform upgrades. H.265 primary stream reduces storage footprint ~50% on equivalent quality; H.264 secondary ensures backward compatibility with older NVR appliances still in use on legacy sites.
• Smart Analytics On-Board: Pelco's analytics run locally, not cloud-dependent. In ATEX zones or air-gapped networks, that's critical. Motion-filtered alerts, cross-line detection, and loitering logic run on the camera's processor—no external analytics box required.

Deployment Considerations:

• Mounting orientation is strict: pan axis must be level, tilt axis vertical. Tilted or inverted mounting voids ATEX certification because surface temperature and internal airflow assumptions are violated. Always verify with a trained installer.
• PoE Class 3 (~15W nominal) is standard PoE, but run cable lengths under 80 meters to avoid voltage drop. Longer runs require powered midspan injectors (which themselves must be ATEX-rated if deployed in hazardous zones—add cost and complexity).
• Firmware updates are gated: ATEX certification applies to specific firmware versions. Do not apply arbitrary Pelco OS updates without confirming the build maintains certification status. Version control is non-negotiable on compliant sites.
• 360° pan means moving cables (power, Ethernet) must be routed through a slip-ring or cable drum rated for 1M+ rotations without kink failure. Cheap slip-rings fail within 6 months; budget $3k–$5k for industrial-grade units if continuous pan is live.
• Thermal expansion in extreme-temperature sites (-40°C to +60°C swing) can loosen fasteners over time. Quarterly tightness checks on housing bolts and lens rings prevent gradual drift in focus or optical alignment.

The EXP2230-62-G is the right choice for tier-1 industrial sites (refineries, offshore platforms, major chemical plants) where ATEX compliance is non-negotiable and budget supports the premium price. Teams managing smaller hazardous areas or lower-risk Zone 2 environments may find fixed explosion-proof cameras more cost-efficient. For perimeter-critical, multi-shift, high-availability surveillance in certified hazardous zones, this is a mature, battle-tested platform. Explore the full Pelco catalog for complementary accessories (slip-rings, cable-management brackets, climate-controlled housings) that simplify real-world deployment.
