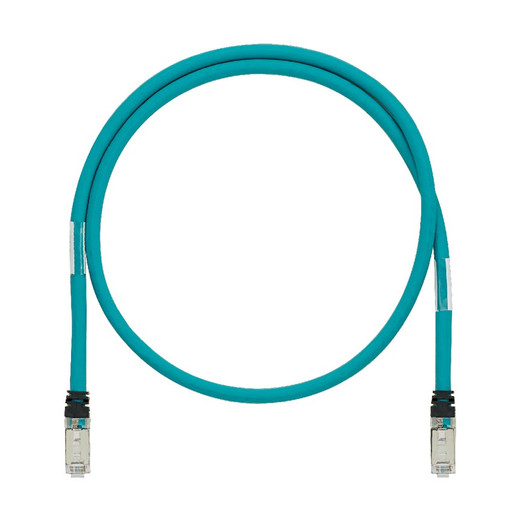

Panduit ISTPH6X0.6MTL IndustrialNet Cat 6A Shielded 600V Patch Cord
The Panduit ISTPH6X0.6MTL IndustrialNet patch cord solves a critical problem in industrial Ethernet deployments: running data alongside high-voltage power circuits. Rated for 600V applications, this 0.6-meter Cat 6A shielded patch cord is purpose-built for control panels, machine enclosures, and robotic C-track installations where Ethernet must share conduit or panel space with motor drives, VFDs, and power distribution. The teal jacket provides instant visual identification in dense multi-voltage environments, and the industrial bulkhead modular plugs lock securely in panel-mount jacks subjected to vibration and frequent mating cycles.
Key Features
- 600V UL AWM Style 2463 rated cable for shared power/data enclosures
- Cat 6A SF/UTP shielded construction supports 10GBASE-T to 100 meters
- 26 AWG stranded copper for high-flex robotic and C-track applications
- Industrial bulkhead modular plugs with strain relief for panel-mount durability
- Teal jacket for easy visual segregation in multi-voltage installations
- IEEE 802.3af/at PoE+ compliant for industrial cameras and access points
- Exceeds ANSI/TIA-568-C.2 Cat 6A and ISO 11801 Class Ea performance
Control panel integrators face a recurring challenge: industrial Ethernet equipment requires low-voltage data cabling, but must often be installed in the same enclosure as 480V AC drives, contactors, and bus bars. Standard commercial patch cords carry only 300V ratings and can fail UL 508A panel inspections when routed alongside high-voltage circuits. The ISTPH6X0.6MTL addresses this directly with UL AWM Style 2463 construction rated for 80°C at 600V—meeting NEC Article 725 Class 1 circuit requirements and allowing legal installation in shared wireways, cable trays, and backplanes. The SF/UTP shielded construction provides 360-degree EMI protection against motor noise and VFD harmonics that plague unshielded cables in these environments, ensuring stable Gigabit and 10-Gigabit Ethernet links even with adjacent PWM-controlled drives.
The 26 AWG stranded conductor construction differentiates this patch cord from solid-conductor panel cables. Stranded copper tolerates repeated flexing in robotic work cells, pick-and-place gantries, and cable carriers (C-track/E-chain systems) where solid conductors would work-harden and fracture. Panduit rates this cable for high-flex service, making it the correct choice for moving machine vision cameras, Ethernet/IP I/O blocks on robot arms, and PROFINET devices on conveyor systems. The industrial bulkhead plugs feature reinforced strain relief boots and latch mechanisms designed for the 500+ mating-cycle life typical of panel-mount RJ45 jacks, compared to the 50-cycle desktop patch cord standard. This matters in machines where technicians frequently disconnect Ethernet to swap servo drives or PLC modules during commissioning and troubleshooting.
The teal jacket color follows the industrial convention of segregating network infrastructure by voltage class and protocol. In a typical machine enclosure, you'll find black for power, orange for motion control (EtherCAT/SERCOS), yellow for safety I/O (CIP Safety), and teal or green for standard Ethernet/IP or PROFINET networks. This visual coding reduces mis-patching errors during installation and allows maintenance staff to instantly identify the correct cable bundle when tracing faults under time pressure. The 0.6-meter length is optimized for intra-panel connections—short enough to minimize cable dress and EMI pickup, long enough to route from a panel-mount Ethernet switch to distributed I/O blocks or HMI panels mounted on the door. Panduit ships these in 10-unit cartons, matching the typical port count of industrial Ethernet switches and allowing integrators to stock full panel kits.
This patch cord meets IEEE 802.3af (15.4W) and 802.3at (25.5W) PoE+ specifications, supporting powered devices common in industrial settings: hardened IP cameras for machine vision and perimeter monitoring, industrial wireless access points for AGV communication, and VoIP endpoints for shop-floor intercoms. The Cat 6A bandwidth headroom (500 MHz vs. Cat 5e's 100 MHz) future-proofs installations for 10GBASE-T uplinks between control panels and plant-floor aggregation switches—increasingly relevant as industrial vision systems and IIoT sensor networks push beyond Gigabit throughput. The cable exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea channel requirements when used with Panduit's Mini-Com industrial jacks, and carries UL 1863 and RoHS compliance for global machine export markets. For control panel builders working under UL 508A or IEC 61439 standards, this patch cord delivers the voltage rating, shielding performance, and mechanical durability that commercial IT-grade cables cannot provide.
