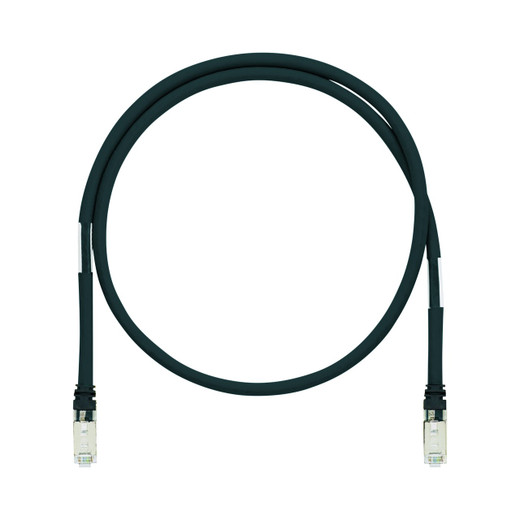

Panduit ISTPH6X2MBL Industrial Cat 6A Shielded 600V Patch Cord

The Panduit ISTPH6X2MBL IndustrialNet Cat 6A shielded patch cord addresses a critical challenge in industrial control panels and factory automation: running Gigabit Ethernet alongside high-voltage power cables. Rated for 600V panel applications, this 2-meter patch cord uses 26 AWG stranded SF/UTP construction with industrial bulkhead modular plugs, delivering Cat 6A performance in environments where standard IT-grade patch cords cannot operate safely. For integrators deploying Ethernet/IP networks, robotic systems, or control-panel-to-consolidation-point uplinks in manufacturing facilities, this cord provides voltage-rated separation, high-flex durability, and ANSI/TIA-568-C.2 Category 6A compliance in a single UL-listed assembly.

Key Features

• 600V rating for sharing panel space with high-voltage power cables in industrial control enclosures
• Cat 6A performance: 10GBASE-T capable, supports Gigabit Ethernet, Fast Ethernet, Ethernet/IP, and PROFINET
• SF/UTP shielded construction with 26 AWG stranded conductors for high-flex robotic and C-Track applications
• Industrial-grade bulkhead modular plugs with reinforced black strain relief boots
• 2-meter (6.6 ft) length in black CMR-rated jacket
• Exceeds ANSI/TIA-568-C.2 Cat 6A and ISO 11801 Class Ea channel requirements
• UL 1863 approved, UL AWM Style 2463 (80°C 600V) for NEC Article 725 Class 1 compliance
• IEEE 802.3af/at PoE+ compatible for powering industrial IP cameras and wireless APs up to 25.5W
• Factory-tested for insertion loss, return loss, NEXT, and DC resistance

Standard commercial patch cords are rated for low-voltage data circuits only; running them in industrial control panels where 480V or 600V power distribution shares the same enclosure violates electrical code and creates shock hazards. The ISTPH6X2MBL solves this with UL AWM Style 2463 cable rated for 80°C and 600V operation, allowing it to legally share panel space with motor drives, contactors, and power supplies per NEC Article 725. The SF/UTP (screened foiled/unshielded twisted pair) construction provides 360-degree shield coverage around the cable core, reducing electromagnetic interference from adjacent VFDs and servo drives while maintaining the 500 MHz bandwidth required for Cat 6A. The 26 AWG stranded copper conductors deliver the flexibility needed for tight-radius bends inside crowded panels and the fatigue resistance required for robotic arms, gantry systems, and cable carrier installations. Industrial bulkhead modular plugs feature reinforced strain relief boots and metal shells that withstand panel-mount vibration and repeated mating cycles—critical for machine-builder applications where connectors see mechanical stress during equipment transport, commissioning, and daily production cycles.

Industrial Ethernet protocols like Ethernet/IP, PROFINET, and Modbus TCP demand reliable gigabit connectivity in environments hostile to commercial IT equipment: metal enclosures with EMI from variable frequency drives, temperatures exceeding office limits, and constant vibration from CNC machines and packaging lines. Control engineers building Rockwell Automation CompactLogix, Siemens S7-1500, or Beckhoff TwinCAT systems need patch cords that meet NEC Article 725 Class 1 wiring requirements when installed in the same raceway or enclosure as 600V circuits; the ISTPH6X2MBL's voltage rating provides that compliance without requiring separate conduit runs or barrier separation. The 2-meter length is sized for typical panel-to-panel interconnects, HMI-to-PLC drops, or control-cabinet-to-machine-mounted I/O connections. High-flex applications—such as connecting Ethernet-enabled servo drives on pick-and-place robots or linking machine-vision cameras on automated inspection gantries—benefit from the stranded conductor construction, which handles millions of bend cycles without the conductor fractures that plague solid-conductor patch cords in dynamic installations. PoE+ compatibility (IEEE 802.3at) allows the cord to deliver up to 25.5W to industrial IP cameras, WLAN access points, or VoIP phones mounted inside hazardous-location enclosures, eliminating separate low-voltage power wiring and simplifying UL 508A panel certification.

Panduit's IndustrialNet line meets the full stack of industrial and commercial standards: ANSI/TIA-568-C.2 Category 6A for 10-Gigabit data performance, IEC 60603-7 for modular connector mechanical reliability, UL 1863 for communications cable safety, and UL AWM Style 2463 for appliance wiring material compliance in high-voltage shared environments. Unlike adapted commercial patch cords or field-terminated assemblies, factory-tested IndustrialNet cords ship with swept-frequency performance verification for insertion loss, return loss, NEXT, PSANEXT, and DC loop resistance—eliminating the troubleshooting headaches and intermittent link errors that come from hand-crimped connectors in mission-critical SCADA and control networks. For integrators bidding control-panel builds to UL 508A (Industrial Control Panels) or NFPA 79 (Electrical Standard for Industrial Machinery) requirements, the 600V rating and UL approval streamline panel certification, reduce the risk of inspection failures, and provide documentation traceability for end-user safety audits. When production-line uptime costs thousands per minute and electrical inspectors demand voltage-compliant wiring separation, the ISTPH6X2MBL delivers 10-Gigabit-ready Ethernet with the ratings, shielding, and flex-life that industrial automation demands.
