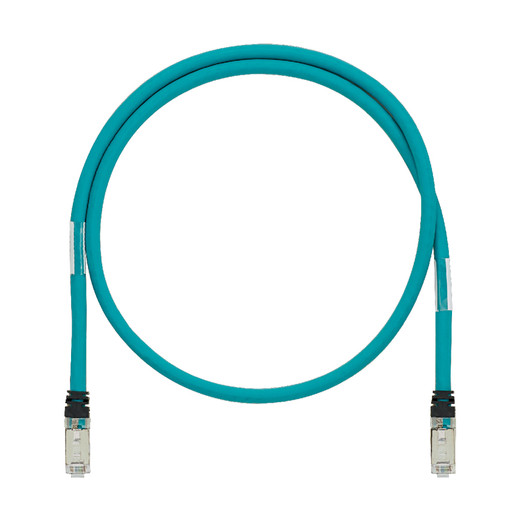

Panduit ISTPH6X15MTL IndustrialNet Cat 6A Shielded 600V Patch Cord, 15m, Teal

When you're wiring control panels or machine enclosures where 480V motor feeds share the same cable tray as your Ethernet/IP network, standard office-grade Cat 6A patch cords are a liability. The Panduit ISTPH6X15MTL IndustrialNet patch cord is UL-rated for 600V panel applications, giving you the voltage isolation and shielding integrity to run high-speed data alongside VFDs, contactors, and power distribution without crosstalk or EMI failures. Built on 26 AWG stranded SF/UTP cable with industrial bulkhead modular plugs, this 15-meter teal cord is spec'd for high-flex robotics, C-track cable carriers, and any deployment where standard patch cords crack their conductors after a few thousand bend cycles.

Key Features

• 600V UL AWM Style 2463 Rating: Approved for use in control panels and on-machine enclosures where data and high-voltage power cables occupy shared raceways, eliminating the need for separate conduit runs
• SF/UTP Shielded Construction: Overall foil shield with unshielded twisted pairs inside provides EMI rejection in electrically noisy factory floors without the termination complexity of individually-shielded pairs
• High-Flex Stranded 26 AWG Conductors: Designed for robotic arms, cable track systems, and moving gantries—bend-tested to UL Flex Life standards where solid-conductor patch cords fail in weeks
• Cat 6A Performance to 500 MHz: Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea channel requirements, supporting 10GBASE-T Ethernet for high-bandwidth machine vision, HMI, and SCADA uplinks
• IEEE 802.3at PoE+ Compliant: Delivers up to 25.5W to powered devices—IP cameras on production lines, industrial access points, VoIP intercoms—without separate power injection
• 15-Meter Length (49.2 ft): Purpose-built for medium-span runs—consolidation point to machine PLC, panel-to-panel crossovers, or floor switch to mezzanine-level I/O racks
• Teal Jacket Color-Coding: Visual identification for industrial Ethernet circuits per plant cabling standards, distinct from gray/blue office data or yellow fieldbus cables
• Industrial Bulkhead Modular Plugs with Strain Relief: Ruggedized RJ45 connectors with black overmolded boots resist pull-out in vibration-prone environments and protect the latch from impact damage

The 600V voltage rating is the critical differentiator here. Standard commercial patch cords are rated 300V maximum; when you mount them inside a UL 508A-compliant industrial control panel alongside 480V three-phase power feeds, you're technically violating NEC Article 725 separation requirements unless you install barriers or separate raceways. The ISTPH6X15MTL's UL AWM Style 2463 approval (80°C, 600V) means it's legally compliant for shared routing with Class 1 power circuits, cutting wire management cost and panel real estate. The SF/UTP shielding—foil-over-core, no individual pair shields—gives you the EMI rejection you need near VFDs and servo drives without the ground-loop headaches of F/FTP cable. Panduit's shield termination at the modular plug ties to chassis ground via the panel's bonded enclosure, not a separate drain wire you'd need to land on a terminal block. That's a 30-second install per drop instead of five minutes. The stranded 26 AWG conductors handle the flex duty: robotics integrators running six-axis arms or gantry loaders see solid-conductor patch cords fracture after 50,000–100,000 bend cycles; this cord is tested to UL's high-flex protocol and holds gigabit link integrity past a million cycles in cable track. The trade-off is slightly higher insertion loss than 23 AWG solid—Panduit publishes 2.0 dB per 100m at 250 MHz versus 1.8 dB for solid—but that's immaterial on a 15m run where your total channel budget has 30+ dB of margin.

Deployment context: this length hits the sweet spot for intra-panel and panel-to-panel links in mid-sized automation cells. You're running from a managed Ethernet switch in the main control cabinet to a remote I/O rack on the machine frame 12 meters away, or linking a PLC in the enclosure to an operator HMI mounted on a swing arm 8 meters out. The 15m length avoids the coil-management mess of a 25m cord and the "just barely reaches" risk of a 10m. Teal is Panduit's industrial Ethernet color; if you're following TIA-606-B or a plant-specific color standard, this visually separates your EtherNet/IP or PROFINET physical layer from yellow DeviceNet/AS-i fieldbus, gray office data, or orange fiber. On a retrofit where you're overlaying Ethernet I/O onto an existing hardwired panel, color-coding prevents accidental disconnects during troubleshooting. The industrial bulkhead plugs have a reinforced latch and a larger strain-relief boot than office-grade plugs—critical when the cord is zip-tied to a din rail and subjected to cabinet door slams or when maintenance techs yank the plug instead of pressing the latch. The SF/UTP topology also simplifies panel bonding: you're not hunting for a shield drain pigtail to land on a ground bar; the plug shell bonds the shield directly to the RJ45 jack's metal frame, which is itself bonded to the panel enclosure. That's one less loose wire to get pinched in a door hinge or snagged during conduit pulls.

Compliance-wise, this cord exceeds ANSI/TIA-568-C.2 Category 6A component specs and ISO 11801 Class Ea, meaning it's tested to 500 MHz with the alien crosstalk (PSANEXT/PSAACRF) margins that 10GBASE-T requires—relevant when you're future-proofing a machine network for 10-gig uplinks or deploying 4K machine-vision cameras that saturate a gigabit link. It meets IEEE 802.3af and 802.3at PoE+ power delivery specs, so you can drop 25.5 watts to an industrial PTZ camera or wireless AP without separate power wiring. The UL 1863 listing and UL AWM Style 2463 flex-life test certification mean it's engineered-to-order for exactly this use case—not a repurposed office cord with a marketing claim. RoHS compliance keeps you clean on EU exports if you're building machines for European plants. For integrators wiring Rockwell ControlLogix, Siemens S7-1500, or Beckhoff EtherCAT networks inside control cabinets, or running Ethernet/IP to remote I/O on packaging lines, this is the patch cord that passes UL 508A panel inspection, survives the vibration and EMI of the factory floor, and maintains 10-gig performance margin when you need it—without the custom-length lead time of a make-to-order assembly.
