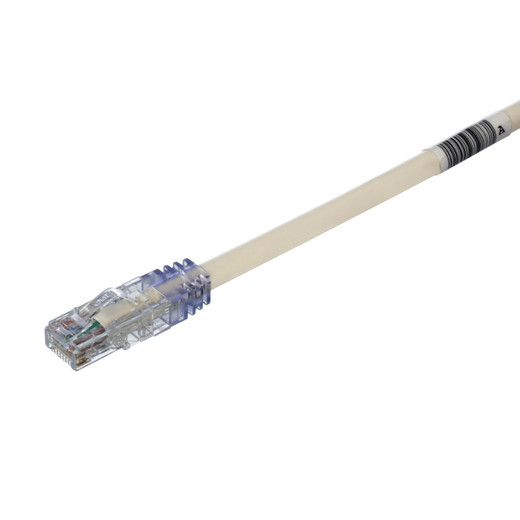

Panduit UTP6AX15M Cat 6A 15M Patch Cord

Panduit UTP6AX15M TX6A 10Gig Cat 6A UTP Patch Cord, 15-Meter

The Panduit UTP6AX15M delivers certified 10GBASE-T performance across 49-foot runs, engineered for datacenter server-to-switch links, surveillance NVR aggregation points, and high-density access-layer deployments where solid-conductor construction and PoE++ power delivery are non-negotiable. Built on Panduit's TX6A platform with 24 AWG solid U/UTP cable and high-performance modular plugs, this 15-meter patch cord exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA channel requirements while maintaining the 0.250" (6.4mm) diameter profile that simplifies pathway fill calculations in congested cable trays. The integrated RapidID barcode system enables one-scan asset tracking and port mapping via Panduit's RapidID software—eliminating manual documentation errors during MACs and audit cycles.

Key Features

• 15-meter (49.2 ft) length spans typical server-row depths, cabinet-to-cabinet runs, and perimeter camera home-runs without mid-span splicing
• Solid 24 AWG conductors provide superior alien crosstalk immunity and pair-balance stability across the full 500 MHz bandwidth compared to stranded-conductor field cords
• Tangle-free latch design prevents snag-induced tab breakage during dense-patch-panel installations and simplifies one-hand disconnect in cramped equipment racks
• Rated for 2,500 mating cycles—3× to 5× typical patch-cord durability—supporting frequent reconfigurations in dynamic IT and surveillance environments
• IEEE 802.3bt Type 3 and Type 4 PoE++ compliant, delivering up to 90W per port for multi-radio access points, PTZ cameras with heaters, and PoE-powered LED lighting controllers
• Pre-installed RapidID barcode eliminates label printing and enables mobile-scanner-driven port mapping, work-order verification, and compliance documentation
• Off-white jacket color matches standard datacenter and IDF aesthetics while maintaining visual distinction from blue Cat 5e or yellow fiber patch cords

Solid-conductor construction distinguishes this cord from stranded-wire patch cords typically used for short equipment connections. The 24 AWG solid copper pairs maintain tighter twist geometry and lower DC loop resistance (9.38Ω per 100m maximum), which directly improves PoE power-budget calculations on long runs—critical for 802.3bt Type 4 deployments where voltage drop limits usable link distance. Panduit's solid foil tape shielding within the cable jacket mitigates alien crosstalk (AXT) from adjacent cables in high-density bundles, a requirement for multi-channel 10GBASE-T operation in converged IT/AV racks where Cat 6A, fiber, and coax pathways share the same ladder rack. The high-performance modular plugs incorporate staggered-contact geometry and 50-microinch gold plating to maintain insertion loss below 0.3 dB and return loss above 20 dB at 500 MHz, preserving link margin for aging infrastructure and future 25GBASE-T upgrades. Each plug assembly undergoes automated visual inspection and electrical continuity verification before leaving Panduit's ISO 9001 facilities, reducing field-failure rates to under 0.1% per Panduit's published reliability data.

The 15-meter length addresses a persistent gap in structured cabling: standard 3-meter and 5-meter patch cords fall short of server-aisle cross-connects, while 30-meter bulk cables introduce excess slack and complicate pathway management. This cord provides the exact reach needed for top-of-rack switch connections to servers three or four racks away, perimeter PTZ camera home-runs from soffit-mounted enclosures to ground-floor IDFs, and horizontal cable extensions in retrofit projects where pulling new permanent link cable isn't feasible. The tangle-free latch—a molded strain relief that covers the RJ45 tab—prevents the tab-shear failures endemic to dense patch panels; installers can pull the cord from a 48-port panel without snagging adjacent connections, and the latch provides a tactile grip point for one-hand disconnect even when wearing gloves. RapidID integration extends beyond simple asset tagging: Panduit's RapidID software (available separately) generates visual patch-panel maps, auto-populates work orders with actual installed SKUs, and exports inventory data to DCIM platforms via CSV—turning a physical audit into a 15-minute scan-and-sync operation instead of a multi-day manual spreadsheet exercise.

Compliance certifications validate real-world performance requirements: exceeds ANSI/TIA-568.2-D Category 6A specifications for permanent link and channel performance, meets ISO 11801 Edition 2.2 Class EA requirements for international deployments, UL 1863 listed for communications cable safety, and RoHS compliant for EU and California installations. The CM (Communications) flammability rating suits general building installation in plenum-alternative pathways—metal conduit, surface raceway, and cable tray—where CMP plenum rating isn't mandated by local code. PoE++ Type 3 (60W) and Type 4 (90W) compliance covers the full installed base of high-power devices: Axis Q62-series PTZ cameras with IR and wiper assemblies (48W load), Aruba 650-series Wi-Fi 7 access points (60W), Cisco 9130 APs with multi-radio and Bluetooth (73W), and specialty devices like PoE-powered intercoms and access-control strikes. Deploy this cord in datacenter 10G copper server links, surveillance NVR uplink aggregation, high-bay warehouse WAP installations, and retrofit projects where fiber isn't cost-justified and Cat 6 won't meet future bandwidth demands.
