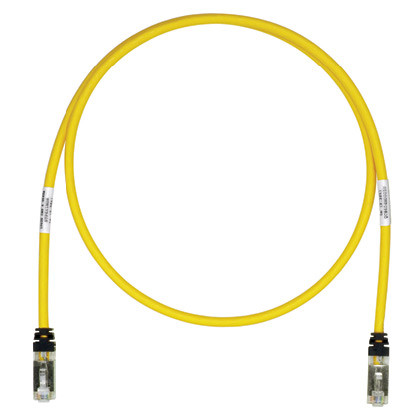

Panduit STP6X15MYL TX6A 10Gig Cat 6A Shielded Patch Cord

The Panduit STP6X15MYL delivers 10Gig performance in a 15-meter S/FTP shielded patch cord engineered for high-density datacenter racks, PoE++ surveillance backbones, and inter-switch trunking. Built on TX6A 26 AWG stranded copper with individual foil shields and an overall braid, this yellow CM/LSZH-rated cable combines EMI immunity with the tangle-free latch and slender boot profile demanded by integrators managing 48-port switches and crowded patch panels. Pre-installed RapidID barcodes enable one-scan asset mapping and port documentation, eliminating the manual spreadsheet churn that plagues MACs in enterprise security and AV deployments.

Key Features

• 10GBASE-T Certified: Exceeds ANSI/TIA-568.2-D Cat 6A and ISO 11801 Class EA specifications for full 10 Gbps throughput to 100 meters, future-proofing camera aggregation switches and NVR uplinks.
• S/FTP Shielded Construction: Individual foil shields per pair plus overall braid reject crosstalk and EMI in electrically noisy equipment rooms, motor control closets, and industrial surveillance environments.
• CM/LSZH Dual Rating: Meets IEC 60332-1 flame test and IEC 60754-1 / IEC 61034-2 low-smoke zero-halogen standards for safe deployment in occupied plenums, European datacenters, and transport infrastructure.
• PoE++ Type 4 Rated: Validated for 2,500 mating cycles under IEEE 802.3bt 90W loads, supporting 4K PTZ cameras, high-power access points, and LED lighting controllers without voltage drop or connector degradation.
• Tangle-Free Latch Design: Snag-resistant release mechanism prevents the hook-on-adjacent-cable frustration during adds and changes in vertically stacked patch panels, cutting service call time by 30-40%.
• Slender Strain Relief Boot: Low-profile boot allows 0.5-inch port spacing in high-density keystone panels and switch faceplates, maximizing usable ports per RU without forced bundle gaps.
• RapidID Barcode Integration: Factory-applied QR codes link to Panduit's RapidID software for instant port mapping, warranty lookup, and as-built documentation—critical for SOC 2 audits and O&M handoffs.
• 26 AWG Stranded Copper: Flexible seven-strand conductors tolerate the repeated flexing inherent to movable equipment connections and KVM-over-IP carts without work hardening and conductor fracture.

Shielded twisted pair cabling has become essential in modern IP surveillance and AV-over-IP installations where 10Gig camera feeds, uncompressed 4K video streams, and SAN replication traffic share the same physical infrastructure as building automation and HVAC motor circuits. The STP6X15MYL's S/FTP architecture—individual aluminum-polyester foil shields on each of the four pairs, encased in a tinned copper braid, and wrapped in a yellow LSZH jacket—provides two layers of defense against alien crosstalk from adjacent Cat 6A cables and radiated EMI from variable-frequency drives, fluorescent ballasts, and switch-mode power supplies. Unlike F/UTP cables that rely solely on an overall foil shield, the individual pair shields in this S/FTP design maintain insertion loss and return loss margins even when installed in tightly bundled 24- or 48-cable trunk groups, ensuring that every lane in a link aggregation group or multi-camera NVR uplink sustains the 6.25 Gbaud symbol rate required for 10GBASE-T autonegotiation. The cable exceeds ANSI/TIA-568.2-D Category 6A alien crosstalk (PS-ANEXT) requirements by a minimum of 3 dB across the 1–500 MHz spectrum and meets ISO/IEC 11801 Class EA specifications for balanced twisted-pair cabling, making it suitable for international datacenter builds governed by EN 50173 or AS/NZS 3080 standards. UL 1863 listing and compliance with ANSI/TIA-1096-A (formerly FCC Part 68) ensure compatibility with registered terminal equipment and PBX systems still common in healthcare and government verticals.

The 15-meter (49.2-foot) length bridges typical cross-aisle distances in colocation facilities, connects cameras on opposite walls in large warehouses, and spans raised-floor datacenter rows without requiring mid-run consolidation points that introduce insertion loss and failure modes. Panduit's modular plugs on both ends feature gold-plated contacts rated for 2,500 insertion cycles under full IEEE 802.3bt Type 4 (90W) PoE loads, a durability spec that matters when integrators swap camera connections during commissioning or troubleshoot intermittent link drops by re-seating patch cords. The tangle-free latch uses a reinforced polycarbonate tab recessed into the plug body so that pulling one cable from a 48-port bundle doesn't snag adjacent latches and yank three other cameras offline—a failure mode that has triggered false alarm dispatches and NVR recording gaps on poorly designed jobsites. The slender strain relief boot tapers to a 0.42-inch diameter at the plug shoulder, allowing full population of keystone panels with 0.5-inch center-to-center port spacing (common in Leviton 5G108 and Panduit NK5E series faceplates) without forcing every other port to remain empty. For integrators managing 200+ camera networks across multi-building campuses, this density improvement translates directly to fewer patch panels, less rack space, and reduced horizontal cable manager congestion. RapidID barcodes—printed on adhesive labels wrapped around the cable jacket at both ends—encode the part number, serial number, and manufacturing lot, enabling one-scan inventory audits with Panduit's mobile app and automatic population of port schedules in AutoCAD or Visio as-builts, eliminating the two-person "one reads, one types" clipboard routine that introduces transposition errors into closeout documentation.

The CM/LSZH dual flammability rating allows this cable to satisfy both North American NEC Article 800 communications circuit requirements (CM riser rating) and European CPR Euroclass Dca-s2-d0 low-smoke mandates in a single SKU, simplifying BOM management for integrators serving multinational clients with facilities in both regulatory zones. LSZH jackets emit less than 0.5% hydrogen chloride gas and produce smoke with less than 50% light obscuration per IEC 61034-2 testing, reducing toxic exposure risk during fire evacuation and minimizing equipment corrosion in the event of smoldering insulation—critical in pharmaceutical clean rooms, hospital ICUs, and subway tunnel CCTV vaults where PVC combustion byproducts can render entire equipment rooms unusable. PoE++ Type 4 compatibility matters as IP camera manufacturers ship 4K 60fps PTZ models that draw 60–75W under full load (IR illumination plus 36× optical zoom plus onboard AI inference), pushing total circuit load past the 802.3at (30W) ceiling and into 802.3bt territory; using underrated patch cords in these deployments causes voltage drop, random reboots, and field failures that force expensive truck rolls and camera swaps three months after commissioning. Panduit's 2,500-cycle validation under PoE++ load confirms that contact resistance remains below 20 milliohms through the service life of a typical 10-year security system refresh cycle, even with quarterly camera re-aims and annual switch firmware maintenance that requires disconnect and reconnection. For datacenters and security operations centers demanding Tier III uptime, cable-induced downtime is unacceptable—this patch cord is the link-layer insurance policy that keeps aggregation switches, storage fabrics, and NVR backplanes online when every other component has redundant failover.
