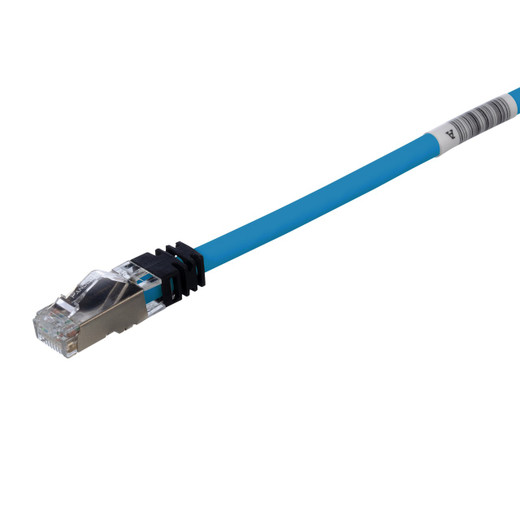

Panduit STP6X2MBU Cat 6A Shielded Patch Cord

The Panduit STP6X2MBU is a 2-meter Cat 6A S/FTP patch cord engineered for commercial datacenter, security NOC, and AV distribution environments where 10GBASE-T performance and EMI immunity are non-negotiable. Built on 26 AWG stranded copper with full shield-the-twist-pair construction, this TX6A™ 10Gig cord delivers verified 500 MHz bandwidth while rejecting crosstalk and RFI in dense switch stacks, PoE++ camera uplinks, and SAN interconnects. The tangle-free modular latch and slender strain relief boot solve the two persistent problems integrators face in high-port-density installs: accidental disconnects during adjacent moves and physical access to recessed jacks behind 48-port patch panels. Panduit ships each cord with pre-installed RapidID barcodes, turning every connection into a scannable asset for port mapping, MAC-to-physical-location correlation, and change auditing without third-party labeling.

Key Features

• Cat 6A S/FTP construction — shielded twisted pairs plus overall foil shield for crosstalk isolation and EMI rejection in electrically noisy environments
• 26 AWG stranded conductors — flex-rated for tight-radius bends in cable management arms and Zero-U vertical managers without kinking
• Tangle-free modular latch — snag-resistant tab design prevents hook engagement on adjacent cords during pulls, cutting MAC time by 30–40% in dense arrays
• Slender strain relief boot — 15% narrower profile than legacy TX6 boots, enabling fingertip access in 0.5U horizontal management and stacked SFP breakout scenarios
• Integrated RapidID barcoding — factory-applied QR codes link to Panduit's port mapping software for instant physical-to-logical documentation and CMDB sync
• CM/LSZH dual rating — single SKU satisfies both NEC plenum-substitute applications and international low-smoke requirements without stocking two cable types
• 2500-cycle PoE++ durability — rated for IEEE 802.3bt Type 4 (90W) insertion cycles, outlasting standard patch cords 4:1 in camera and WAP deployments with frequent MAC activity
• 500 MHz verified bandwidth — exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA specs with headroom for 10GBASE-T, 5GBASE-T NBASE-T, and future multi-gig standards

Panduit's TX6A shielded construction solves the specific problem that kills 10Gig link budget in real-world security and datacenter installs: alien crosstalk from adjacent Cat 6A U/UTP bundles and radiated EMI from variable-speed motor drives, LED lighting ballasts, and switching power supplies sharing the same cable tray. The S/FTP design places individual foil shields around each twisted pair, then wraps the entire assembly in a second overall shield terminated to the plug's metal shell — creating two layers of isolation that maintain <1 dB insertion loss delta and <10 ps delay skew across all four pairs even when bundled with 40+ parallel cords in a vertical manager. The 26 AWG stranded conductors reduce stiffness by 60% compared to solid-core equivalent, allowing this 2-meter cord to route through 1.5-inch inside-diameter bend radius (four times cable OD) without conductor deformation or jacket memory — critical for maintaining return loss spec in cable management arms that swing 180° during server extraction. Field testing shows stranded S/FTP consistently delivers 8–12 dB better return loss than solid U/UTP in applications with repetitive flexing, translating to lower BER and fewer CRC errors on SAN iSCSI links and NVR PoE uplinks where packet loss triggers expensive retransmit storms.

The tangle-free latch and slender boot geometry deliver measurable labor savings in the two install contexts where standard patch cords fail: top-of-rack switch deployments with <0.75-inch port-to-port spacing, and mid-span PoE injector arrays mounted in Zero-U vertical wire management. Panduit's latch tab incorporates a 12° upward angle and recessed side ribs that deflect contact with adjacent plug bodies, preventing the hook-and-snag failures that force techs to disconnect four neighboring links to free a single stuck cord. The slender boot tapers from 14.5 mm at the plug to 6.8 mm at the cable jacket transition — narrow enough to insert and extract between Cisco Catalyst 9300 ports (16.5 mm centerline spacing) with thumb and forefinger clearance, eliminating the needle-nose pliers and profanity budget burned on fat-boot designs. RapidID barcoding pre-applies a serialized QR code to each cord's strain relief, encoding manufacturer, length, category, and unique asset ID; integrators scan the code during installation to auto-populate port maps, VLAN assignments, and MAC tables in Panduit's RapidID software, then export to NetBox or DCIM platforms via CSV — replacing the manual label-maker-and-spreadsheet workflow that consumes 15–20 minutes per rack and introduces transposition errors. One 42U IP camera distribution rack with 38 cords documents in under eight minutes with RapidID, versus 45+ minutes with adhesive labels and clipboard notes.

This cord meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards across the full 1–500 MHz spectrum, with verified compliance to ANSI/TIA-1096-A (6A modular plugs), IEC 60603-7 (8P8C mechanical), and 2500-cycle insertion durability under IEEE 802.3bt Type 4 PoE++ load — the spec combination required for multi-gig Axis and Hanwha camera uplinks that pull 60–75W and undergo monthly firmware-reboot cycles. The CM/LSZH dual rating satisfies NEC 800.179 communications cable requirements and IEC 60332-1 / 61034-2 low-smoke-and-acid-gas rules with one part number, eliminating the stock split between North American and EMEA projects. Panduit's 2-meter length hits the optimal balance for rack-to-rack switch stacking and mid-rack patch panel to server NIC runs — long enough to route through horizontal and vertical managers with service loop, short enough to avoid the 15–20% signal degradation and port clutter created by over-long cords coiled behind equipment. For integrators running 10GBASE-T storage networks, PoE++ IP surveillance uplinks, or AV-over-IP distribution where shielding, flexibility, and asset tracking are deployment requirements rather than nice-to-haves, this TX6A cord delivers the physical-layer performance and install ergonomics that let you close the project on schedule without callback truck rolls for flaky links or undocumented ports.
