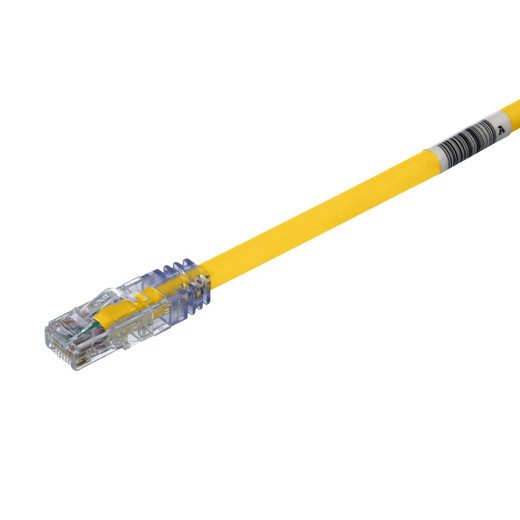

Panduit UTP6AX15MYL Cat 6A UTP Patch Cord 15M Yellow

Panduit UTP6AX15MYL TX6A 10Gig Cat 6A UTP Patch Cord - 15M Yellow

The Panduit TX6A UTP6AX15MYL delivers wire-speed 10 Gb/s transmission over 15 meters in high-density enterprise and datacenter environments where alien crosstalk is a primary concern. This Cat 6A U/UTP patch cord combines 24 AWG solid copper conductors, solid foil tape shielding, and high-performance modular plugs rated for 2500 cycles to ensure reliable performance in PoE++ and 10GBASE-T deployments. Factory-installed RapidID barcodes enable rapid port mapping and infrastructure documentation, while the tangle-free latch design streamlines moves, adds, and changes in crowded patch fields.

Key Features

• 10 Gb/s transmission performance over 15-meter (49.2 ft) runs
• U/UTP construction with solid foil tape to limit alien crosstalk in bundled installations
• 24 AWG solid copper conductors for consistent impedance and minimal insertion loss
• RapidID pre-installed barcodes for seamless port mapping with Panduit RapidID software
• Tangle-free latch prevents snags during cable pulls and ensures fast, one-handed release
• PoE++ compatible — supports IEEE 802.3af, 802.3at, and 802.3bt type 3 (60W) and type 4 (100W) power delivery
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA transmission requirements
• 0.250-inch (6.4 mm) overall diameter optimized for high-density patch panels and cable managers
• Modular plugs rated for 2500 mating cycles under IEEE 802.3af/at/bt conditions
• Yellow jacket for color-coded network segmentation (guest VLANs, PoE zones, failover links)

The TX6A patch cord's U/UTP construction uses unshielded twisted-pair cable reinforced with solid foil tape between the pairs and outer jacket. This approach provides alien crosstalk mitigation without the grounding and termination complexity of fully shielded F/UTP or S/FTP designs — critical in high-density racks where 10GBASE-T links run in parallel bundles. The 24 AWG solid conductors maintain tight impedance tolerance across the 15-meter length, minimizing return loss and supporting the 500 MHz bandwidth required for full Cat 6A performance. Each modular plug is factory-terminated with precision alignment to ensure sub-0.3 dB insertion loss and better than -40 dB return loss at all frequencies, verified during production to exceed ANSI/TIA-568.2-D transmission limits. The 0.250-inch cable diameter strikes a balance between mechanical durability and bend radius, allowing tight routing through vertical cable managers and 1U horizontal organizers without exceeding the 4× minimum bend radius that would degrade pair geometry.

In deployment, the 15-meter length covers typical horizontal patch scenarios — datacenter rack-to-rack interconnects within a row, top-of-rack switch to server connections, and IDF-to-office runs in structured cabling environments. The factory-installed RapidID barcode integrates with Panduit's RapidID port mapping software (sold separately), enabling installers to scan the cable label at each end and auto-populate as-built documentation, patch schedules, and DCIM databases — eliminating manual spreadsheet entry and reducing provisioning errors during cutovers. The tangle-free latch uses a low-profile boot geometry that prevents the release tab from snagging on adjacent cables during insertion or removal, a persistent problem in fully populated 48-port patch panels where traditional snagless boots catch on neighboring boots. This design reduces MAC cycle time by 30–40% in dense environments and minimizes the risk of accidental disconnects when adjacent ports are serviced. Yellow jacketing provides instant visual identification for network segmentation schemes — common applications include guest Wi-Fi uplinks, PoE camera zones, out-of-band management networks, and failover/redundant links in dual-homed server configurations.

The UTP6AX15MYL meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA transmission requirements, ensuring full interoperability with 10GBASE-T Ethernet over the entire 15-meter length. It complies with ANSI/TIA-1096-A (formerly FCC Part 68) modular plug standards and IEC 60603-7 for international deployments. The modular plugs are specifically rated for 2500 insertion/extraction cycles under IEEE 802.3af (15.4W PoE), 802.3at (30W PoE+), 802.3bt type 3 (60W PoE++), and type 4 (100W PoE++) power delivery conditions, with contact resistance and temperature rise tested to UL 1863 limits. This makes the patch cord suitable for high-power PoE applications including PTZ cameras, LED lighting controllers, 802.11ax Wi-Fi 6E access points, and VoIP phones with video displays — all of which require reliable power and data delivery without field retermination. The product is RoHS compliant and rated CM (Communications) for in-wall and plenum-return installations where local codes permit CM-rated cable. For mission-critical 10 Gb/s infrastructure in enterprise networks, datacenters, and surveillance headends, the TX6A patch cord provides verifiable alien crosstalk performance, field-proven PoE++ power handling, and integrated documentation capability that together reduce installation cost and long-term operational risk.
