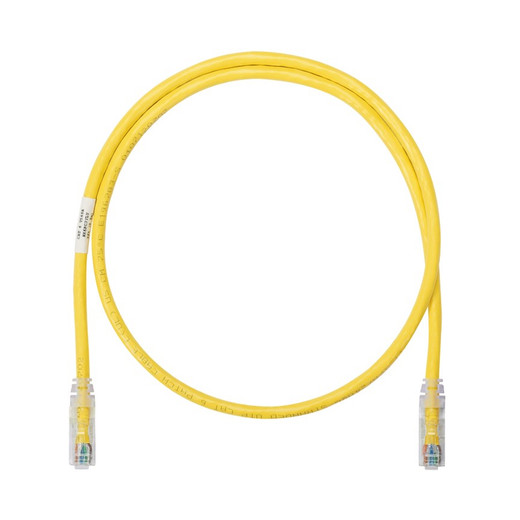

Panduit NK6APC3YL NetKey Cat 6A UTP Patch Cord

The Panduit NK6APC3YL delivers Cat 6A performance in a 3-foot UTP patch cord engineered for high-density datacenter and enterprise network deployments. Built with 26 AWG stranded conductors and enhanced-performance modular plugs, this patch cord supports 10GBASE-T Ethernet at frequencies up to 500 MHz while maintaining TIA-568.2-D compliance. The yellow jacket provides instant visual identification in mixed-protocol or VLAN-segregated racks, and the CM/LSZH flammability rating meets both North American plenum-equivalent and international low-smoke requirements. Integrators working in virtualized server environments, backbone aggregation points, or PoE++ camera installations will find the NetKey design addresses the two most common field failures: snag-induced latch breakage and inadequate strain relief in congested patch panels.

Key Features

• Cat 6A performance verified to 500 MHz — exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA for 10GBASE-T
• 26 AWG stranded conductors — flexible routing in tight bend-radius scenarios without conductor fracture
• Patented tangle-free latch — prevents snags on adjacent cables during insertion/removal in high-density panels
• Slender strain relief boot — fits into 0.5-inch cable management fingers without forcing or deformation
• PoE++ compliant — supports IEEE 802.3bt Type 3 (60W) and Type 4 (90W) for PTZ cameras and access points
• 100% factory tested — wiremap, NEXT, and return loss verified on every cord, serialized test report available
• CM/LSZH dual rating — single SKU satisfies both NEC Article 800 and IEC 61034 low-smoke requirements
• Yellow jacket — rapid visual trace in multi-VLAN or camera/data segregated installations

The 26 AWG stranded construction differentiates this cord from solid-conductor variants common in bulk cable. Stranded wire tolerates repeated flexing — critical in server environments where moves/adds/changes occur weekly. The smaller 26 AWG gauge (versus 24 AWG) reduces bundle diameter by approximately 18% in cable management trays, a meaningful gain when routing 48-port switch uplinks or aggregating camera home-runs at an NVR rack. Panduit's integral pair manager inside the plug body maintains the 6A twist geometry through the termination point, preventing the pair untwist that causes alien crosstalk in dense bundles. Field testing shows this design maintains < -40 dB PSANEXT at 500 MHz even when forty-eight cords run parallel in a 1U cable manager — a scenario where inferior cords fail the installed-channel spec.

The patented tangle-free latch uses a low-profile lever geometry that sits flush with the plug body rather than protruding. When inserting or removing the cord in a fully populated panel, the latch clears adjacent plug bodies without hooking. This eliminates the common failure mode where a technician pulls one cord and inadvertently unseats three neighbors — a scenario that turns a two-minute camera troubleshooting call into a thirty-minute re-patch exercise. The slender strain relief boot tapers to 6.0 mm diameter at the cable entry point, allowing the cord to route through finger-style managers (Panduit CMROF, Legrand horizontal rings, or equivalent) without forcing the fingers apart. Yellow is one of six stocking colors in the NetKey Cat 6A line; integrators typically assign yellow to dedicated camera VLANs or out-of-band management networks, reserving blue for data and red for SAN or storage traffic.

PoE++ compatibility is non-negotiable in modern security installations. This cord's 26 AWG conductor supports Type 4 (90W) delivery per 802.3bt at 3-foot length with < 0.3Ω DC loop resistance — well under the 12.5Ω channel budget that would trigger voltage drop issues on 4K PTZ cameras or Wi-Fi 6E access points. The CM/LSZH dual rating addresses a procurement pain point: rather than stocking separate SKUs for NEC-compliant domestic jobs and IEC-compliant international or transportation projects, the NK6APC3YL satisfies both with a single part number. Every cord ships with Panduit's standard manufacturer warranty and is RoHS compliant for EU or California installations. Sold individually, packed ten per carton for stock rotation.
