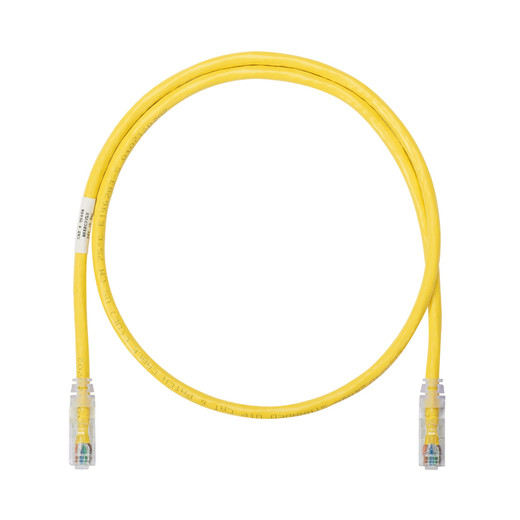

Panduit NK6APC15YL Cat 6A UTP Patch Cord 15ft Yellow

Panduit NK6APC15YL NetKey Cat 6A UTP Patch Cord - 15 ft - Yellow

The Panduit NK6APC15YL delivers 10GBASE-T performance in a 26 AWG stranded form factor engineered for high-density data center and enterprise network deployments. Its patented tangle-free latch design eliminates the snag-and-break failures common in densely populated patch panels, while the slender strain relief boot provides unrestricted access in switch fabrics where every RU matters. Exceeding ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications across the full 1-500 MHz spectrum, this 15-foot jumper supports PoE++ Type 3 and Type 4 power delivery—critical for IP camera backhaul, wireless infrastructure, and access control panels that demand both 10 Gbps throughput and up to 90W at the endpoint.

Key Features

• Cat 6A performance to 500 MHz for 10GBASE-T Ethernet and high-speed storage networks
• Patented tangle-free latch prevents snags during installation and reduces breakage on frequent moves, adds, and changes
• 26 AWG stranded copper construction provides superior flexibility compared to solid-core equivalents
• Slender strain relief boot design enables termination in high-density patch panels and switch fabrics
• Full IEEE 802.3bt Type 3/4 PoE++ support delivers up to 90W for power-hungry endpoints
• CM/LSZH dual fire rating meets plenum-equivalent safety requirements in mixed cable pathways
• Universal T568A/T568B wiring compatibility eliminates deployment guesswork in multi-vendor environments
• Enhanced performance modular plugs maintain channel insertion loss budget across 100-meter permanent link
• Yellow jacket enables instant visual circuit identification during troubleshooting and MAC operations

Constructed with 26 AWG stranded unshielded twisted pair (U/UTP) conductors, the NK6APC15YL balances mechanical flexibility with electrical performance—stranded geometry tolerates the repeated flexing inherent in patch cord service life, while Panduit's enhanced performance plugs maintain the 500 MHz channel bandwidth required for 10GBASE-T signaling. The cable exceeds Category 6A insertion loss, return loss, and alien crosstalk specifications at every frequency point from 1 to 500 MHz, providing margin against real-world installation variables like bundle stress and temperature cycling. Each modular plug is wired to support both T568A and T568B termination schemes, so the same cord works across Cisco, Juniper, and standards-compliant structured cabling systems without rewiring.

In data center server virtualization and backbone aggregation deployments, the tangle-free latch solves a recurring operational problem: traditional snagless boots catch on adjacent cables during extraction, breaking the release tab and rendering the cord unusable. Panduit's design moves the actuation point to a protected position, so you can pull cords from 48-port switch fabrics without collateral damage to neighboring circuits. The slender 6.2 mm strain relief boot occupies minimal panel real estate—critical when terminating 10G uplinks in 1U switches where port density leaves less than 0.5" between RJ45 jacks. For IP camera and wireless AP installations, the cord's full PoE++ Type 3 (60W) and Type 4 (90W) compliance means a single Cat 6A cable delivers both 10 Gbps backhaul and power to endpoints like 4K PTZ cameras, Wi-Fi 6E access points, and multi-door access control panels—eliminating the need for separate AC drops and reducing installation labor by 40% on typical projects.

The NK6APC15YL carries UL 1863 listing and meets ANSI/TIA-1096-A telecommunication circuit protection requirements, ensuring compatibility with enterprise PBX, nurse call, and building management systems that integrate over structured cabling. Its CM/LSZH (Communications Riser / Low Smoke Zero Halogen) dual fire rating allows deployment in mixed-environment cable pathways—you can run the same cord through LSZH-mandated equipment rooms and CM-rated vertical risers without switching cable types mid-route. RoHS compliance ensures the product meets EU and California material restrictions for lead, mercury, and halogenated flame retardants. The 15-foot length is optimized for rack-to-rack connections within the same row or short cross-connects between adjacent wiring closets, and the yellow jacket provides instant visual confirmation during circuit tracing in multi-vendor deployments where color-coding distinguishes production, management, and out-of-band networks. Panduit's quality control process validates every production lot against TIA-568.2-D channel performance, so this patch cord delivers the same insertion loss and crosstalk margin as the permanent link it terminates—no performance surprises when you commission a 10G SAN fabric or aggregate 40 Gbps QSFP+ breakout connections.
